Installing the upper bezel
To install the upper bezel, complete the following steps.
1. Insert the two right-side tabs on the upper bezel into the corresponding holes on
the right side of the chassis.

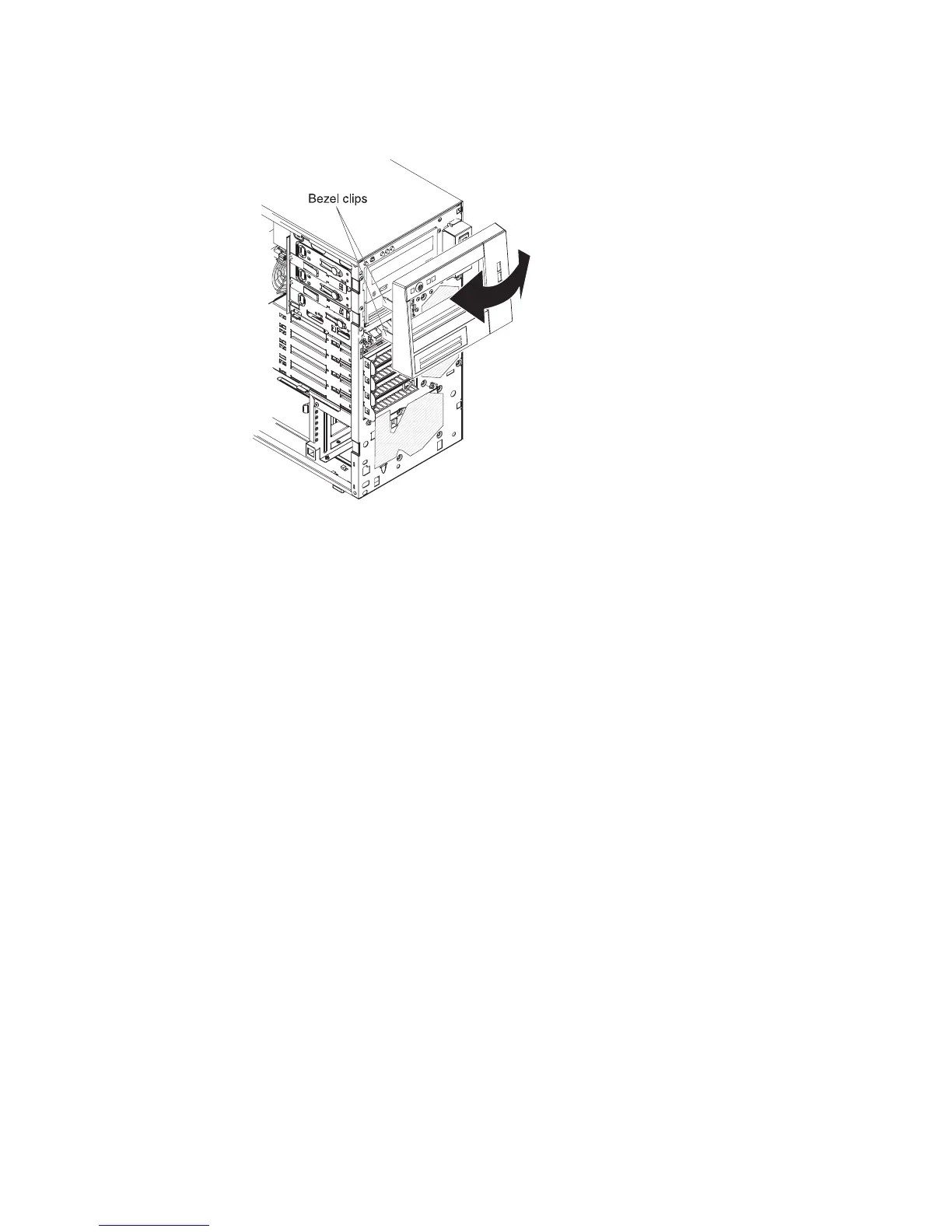

2. Rotate the upper bezel to the left side of the chassis and press the bezel clips
onto the corresponding indentations on the left side of the chassis.
3. Install the lower bezel (see “Installing the lower bezel” on page 80).
4. Install the side cover (see “Installing the side cover” on page 78).
5. Lock the side cover.
6. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
82 System x3200 Types 4362 and 4363: Problem Determination and Service Guide
