Removing the front system fan assembly
This procedure applies only to server models that have a front system fan
assembly.
Attention:
v Replace a failed fan within 48 hours.
v To ensure proper cooling and airflow, do not operate the server for more than 30
minutes with the side cover removed.
To
remove the front system fan assembly, complete the following steps.

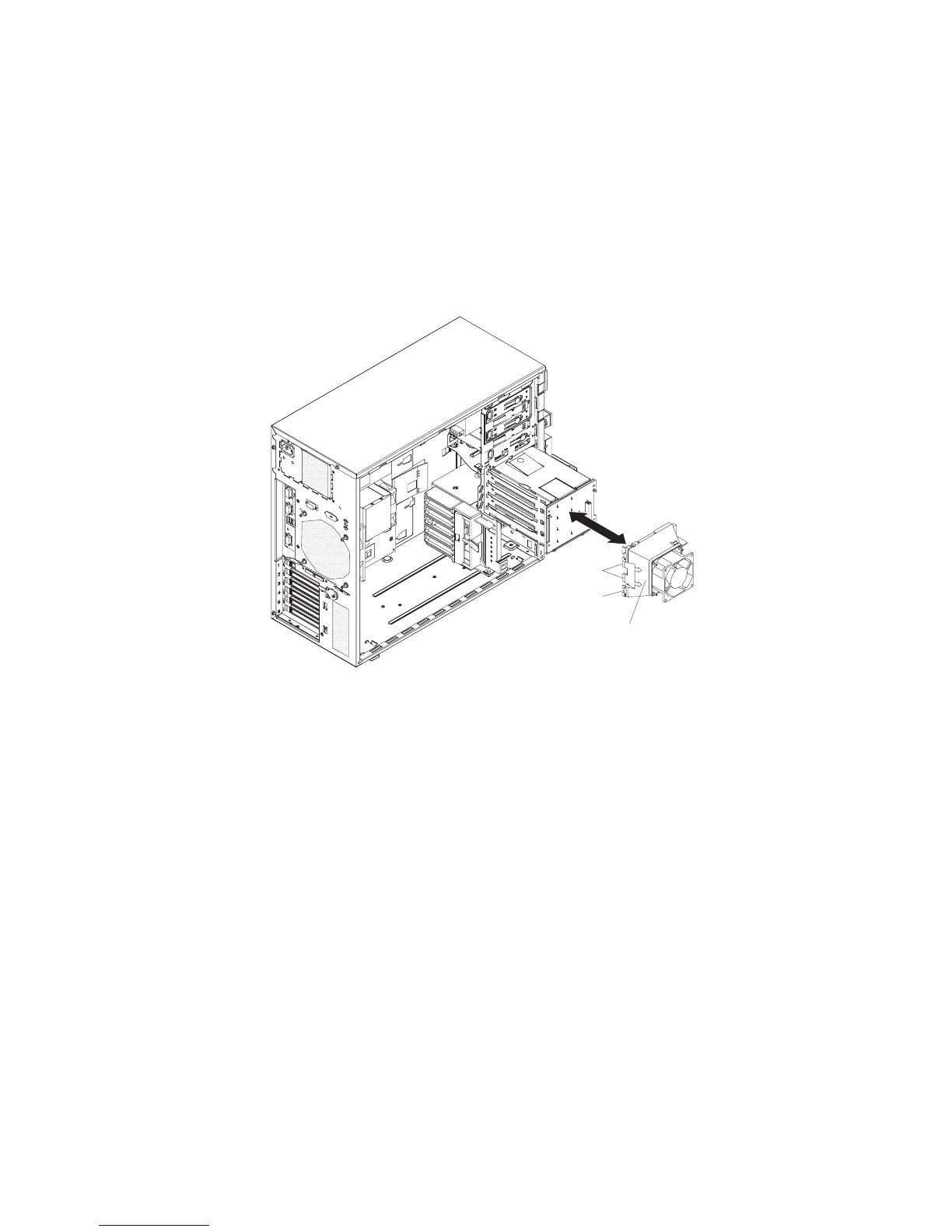

Release tabs
Front fan assembly
Slot
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 73.
2. Turn off the server and all attached devices; then, disconnect all power cords
and external cables.
3. Unlock and remove the side cover (see “Removing the side cover” on page 77).
4. Disconnect the fan assembly cable from the system board, making a note of
where the cable was connected for later installation.
5. Press and hold the drive cage release tab; then, rotate the drive cage out of the
chassis until the retaining tab on top of the cage locks into place.
6. Pull out on the front system fan assembly release tabs; then, rotate the fan
assembly away from the drive cage slightly.
7. Remove the power cables from the slot on the fan assembly; then, rotate the
fan assembly away from the drive cage and remove the fan assembly from the
drive cage.
8. If you are instructed to return the fan assembly, follow all packaging instructions,
and use any packaging materials for shipping that are supplied to you.
Chapter 4. Removing and replacing server components 107
