Removing the lower bezel
When your work with some devices, such as the drives in bays 4 through 7, you
must first remove the lower bezel to access the devices.
To remove the lower bezel, complete the following steps.
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 73.
2. If you are replacing a non-hot-swap component, turn off the server and all
attached devices; then, disconnect all power cords and external cables.
3. Unlock the side cover.
Note: You do not have to remove the side cover to remove the lower bezel.

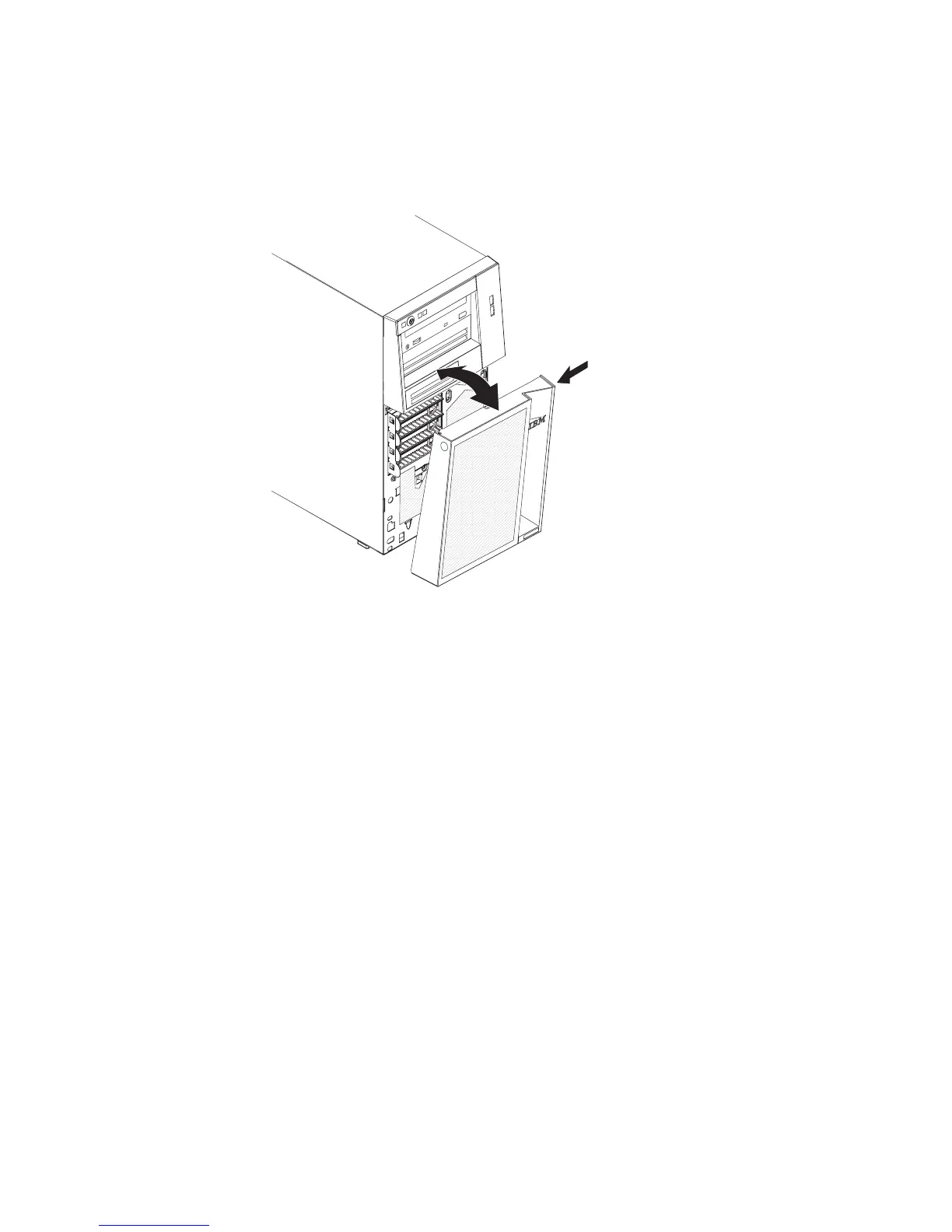

4. Press the round blue release button on the right side of the lower bezel and tilt
the lower bezel forward to disengage and remove it from the chassis.
5. If you are instructed to return the lower bezel, follow all packaging instructions,
and use any packaging materials for shipping that are supplied to you.
Chapter 4. Removing and replacing server components 79
