Installing the simple-swap backplate
This procedure applies only to server models that have a simple-swap backplate
installed on the back of the hard disk drive cage.
To install the simple-swap backplate, complete the following steps.

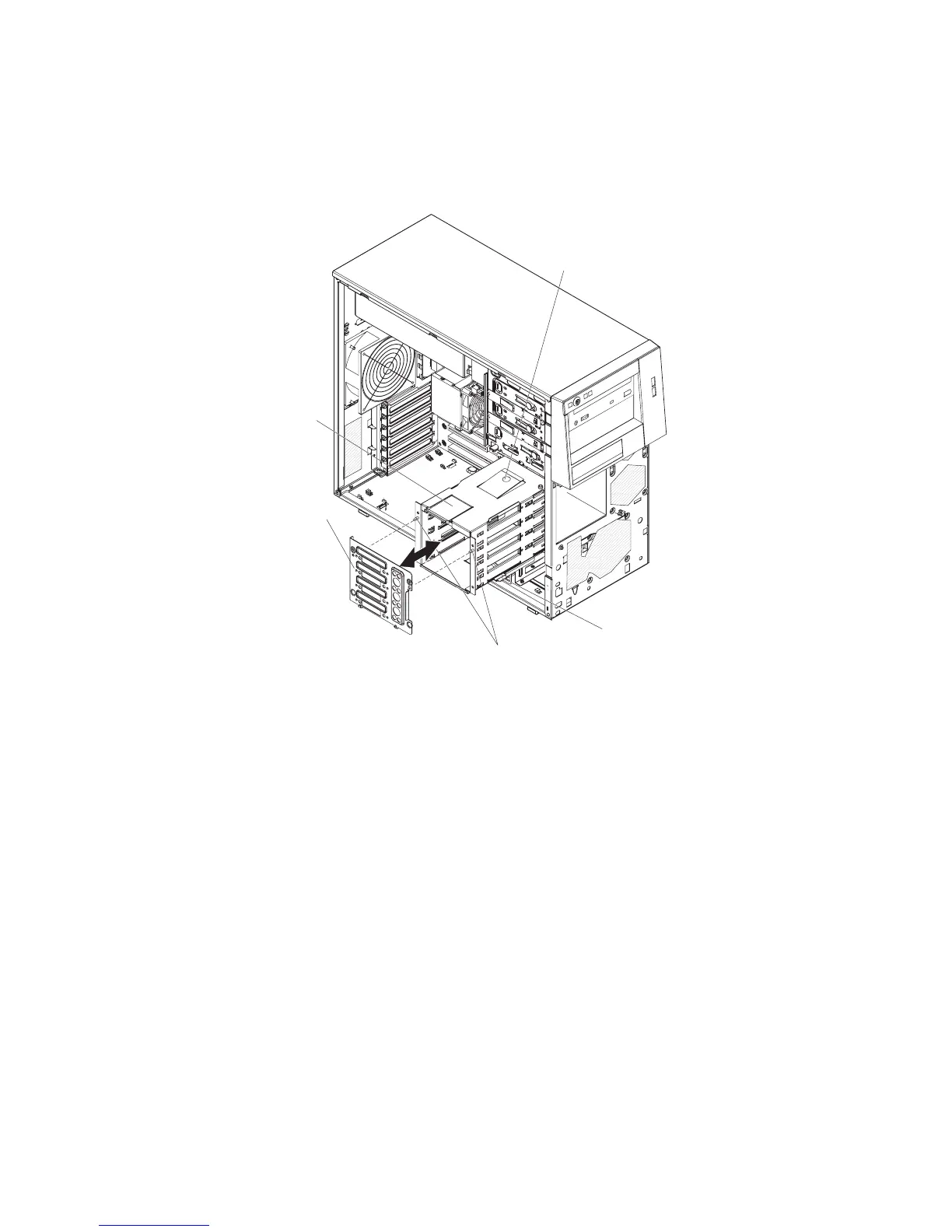

Retaining tab
Drive cage
release tab
Retaining
latch
Locating pins
Simple-swap
backplate
1. Position the bottom edge of the simple-swap backplate in the lower lip of the
drive cage.
2. Tilt the top of the simple-swap backplate toward the drive cage and over the
locating pins until the retaining latch is engaged.
3. Press and hold the retaining tab on top of the cage; then, rotate the drive cage
into the chassis until it locks into place.
4. Connect the signal cables to the system board (see “System-board internal
connectors” on page 9 for the location of the Serial ATA drive connectors).
5. Connect the power cables to the simple-swap backplate.
6. Install the front fan assembly on the hard disk drive cage (see “Installing the
front system fan assembly” on page 108).
7. Install the simple-swap hard disk drives that were removed from the hard disk
drive cage (see “Installing a simple-swap hard disk drive” on page 97).
8. Install the lower bezel (see “Installing the lower bezel” on page 80).
9. Install the side cover (see “Installing the side cover” on page 78).
10. Lock the side cover if it was unlocked during removal.
11. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
Removing the SAS/SATA hard disk drive backplane
This procedure applies only to server models that have a SAS/SATA hard disk drive
backplane installed on the back of the hard disk drive cage.
110 System x3200 Types 4362 and 4363: Problem Determination and Service Guide
