IBM System x3200 User Manual

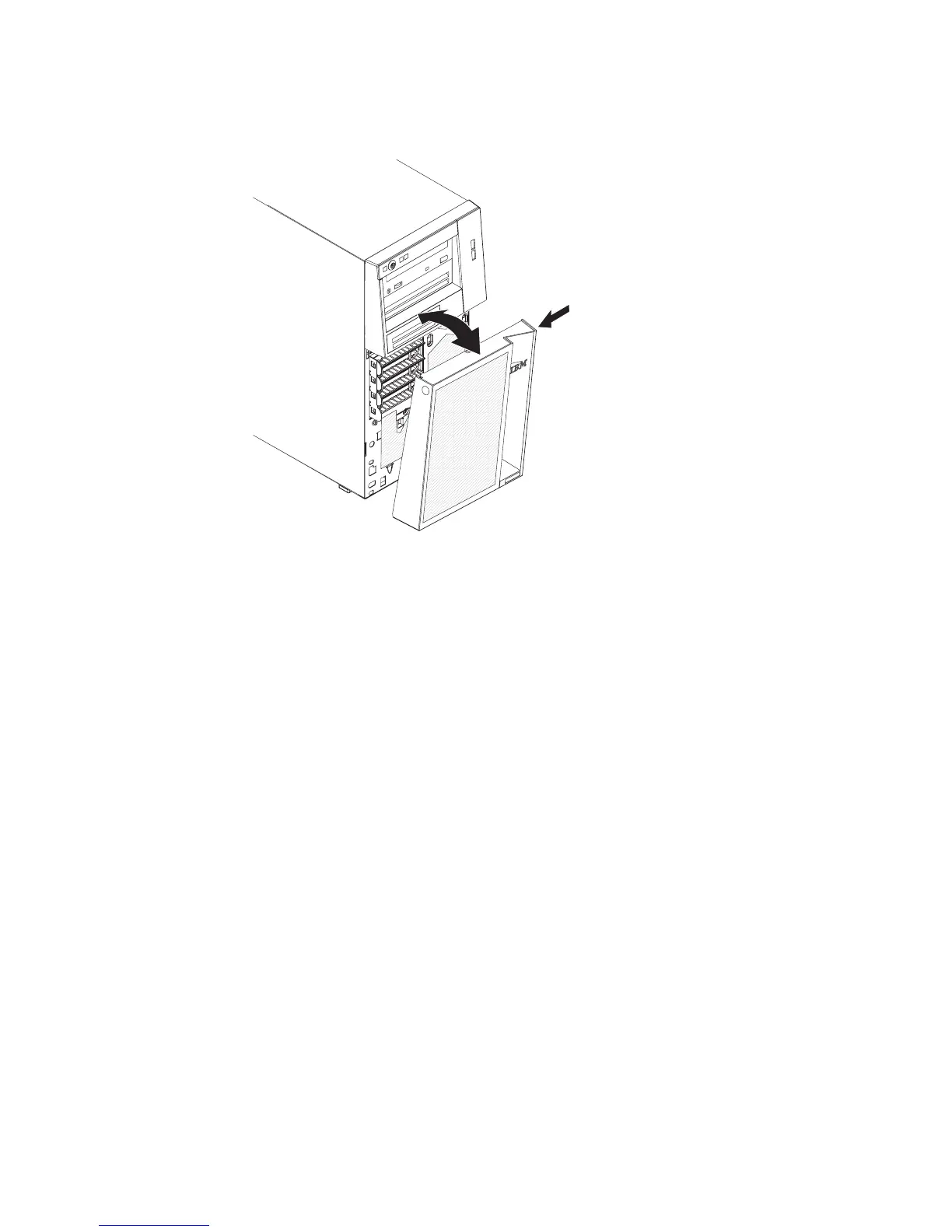

Installing the lower bezel
To install the lower bezel, complete the following steps.
1. Insert the two bottom tabs on the lower bezel into the corresponding holes in
the front of the chassis.
2. Press the top of the lower bezel into position on the chassis until it locks
securely into place.
3. Lock the side cover.
4. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
80 System x3200 Types 4362 and 4363: Problem Determination and Service Guide

IBM System x3200 Specifications

General

Form Factor	Tower
Network	Integrated Gigabit Ethernet
Processor	Intel Xeon 3000 sequence, Intel Pentium Dual-Core processor, Intel Celeron processor
Processor Cores	Dual-Core
Chipset	Intel 3000
Memory	Up to 8GB DDR2
Memory Slots	4
Storage	SATA HDD
RAID Support	RAID 0, 1
Drive Bays	4 internal 3.5-inch
