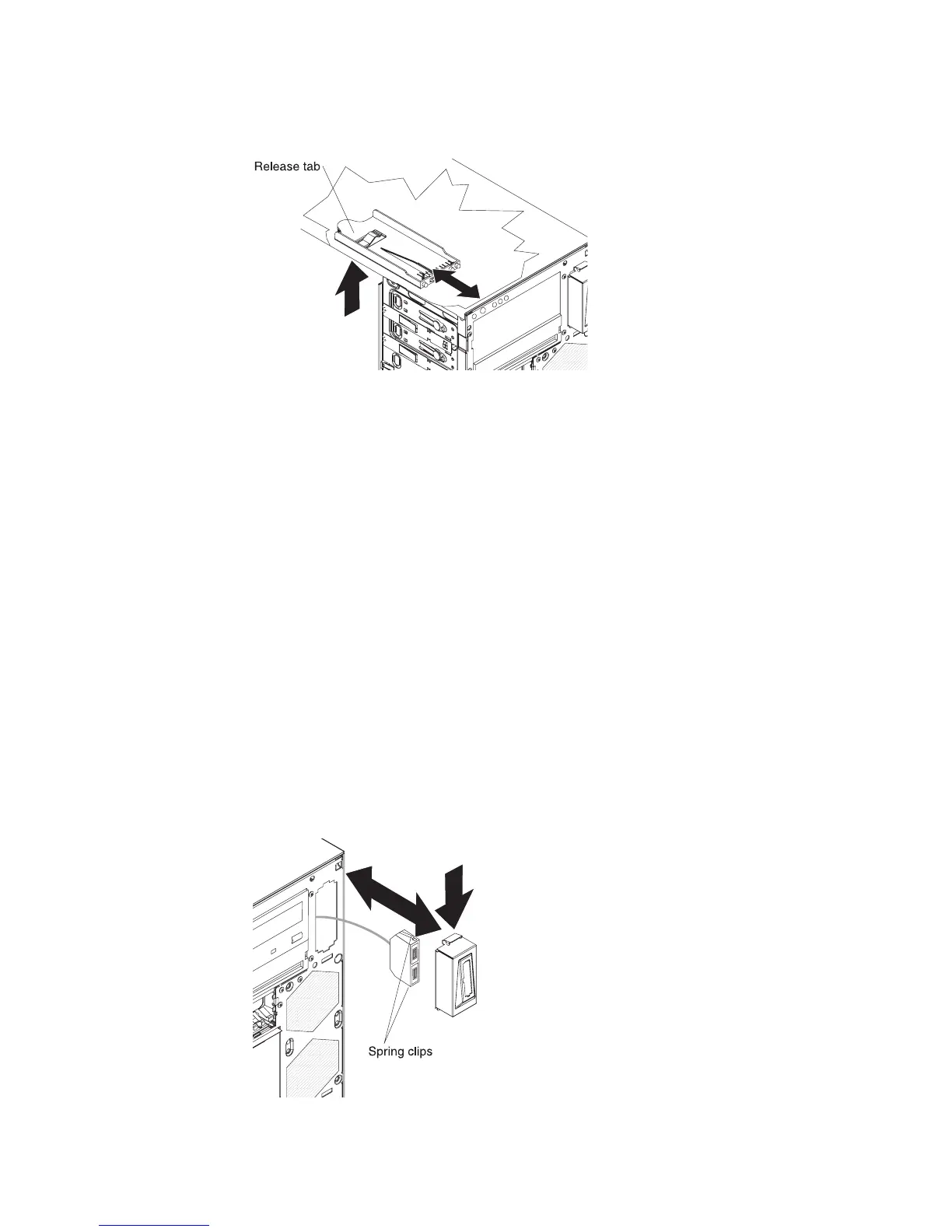

Installing the front-panel assembly
To install the front-panel assembly, complete the following steps.
1. Position the front end of the front-panel assembly in the channel above drive
bay 1 on the left side of the chassis.
2. Push the front-panel assembly toward the front of the chassis until it clicks into
place.
3. Reroute and connect the front-panel assembly cable to the system board (see
“System-board internal connectors” on page 9 for the location of the
front-panel connector).
4. If the server has hot-swap power supplies, install the power-supply cage and
the power supplies (see “Installing the hot-swap power supply cage” on page
117).
5. Push the drives in bay 1 and bay 2 into the drive bays (see “Installing a CD or
DVD drive” on page 88 for more information).
6. Install the upper bezel (see “Installing the upper bezel” on page 82).
7. Install the lower bezel (see “Installing the lower bezel” on page 80).
8. Install the side cover (see “Installing the side cover” on page 78).
9. Lock the side cover if it was unlocked during removal.
10. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
Removing the front USB connector assembly
To remove the front USB connector assembly, complete the following steps.
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 73.
114 System x3200 Types 4362 and 4363: Problem Determination and Service Guide
