Installing a hot-swap power supply
This procedure applies only to server models that have hot-swap power supplies.
See “Installing a non-hot-swap power supply” on page 122 for information about the
installation of a non-hot-swap power supply.
To install a hot-swap power supply, complete the following steps.

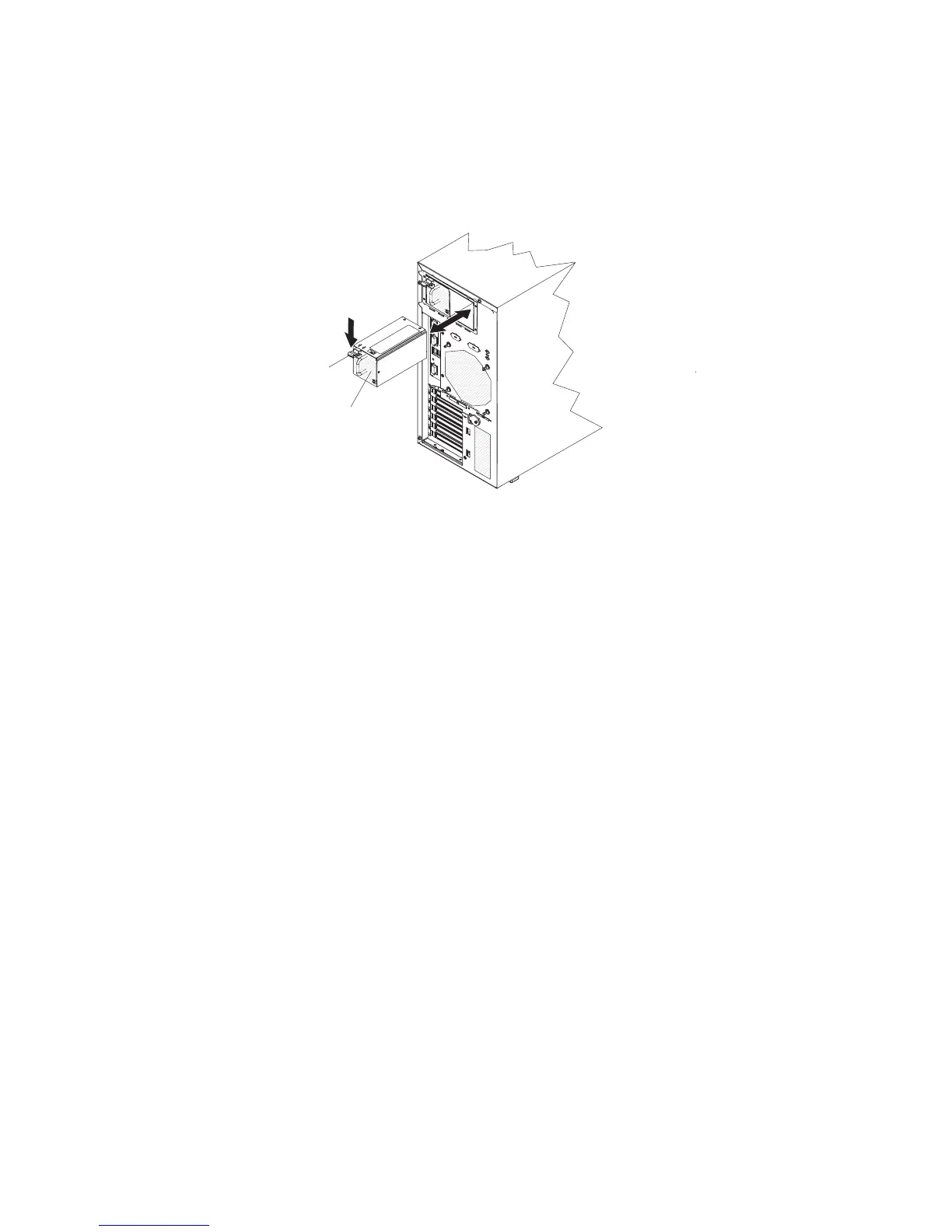

Hot-swap power
supply
Release lever
1. Place the power supply into the bay guides.
2. Using the handle, push the power supply toward the front of the chassis until it
locks into place.
3. Connect one end of the power cord into the connector on the back of the power
supply and connect the other end of the power cord into a properly grounded
electrical outlet.
4. Make sure that both the ac and dc power LEDs on the rear of the power supply
are lit, indicating that the power supply is operating correctly.
100 System x3200 Types 4362 and 4363: Problem Determination and Service Guide
