Installing the SAS/SATA hard disk drive backplane
This procedure applies only to server models that have a SAS/SATA hard disk drive
backplane installed on the back of the hard disk drive cage.
To install the hard disk drive backplane, complete the following steps.

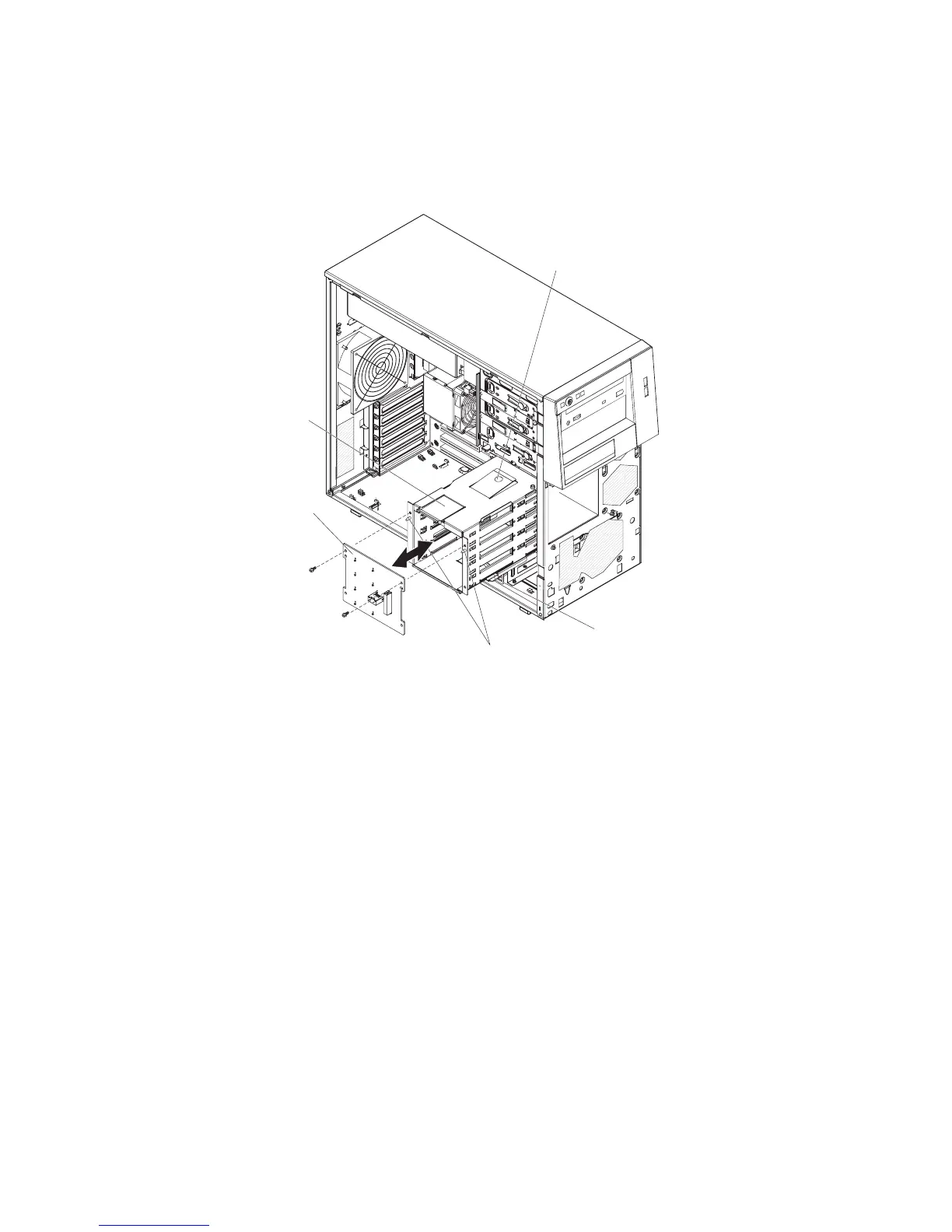

Retaining tab
Drive cage
release tab
Retaining
latch
Locating pins
SAS
backplane
1. Place the bottom edge of the SAS/SATA hard disk drive backplane in the lower
lip of the drive cage.
2. Tilt the top of the SAS/SATA hard disk drive backplane toward the drive cage
and over the locating pins.
3. Install the two screws that secure the SAS/SATA hard disk drive backplane to
the drive cage.
4. Press and hold the retaining tab on top of the cage; then, rotate the drive cage
into the chassis until it locks into place.
5. Connect the power and signal cables to the hard disk drive backplane.
6. Install the front fan assembly onto the hard disk drive cage (see “Installing the
front system fan assembly” on page 108).
7. Install the hot-swap hard disk drives that were removed from the hard disk
drive cage (see “Installing a hot-swap hard disk drive” on page 94).
8. Install the lower bezel (see “Installing the lower bezel” on page 80).
9. Install the side cover (see “Installing the side cover” on page 78).
10. Lock the side cover if it was unlocked during removal.
11. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
112 System x3200 Types 4362 and 4363: Problem Determination and Service Guide
