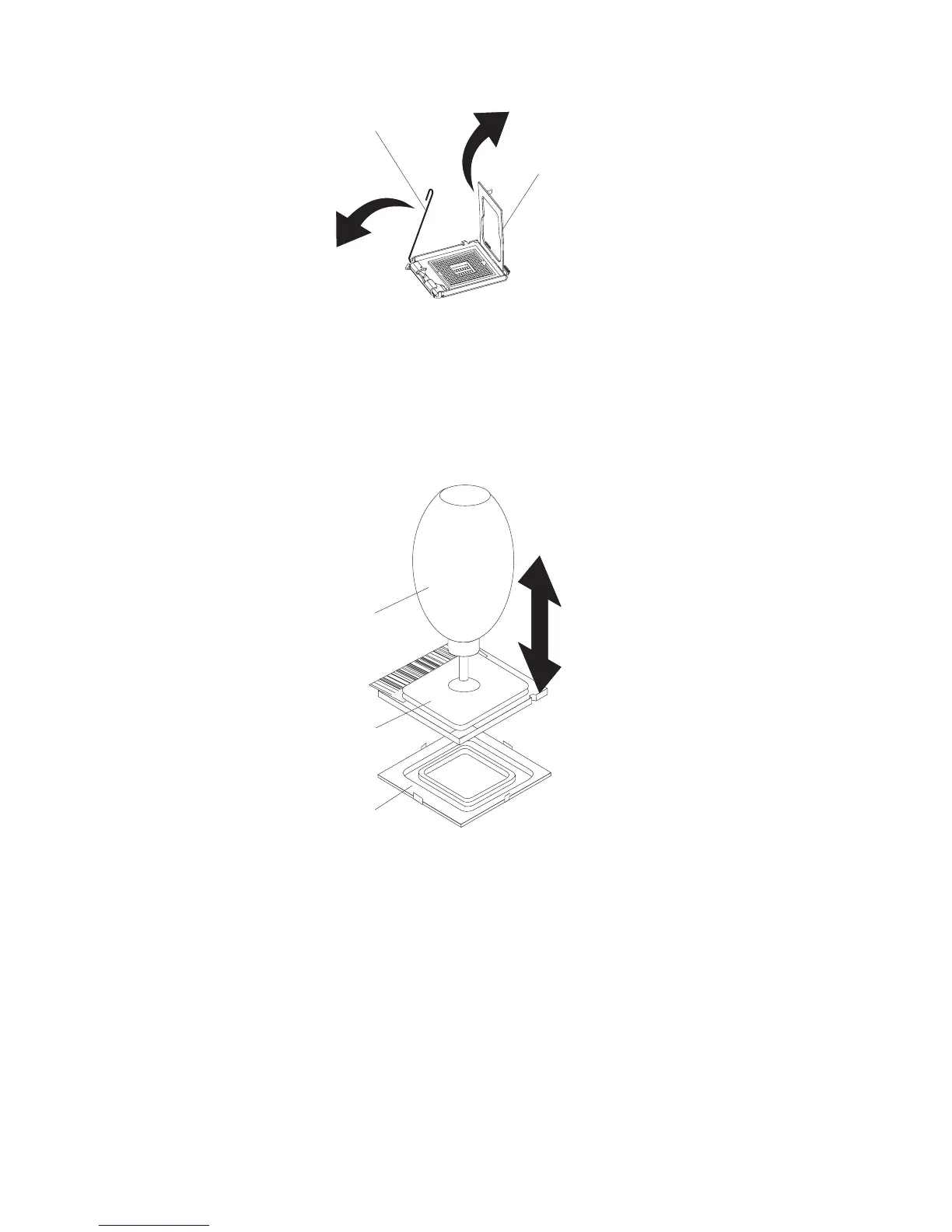

Microprocessor
bracket frame
Microprocessor
retention latch
8. Open the microprocessor bracket frame by lifting up the tab on the top edge.
Attention: Use the vacuum tool that comes with the replacement part to
remove the microprocessor. Dropping the microprocessor during removal can
damage the contacts. Also, contaminants on the microprocessor contacts, such
as oil from your skin, can cause connection failures between the contacts and
the socket.
9. Remove the microprocessor by using the vacuum tool and completing the
following steps.
Vacuum tool
Microprocessor
Socket
a. Squeeze and hold the bladder of the tool; then, place the suction cup on
the microprocessor and release the bladder.
b. Using the tool, carefully lift the microprocessor straight up and out of the
socket, and place it on a static-protective surface.
c. Squeeze the bladder of the tool to release the microprocessor from the
suction cup.
10. If you are instructed to return the microprocessor and fan sink, follow all
packaging instructions, and use any packaging materials for shipping that are
supplied to you.
124 System x3200 Types 4362 and 4363: Problem Determination and Service Guide
