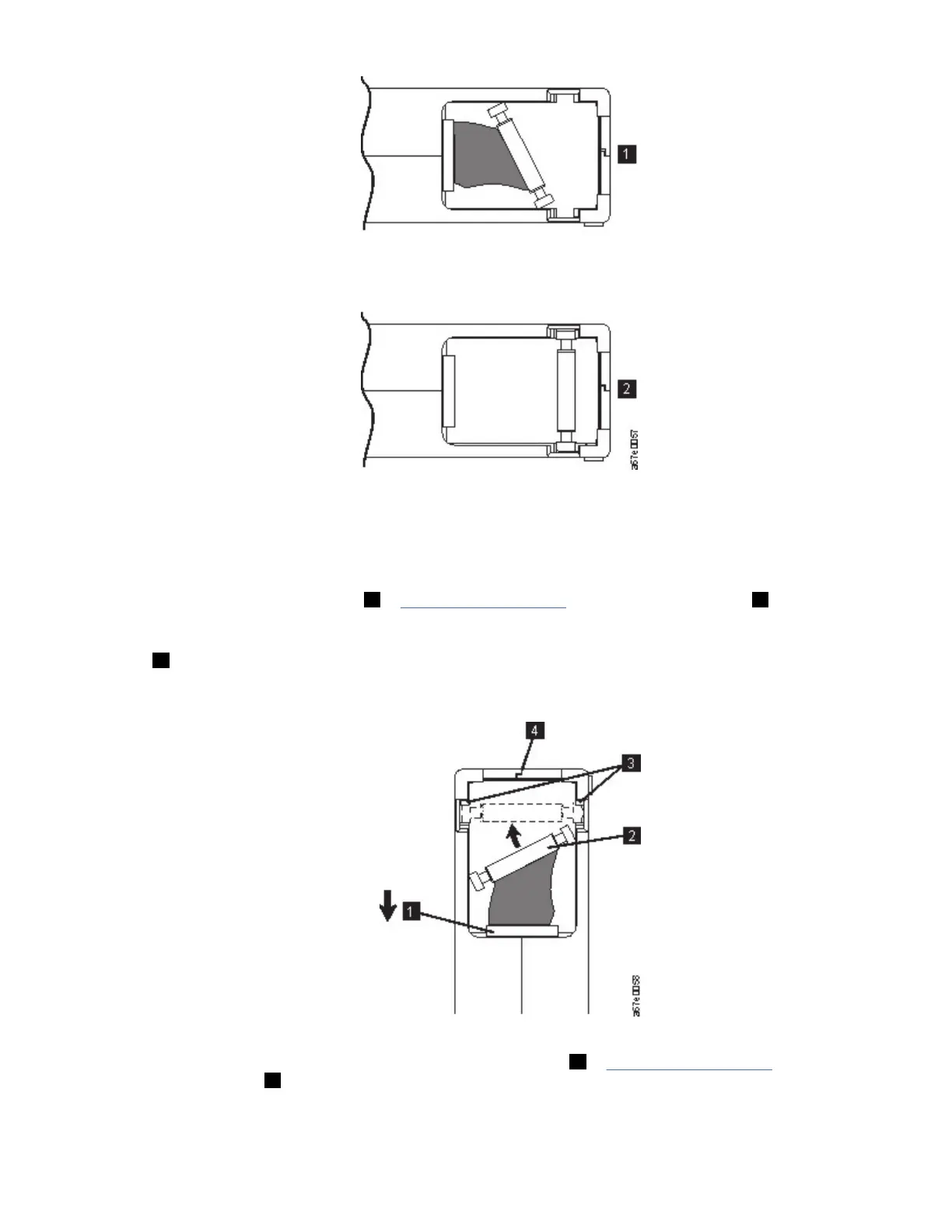

Figure 102. Leader pin in the incorrect and correct positions

To reposition the leader pin:

Procedure

1. Slide open the cartridge door (1 in Figure 103 on page 188) and locate the leader pin 2 (you might

need to shake the cartridge gently to roll the pin toward the door).

2. With plastic or blunt-end tweezers, grasp the leader pin and position it in the pin-retaining spring clips

3.

3. Press the leader pin gently into the clips until it snaps into place and is rmly seated.

4. Close the cartridge door.

Figure 103. Placing the dislodged leader pin into the correct position

5. To rewind the tape, insert the cartridge manual rewind tool (1 in Figure 104 on page 189) into the

cartridge 's hub 2 and turn it clockwise until the tape becomes taut.

IBM Condential

188IBM TS4300 Tape Library 机器类型 3555：用户指南
