To reposition the leader pin, perform the following steps.
Procedure
1. Slide open the cartridge door (see ▌1▐ in Figure 51) and locate the leader pin
▌2▐ (you may need to shake the cartridge gently to roll the pin toward the
door).
2. With plastic or blunt-end tweezers, grasp the leader pin and position it in the
pin-retaining spring clips ▌3▐.
3. Press the leader pin gently into the clips until it snaps into place and is firmly
seated.
4. Close the cartridge door.
5. To rewind the tape, insert the cartridge manual rewind tool (see ▌1▐ in
Figure 52 on page 152) into the cartridge's hub ▌2▐ and turn it clockwise until
the tape becomes taut.

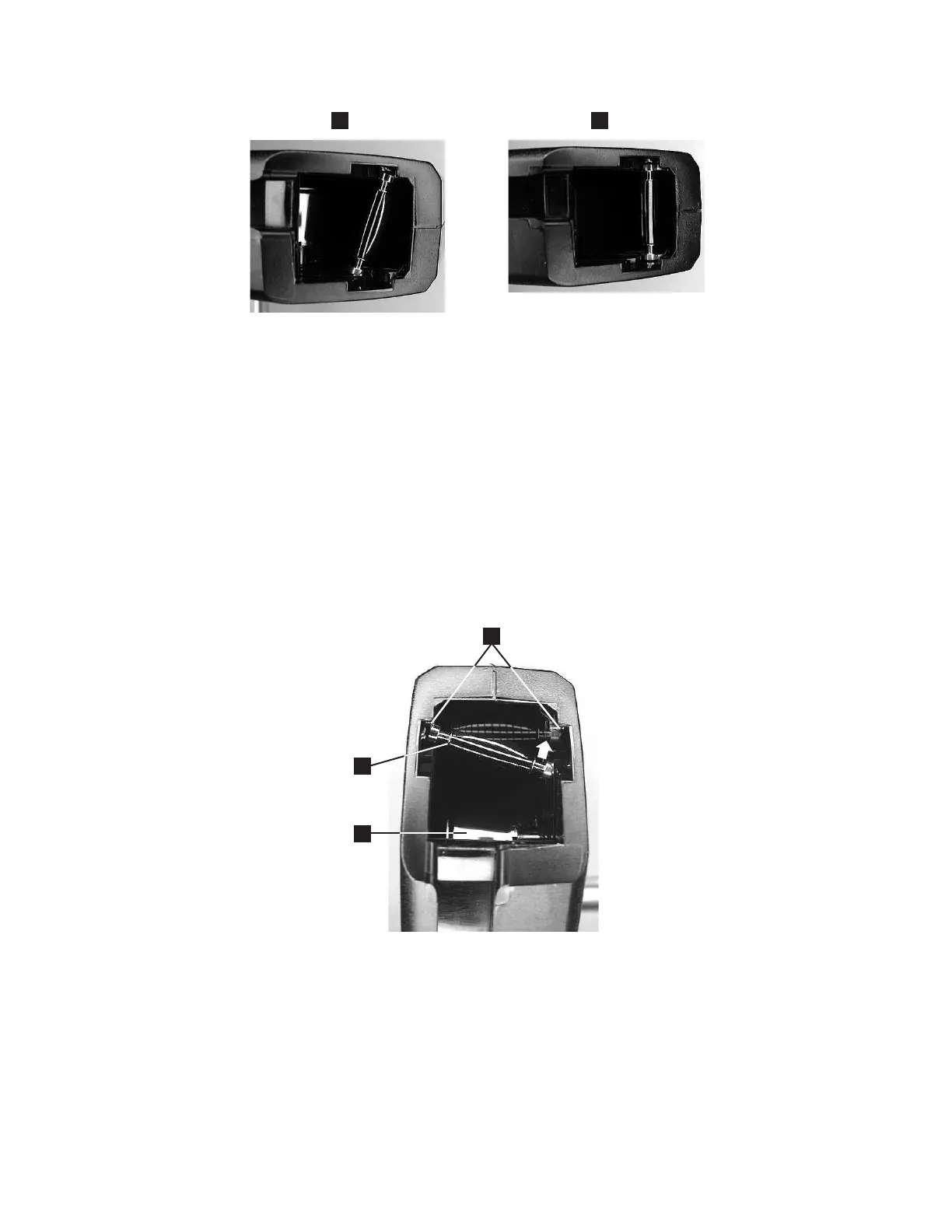

Figure 50. Leader pin in the incorrect and correct positions in a 3592 tape cartridge. The cartridge door is open and
the leader pin is visible inside the cartridge.
Figure 51. Placing the dislodged leader pin into the correct position. The cartridge door is open, showing the leader pin
out of position.
Chapter 2. Planning 151
