INSTALLATION
■ DC power supply connection
Use a 13.8 V DC power supply with more than 12 A capacity.
Make sure the ground terminal of the DC power supply is
grounded.
•See p. 74 for fuse replacement.

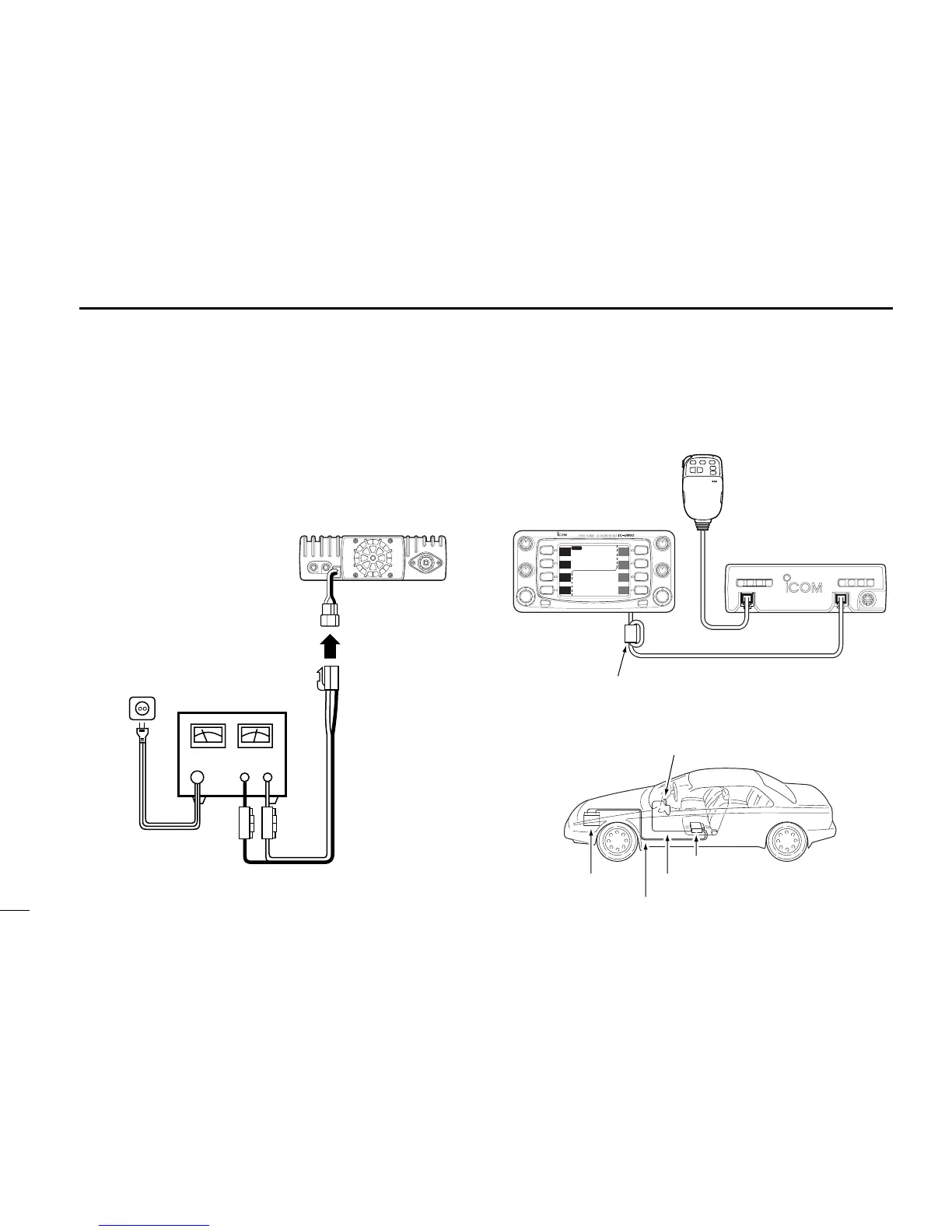

■ Cable connection
Connect the cable as shown below.
DC power
supply 13.8 V
to an
AC
outlet
Fuses
20 A
+ red
+_
_ black
Battery
Remote controller
Remote controller cable
Power cable
Main unit
DATA
MIC CONTROLLER
MAIN
MAIN
SCP
SCP
V/M H
TS
V/M H
TS
M/C
SCN
M/C
SCN
MONI
LOW
MONI
LOW
HI
HI
MAIN
1

14 
5.000
1

43 
3.000
VOL
VOL
SQL
SQL
CHG/L
POWER
Remote controller
Speaker is
included in the
remote controller
Connect the end with the
ferrite core to the controller
(where applicable)
Supplied remote controller
cable (3.5 m, 11.5 ft)
IC-2800 main unit
