N Duplex operation
D Setting offset frequency
q Enter “OFFSET” in DUP.T menu.
MENU ¶ DUP.T ¶ OFFSET (p. 119)
(Push [MENU ]), (Push [](2)/[](8), then push [ ](5).)
w Push []/[] (or rotate [DIAL]) to set the offset fre-
quency.
e Push [
](5) to return to DUP.T menu, and then push
[MENU
] to return to frequency indication.

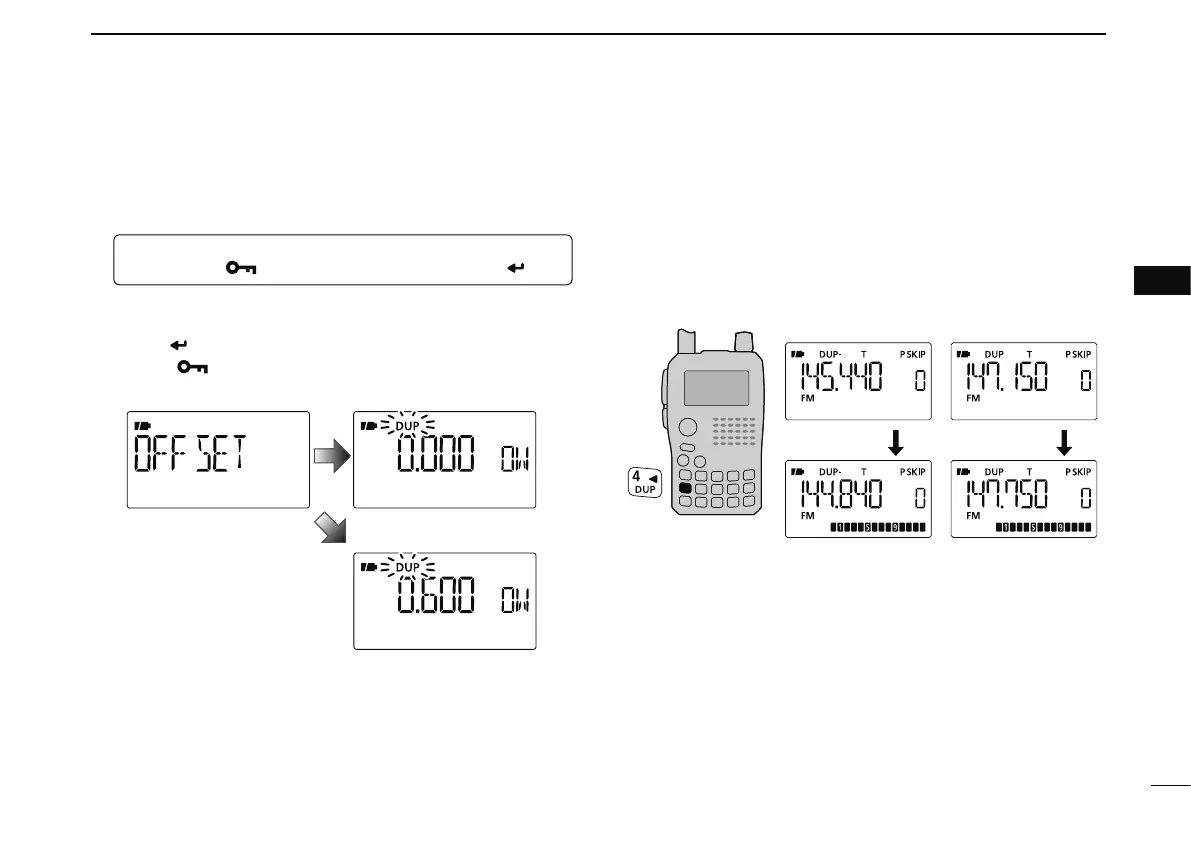

0.6 MHz offset
No offset frequencyOffset frequency setting
D Setting duplex direction
± Push and hold [DUP](4) for 1 sec. to select “DUP–” (nega-
tive offset) or “DUP” (positive offset).
• “DUP–” or “DUP” indicates the transmit frequency for minus
shift or plus shift, respectively.
• When offset frequency is 0.6 MHz
–Duplex example
Receiving
Transmitting
+Duplex example
Receiving
Transmitting
U.S.A. and Korean versions:
Auto repeater function has priority over the manual duplex
setting. If the transmit frequency changes after setting, the
auto repeater function may have changed the duplex setting.
