N GPS operation
You can display GPS data when in FM, FM-N, WFM, AM
and DV modes. You can also transmit GPS data when in
DV mode. To receive GPS data, connect an optional GPS
speaker microphone (HM-189GPS) or connect a third-party
GPS receiver* that has an RS-232C output and NMEA data
format. Third-party GPS receivers connect to the IC-80AD’s
[DATA] jack.
In addition, the GPS message transmission is also available
in GPS mode operation.
* Set “GPS-TX” to “DVG” or “DVA” at step w of next page when
connecting a 3rd party GPS receiver.
NOTE: The IC-80AD receives GPS data (position, etc.)
from the HM-189GPS only when the IC-80AD is
receiving. When transmitting, GPS data are not updated
and the IC-80AD transmits the GPS data it received
before you pushed [PTT].

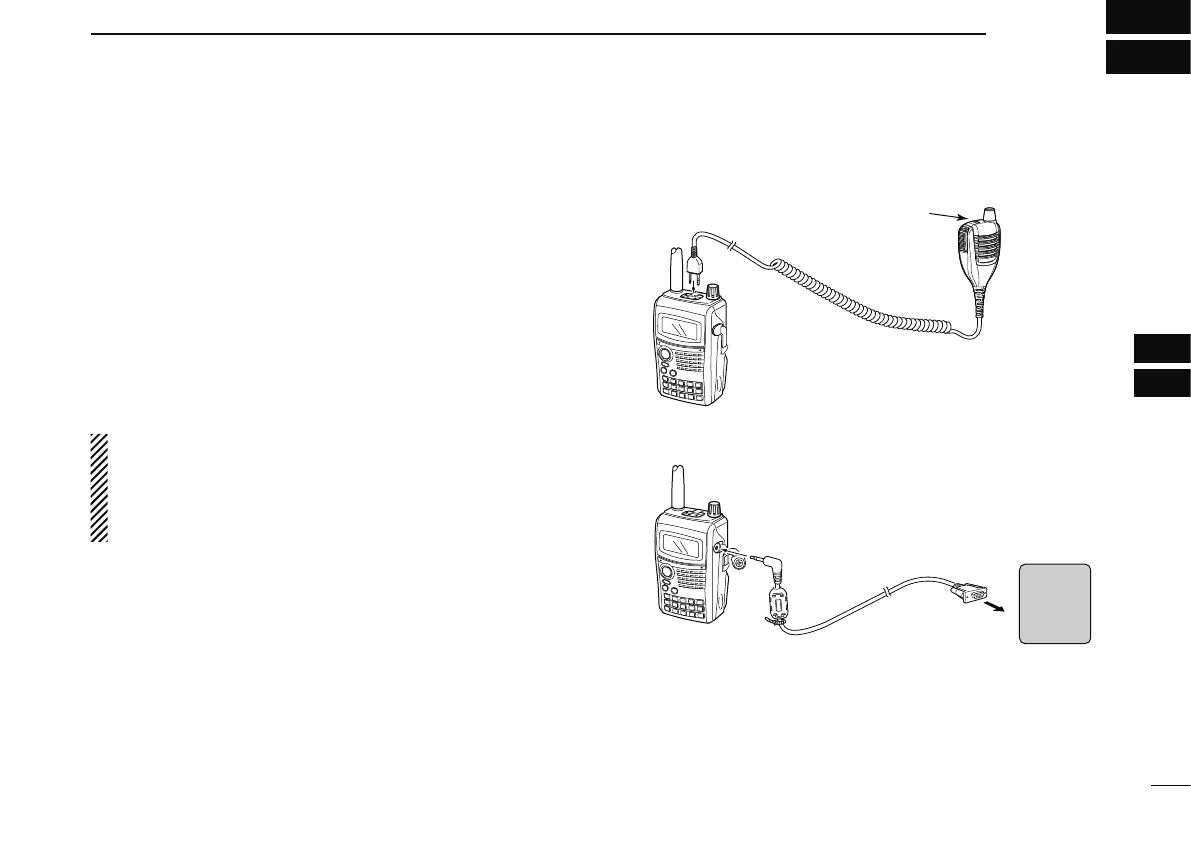

• When connecting the HM-189GPS
HM-189GPS
(optional)
Top key
to [SP/MIC]
• When connecting the GPS receiver
OPC-1529R
(optional)
to [DATA]
to RS-232C port
(null modem
adapter is required)
GPS
receiver
To Next Page
