n Optional MB-69 installation
An optional MB-69 f l u s h m o u n t is available for mounting
the transceiver to a flat surface, such as an instrument panel.
KEEP the transceiver and microphone at least 1 meter
(3.3 feet) away from your vessel’s magnetic navigation
compass.
q Using the template on page 55, carefully cut a hole into
the instrument panel (or wherever you plan to mount the
transceiver.)

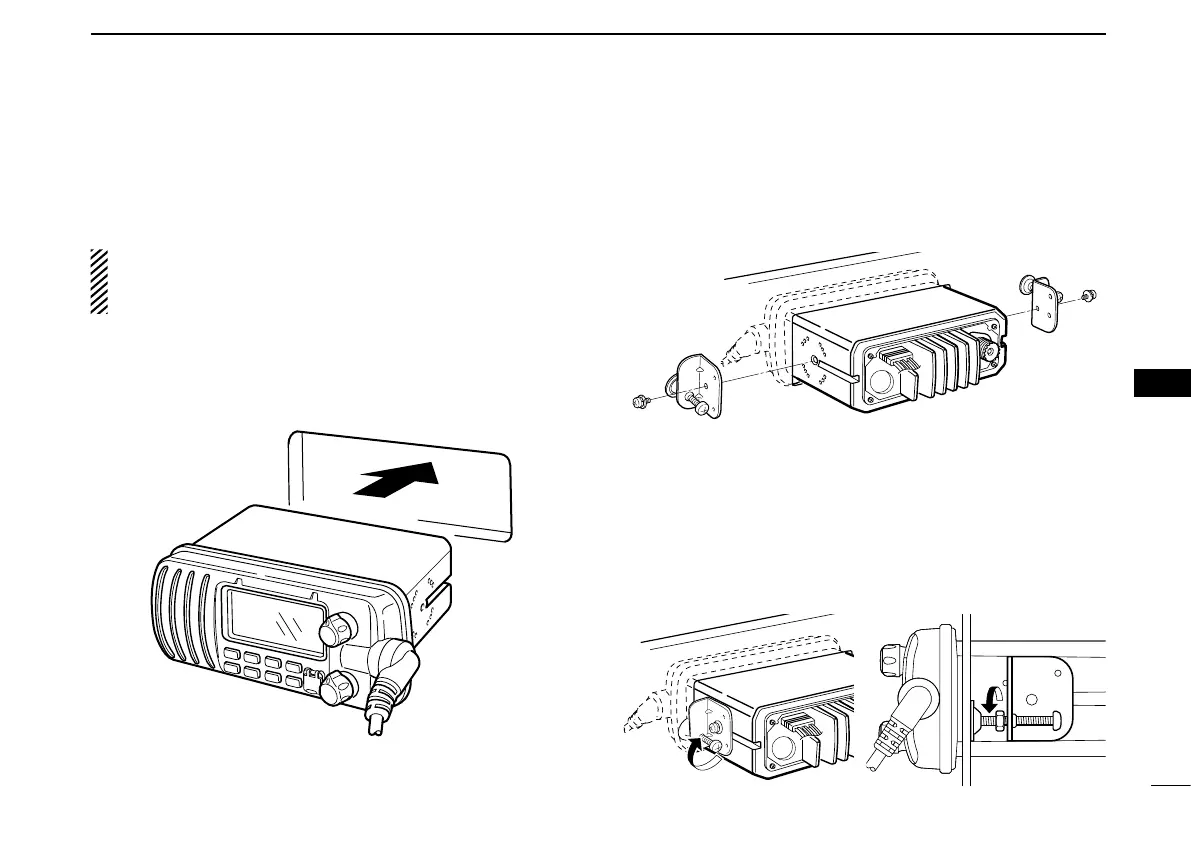

w Slide the transceiver through the hole as shown below.
e Attach the clamps on either side of the transceiver with
two supplied bolts (5 × 8 mm).
 •Makesurethattheclampsalignparalleltothetransceiverbody.
r Tighten the end bolts on the clamps (rotate clockwise) so
that the clamps press firmly against the inside of the in-
strument control panel.
t Tighten the locking nuts (rotate counterclockwise) so that
the transceiver is securely mounted in position, as shown
below.
y Connect the antenna and power cable, then return the
instrument control panel to its original place.
