CONNECTIONS AND MAINTENANCE

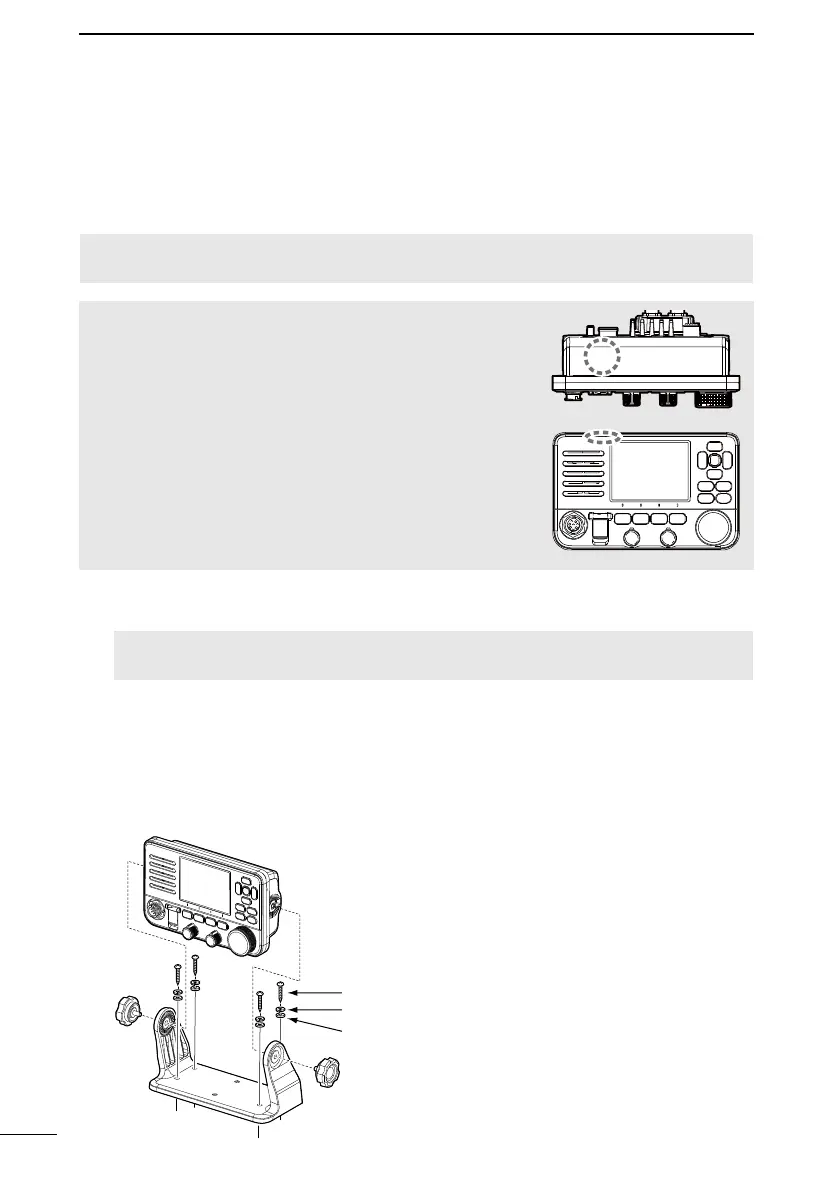

■ Mounting the transceiver
D Using the supplied mounting bracket
You can mount the transceiver on a dashboard using the universal mounting bracket
supplied with your transceiver.
CAUTION: KEEP the transceiver and microphone at least 1 meter (3.3 ft) away from
the vessel’s magnetic navigation compass.
NOTE: The built-in GPS antenna is located, as shown
on the right.
Be sure that the transceiver is positioned where the
transceiver has a clear view to receive signal from
satellites.
1. Mount the bracket securely to a surface which is more than 10 mm thick and can
NOTE:
using the user supplied bolts and nuts, as shown below.
2. Attach the transceiver to the bracket so that the face of the transceiver is at 90° to
your line of sight when operating it.
L Adjust the function display angle to be easy-to-read.
Mounting Example
Flat washers
Spring washers
Mounting screws
To Next Page
