iDataLink maestro Rr Install Guide

ADS-RR(SR)-VW01A-AS
Volkswagen passat 2006-2009
Automotive Data Solutions Inc. © 2018
4
1
NOT CONNECTED

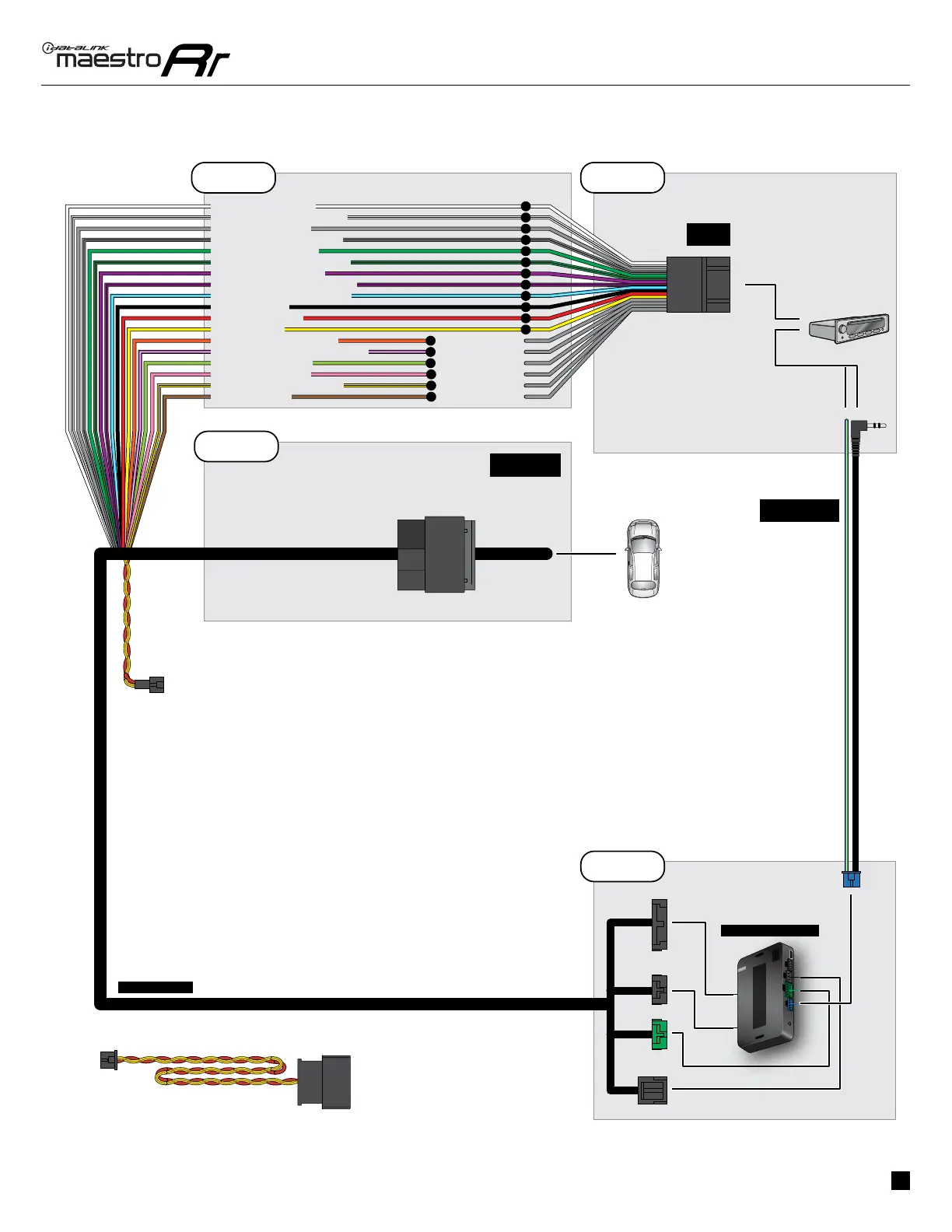

WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BROWN - MUTE (-)
ORANGE - PARKING LIGHT (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
PURPLE - RR SPEAKER (+)
VW1 T-HARNESS
FACTORY RADIO
HARNESS
WIRES FROM
VEHICLE
YELLOW/BLACK - FOOT BRAKE
PINK - VEHICLE SPEED
STEP 4
MAESTRO RR MODULE
CONNECT TO
AFTERMARKET RADIO
SEE
AFTERMARKET
RADIO GUIDE FOR
WIRE COLORS
STEERING WHEEL
CONTROL CABLE
CONNECTION NOT REQUIRED
