iDataLink maestro Rr Install Guide

ADS-RR(SR)-VW01-DS
Volkswagen Beetle 2012-2015
Automotive Data Solutions Inc. © 2016
5
C
A
H
F
G
D
C
A
G
F
H D
1
10 11 12 13 14 15 16
1 2 3 4 5
6 7 8
9

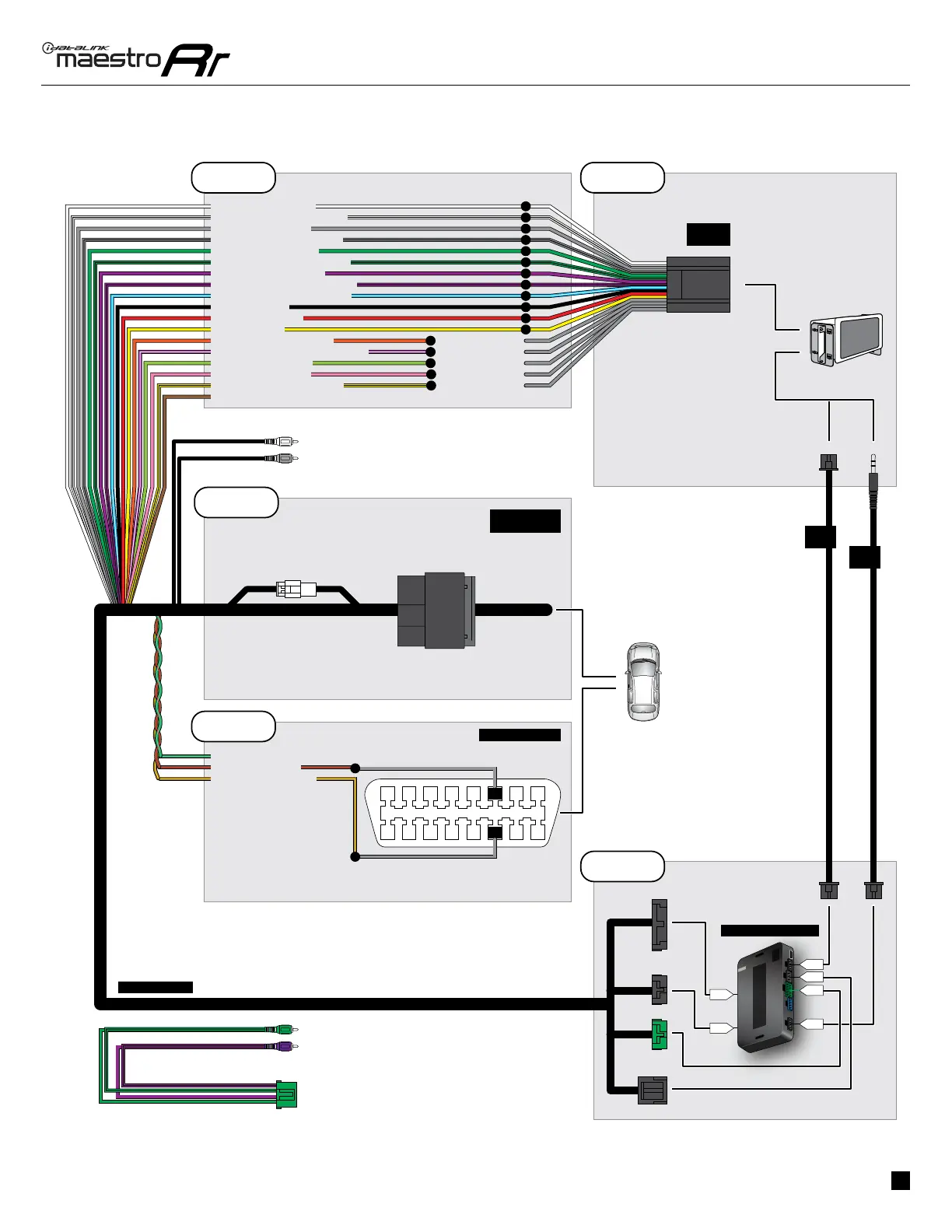

WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
MAESTRO RR MODULE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BROWN (NOT CONNECTED)
(NOT CONNECTED)
(NOT CONNECTED)
(NOT CONNECTED)
(NOT CONNECTED)
(NOT CONNECTED)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
DATA
CABLE
AUDIO
CABLE
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
VW1 T-HARNESS
FACTORY RADIO
HARNESS
BROWN/RED - CANH
GREEN/WHITE (NOT CONNECTED)
BROWN/YELLOW - CANL
OBDII CONNECTOR
WIRES FROM
VEHICLE
YELLOW/BLACK - FOOT BRAKE
PINK - VEHICLE SPEED
SEE CHART ON
NEXT PAGE FOR
RADIO WIRE
COLORS
WHITEWHITE
NOTE: PIN SIDE VIEW.
CONNECT TO TWISTED WIRES BEHIND CONNECTOR.

iDataLink maestro Rr Specifications

General

Category	Automobile Accessories
Type	Vehicle Interface Module
Compatibility	Works with select vehicles and aftermarket radios
Features	Retains factory features
Functionality	Allows integration of aftermarket radios with factory vehicle systems
Programmability	Programmable via Weblink desktop application
Firmware Updates	Supports firmware updates through Weblink
Data Bus Support	CAN bus
Vehicle Coverage	Compatible with a wide range of makes and models
Additional Features	May include support for factory amplifiers, backup cameras, and more
Installation	Professional installation recommended
