iDataLink maestro Rr Install Guide

ADS-RR(SR)-SUB01A-DS
subaRu legacy base 2010-2014
Automotive Data Solutions Inc. © 2018
4
2
BACKUP CAMBACKUP CAM
SUB INSUB IN
CC
BB
D
AA
CUT AND REMOVE
THE RCA JACKS
STEP 1
MAIN
HARNESS
SU1 T-HARNESS
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
PURPLE - RR SPEAKER (+)
STEP 4
STEP 5
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE - POWER ANTENNA
PINK - VEHICLE SPEED

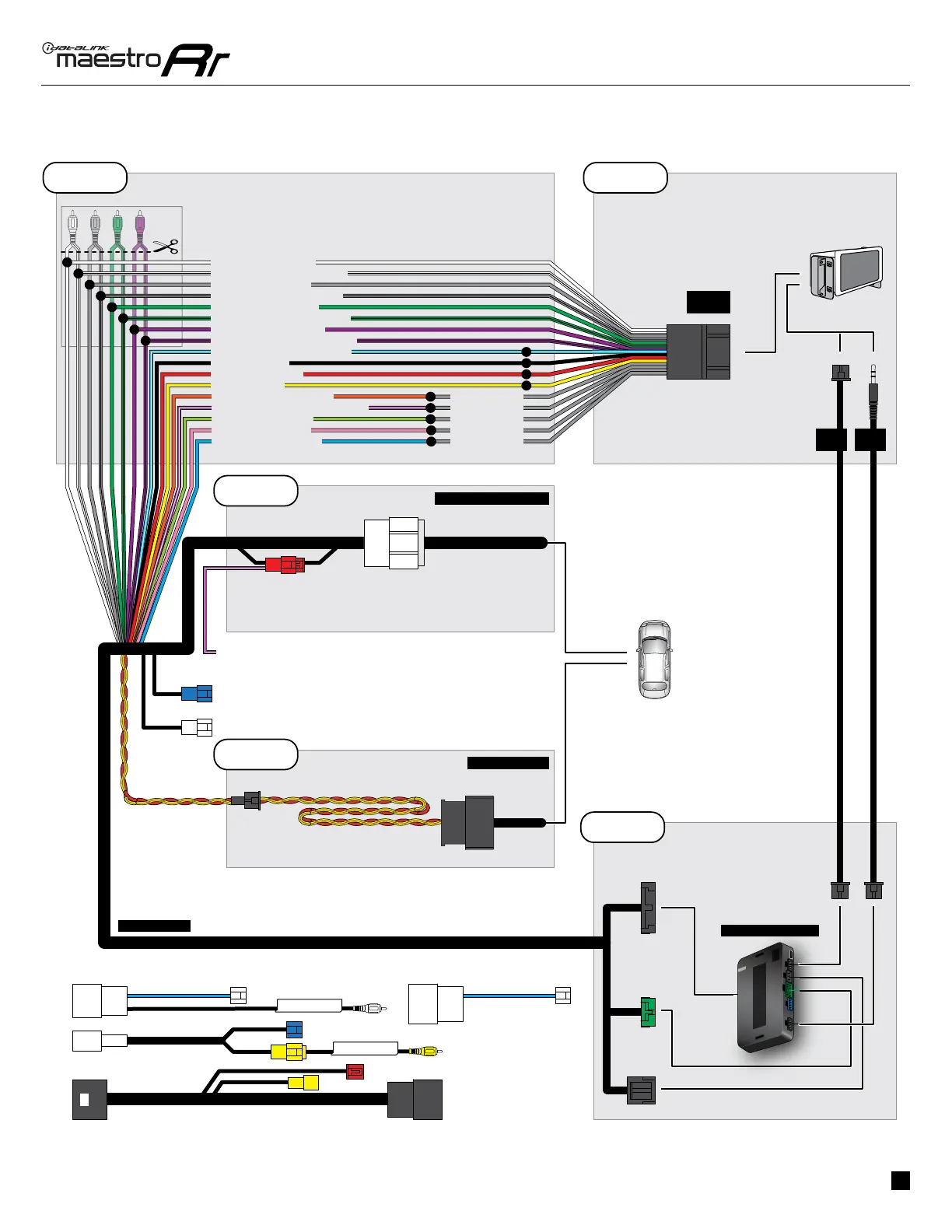

WIRING DIAGRAM
WIRES FROM
VEHICLE
FACTORY RADIO HARNESS
STEP 2
STEP 3
OBDII CONNECTOR
SEE RADIO WIRE
REFERENCE
CHART
FOR RADIO WIRE
COLORS
DATA
CABLE
AUDIO
CABLE
CONNECT TO
AFTERMARKET RADIO
RED
BLUE (NC)
WHITE (NC)
PURPLE/WHITE (NC)
CONNECTIONS NOT REQUIRED
MAESTRO RR MODULE

iDataLink maestro Rr Specifications

General

Category	Automobile Accessories
Type	Vehicle Interface Module
Compatibility	Works with select vehicles and aftermarket radios
Features	Retains factory features
Functionality	Allows integration of aftermarket radios with factory vehicle systems
Programmability	Programmable via Weblink desktop application
Firmware Updates	Supports firmware updates through Weblink
Data Bus Support	CAN bus
Vehicle Coverage	Compatible with a wide range of makes and models
Additional Features	May include support for factory amplifiers, backup cameras, and more
Installation	Professional installation recommended
