iDataLink maestro Rr Install Guide

ADS-RR(SR)-SUB02A-DS
subaRu foResteR with haRman kaRdon 2014-2015
Automotive Data Solutions Inc. © 2018
4
SUB INSUB IN
AA
3
BB
D
BACKUP CAMBACKUP CAM
BACKUP CAMBACKUP CAM
CC
MAESTRO RR MODULE
STEP 1
RCA CABLES
STEP 4
STEP 5

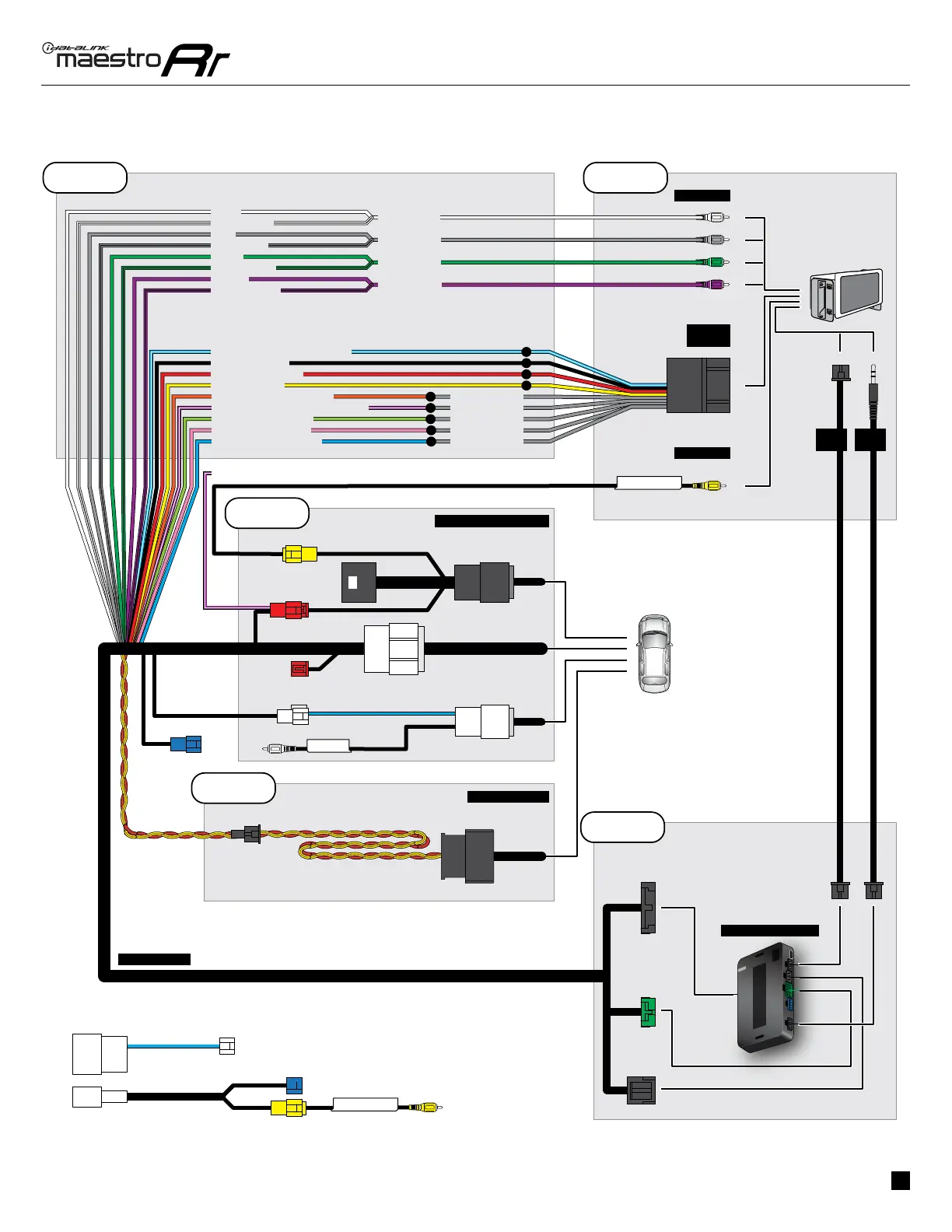

WIRING DIAGRAM
WIRES FROM
VEHICLE
FACTORY RADIO HARNESS
STEP 2
STEP 3
OBDII CONNECTOR
DATA
CABLE
AUDIO
CABLE
CONNECT TO
AFTERMARKET RADIO
RED
RED
PURPLE/WHITE (NC)
SECONDARY SCREEN
HARNESS
CONNECTIONS NOT REQUIRED
YELLOW
BLUE (NC)
NC
WHITE
MAIN
HARNESS
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE - POWER ANTENNA
PINK - VEHICLE SPEED
SEE RADIO WIRE
REFERENCE
CHART
FOR RADIO WIRE
COLORS
WHITE
WHITE/BLACK
GRAY
GRAY/BLACK
GREEN
GREEN/BLACK
PURPLE/BLACK
PURPLE
LF RCA INPUT
RF RCA INPUT
LR RCA INPUT
RR RCA INPUT
RCA CABLES
SU1 T-HARNESS
