iDataLink maestro Rr Install Guide

ADS-RR(SR)-FOC1-DS
FoRd Focus with 4.3" myFoRd scReen 2012-2014
Automotive Data Solutions Inc. © 2018
6
1
BACKUP CAMBACKUP CAM
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
PURPLE - RR SPEAKER (+)
CUT AND REMOVE
THE RCA CONNECTORS
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
PINK - VEHICLE SPEED
YELLOW/BLACK - FOOT BRAKE
BROWN (NOT CONNECTED)
WIRES FROM
VEHICLE
MAIN
HARNESS
CONNECT TO
AFTERMARKET RADIO
HARNESS BEHIND RADIO
RCA CABLE
FACTORY RADIO HARNESS
RR-FOC1 T-HARNESS

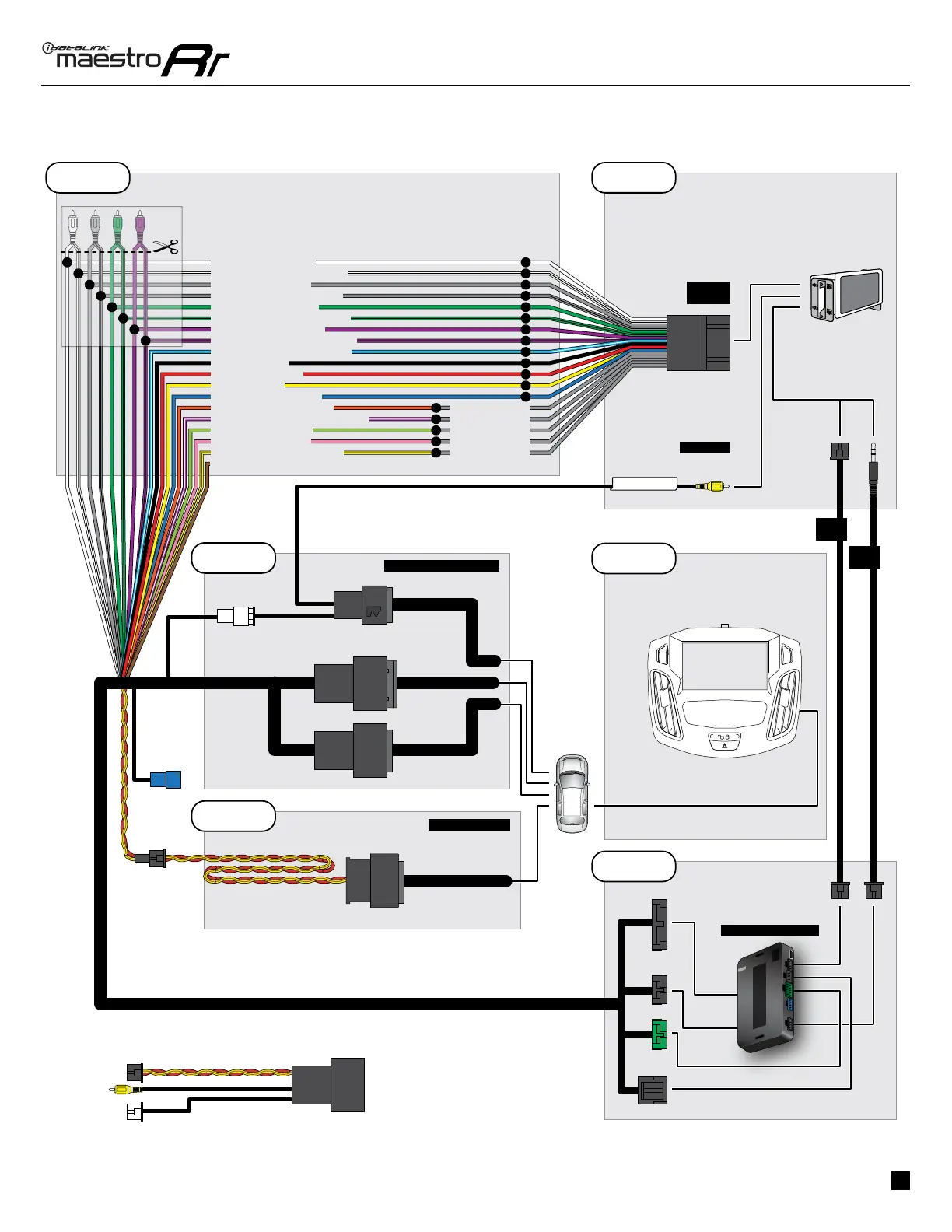

WIRING DIAGRAM
STEP 2
STEP 5
STEP 4
STEP 7
STEP 1
SEE RADIO
WIRE REFERENCE
CHART FOR
RADIO WIRE
COLORS
MAESTRO RR MODULE
DATA
CABLE
AUDIO
CABLE
STEP 3
OBDII CONNECTOR
BLUE - POWER ANTENNA
BLUE - POWER ANTENNA
BLUE
N.C.
WHITE
CONNECTION NOT REQUIRED

iDataLink maestro Rr Specifications

General

Category	Automobile Accessories
Type	Vehicle Interface Module
Compatibility	Works with select vehicles and aftermarket radios
Features	Retains factory features
Functionality	Allows integration of aftermarket radios with factory vehicle systems
Programmability	Programmable via Weblink desktop application
Firmware Updates	Supports firmware updates through Weblink
Data Bus Support	CAN bus
Vehicle Coverage	Compatible with a wide range of makes and models
Additional Features	May include support for factory amplifiers, backup cameras, and more
Installation	Professional installation recommended
