iDataLink maestro Rr Install Guide

ADS-RR(SR)-FOR02-DS
Ford explorer with 4.3" screen 2011-2015
Automotive Data Solutions Inc. © 2018
4
C
A
F
G
C
A
G
F
1
H
H
AUX INAUX IN
BACKUP CAMBACKUP CAM
D
D
STEP 4
OBDII CONNECTOR
CUT AND REMOVE
THE RCA JACKS
STEP 1
MAIN
HARNESS
RCA CABLES
WIRES FROM
VEHICLE
FO2 T-HARNESS
FACTORY RADIO HARNESS
CONNECT ONLY WHEN
THERE IS NO SYNC IN
VEHICLE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
PURPLE - RR SPEAKER (+)
STEP 2
STEP 5
STEP 6
MAESTRO RR MODULE
ORANGE - PARKING LIGHT (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
YELLOW/BLACK - FOOT BRAKE
PINK - VEHICLE SPEED
BROWN (NOT CONNECTED)

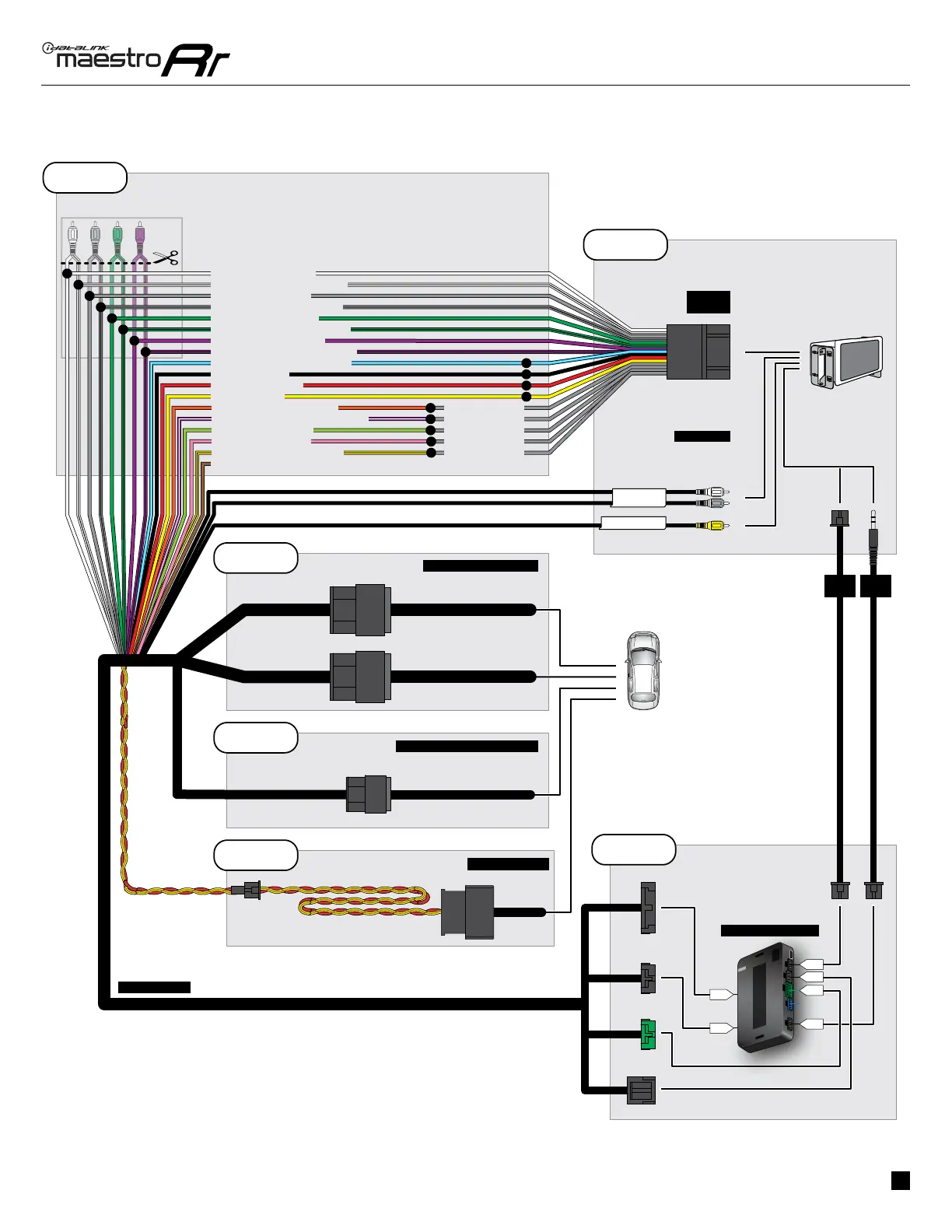

WIRING DIAGRAM
DATA
CABLE
AUDIO
CABLE
CONNECT TO
AFTERMARKET RADIO
SCREEN HARNESS ABOVE RADIO
STEP 3
SEE RADIO
WIRE REFERENCE
CHART FOR
RADIO WIRE
COLORS

iDataLink maestro Rr Specifications

General

Category	Automobile Accessories
Type	Vehicle Interface Module
Compatibility	Works with select vehicles and aftermarket radios
Features	Retains factory features
Functionality	Allows integration of aftermarket radios with factory vehicle systems
Programmability	Programmable via Weblink desktop application
Firmware Updates	Supports firmware updates through Weblink
Data Bus Support	CAN bus
Vehicle Coverage	Compatible with a wide range of makes and models
Additional Features	May include support for factory amplifiers, backup cameras, and more
Installation	Professional installation recommended
