iDataLink maestro Rr Install Guide

ADS-RR(SR)-SUB01A-DS
subaRu outback with amplifieR without naV 2010-2011
Automotive Data Solutions Inc. © 2018
4
4
BACKUP CAMBACKUP CAM
D
BB
CC
SUB INSUB IN
AA
STEP 1
MAIN
HARNESS
RCA CABLE
SU1 T-HARNESS
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
STEP 4
STEP 5
MAESTRO RR MODULE
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE - POWER ANTENNA
PINK - VEHICLE SPEED

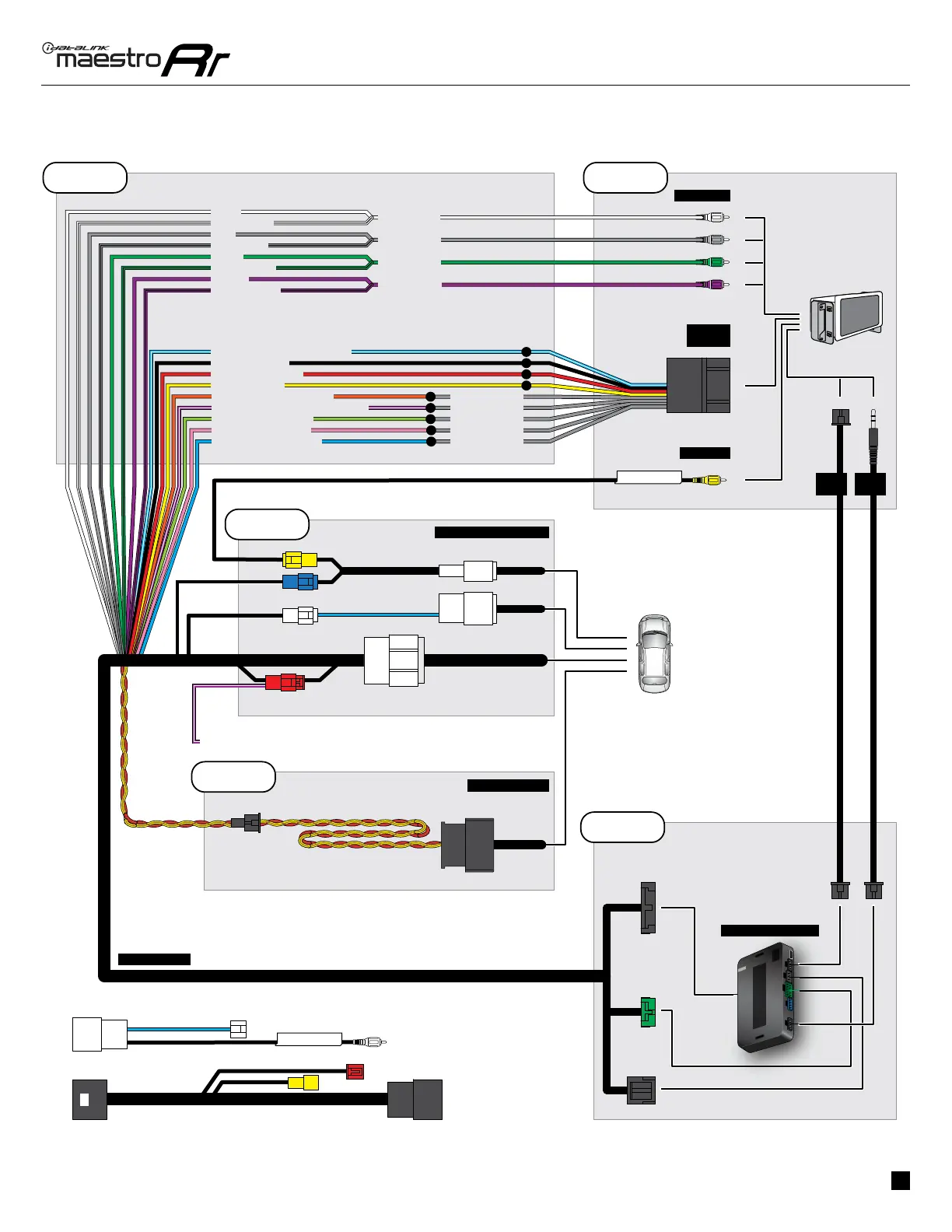

WIRING DIAGRAM
WIRES FROM
VEHICLE
FACTORY RADIO HARNESS
STEP 2
STEP 3
OBDII CONNECTOR
SEE RADIO WIRE
REFERENCE
CHART
FOR RADIO WIRE
COLORS
DATA
CABLE
AUDIO
CABLE
CONNECT TO
AFTERMARKET RADIO
RED
BLUE
WHITE
PURPLE/WHITE (NC)
CONNECTIONS NOT REQUIRED
YELLOW
WHITE
WHITE/BLACK
GRAY
GRAY/BLACK
GREEN
GREEN/BLACK
PURPLE/BLACK
PURPLE
LF RCA INPUT
RF RCA INPUT
LR RCA INPUT
RR RCA INPUT
RCA CABLES
