iDataLink maestro Rr Install Guide

ADS-RR(SR)-FOR02-AS
ford escape with 4.3" screen 2013-2015
Automotive Data Solutions Inc. © 2018
4
BACKUP CAMBACKUP CAM
C
A
F
G
C
A
G
F
1
E
E
AUX INAUX IN
CUT AND REMOVE
THE RCA JACKS
STEP 1
MAIN
HARNESS
RCA CABLES
FO2 T-HARNESS
CONNECT ONLY WHEN
THERE IS NO SYNC IN
VEHICLE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
PURPLE - RR SPEAKER (+)
STEP 5
STEP 6
MAESTRO RR MODULE
ORANGE - PARKING LIGHT (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
YELLOW/BLACK - FOOT BRAKE
PINK - VEHICLE SPEED
CONNECT TO
AFTERMARKET RADIO
SEE
AFTERMARKET
RADIO GUIDE
FOR WIRE
COLORS

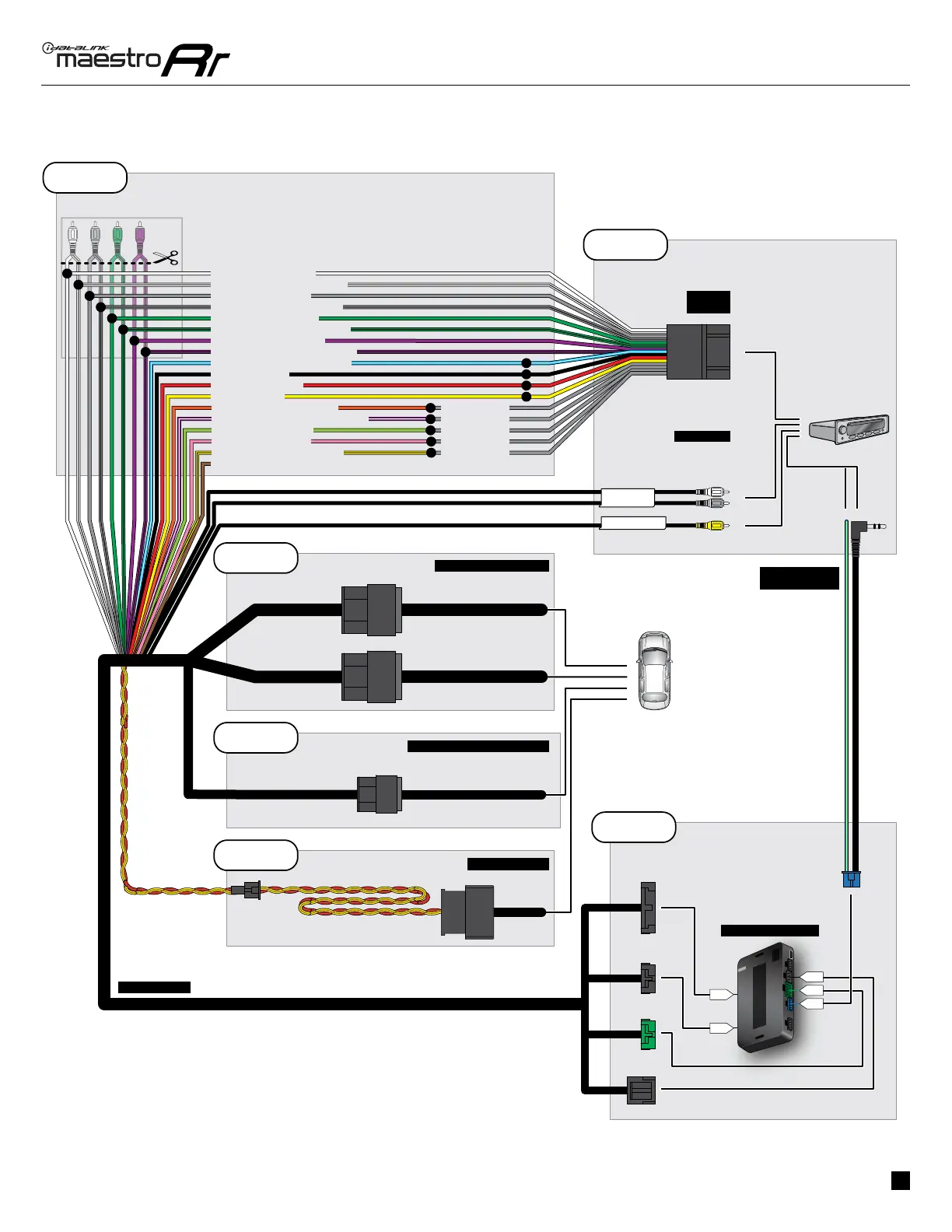

WIRING DIAGRAM
STEERING WHEEL
CONTROL CABLE
BROWN (NOT CONNECTED)
WIRES FROM
VEHICLE
FACTORY RADIO HARNESS
STEP 2
SCREEN HARNESS ABOVE RADIO
STEP 3
STEP 4
OBDII CONNECTOR

iDataLink maestro Rr Specifications

General

Category	Automobile Accessories
Type	Vehicle Interface Module
Compatibility	Works with select vehicles and aftermarket radios
Features	Retains factory features
Functionality	Allows integration of aftermarket radios with factory vehicle systems
Programmability	Programmable via Weblink desktop application
Firmware Updates	Supports firmware updates through Weblink
Data Bus Support	CAN bus
Vehicle Coverage	Compatible with a wide range of makes and models
Additional Features	May include support for factory amplifiers, backup cameras, and more
Installation	Professional installation recommended
