iDataLink maestro Rr Install Guide

ADS-RR(SR)-CHR02-AS
chrysler aspen Base 2007
Automotive Data Solutions Inc. © 2018
4
C
A
F
G
C
A
G
F
1
E
E

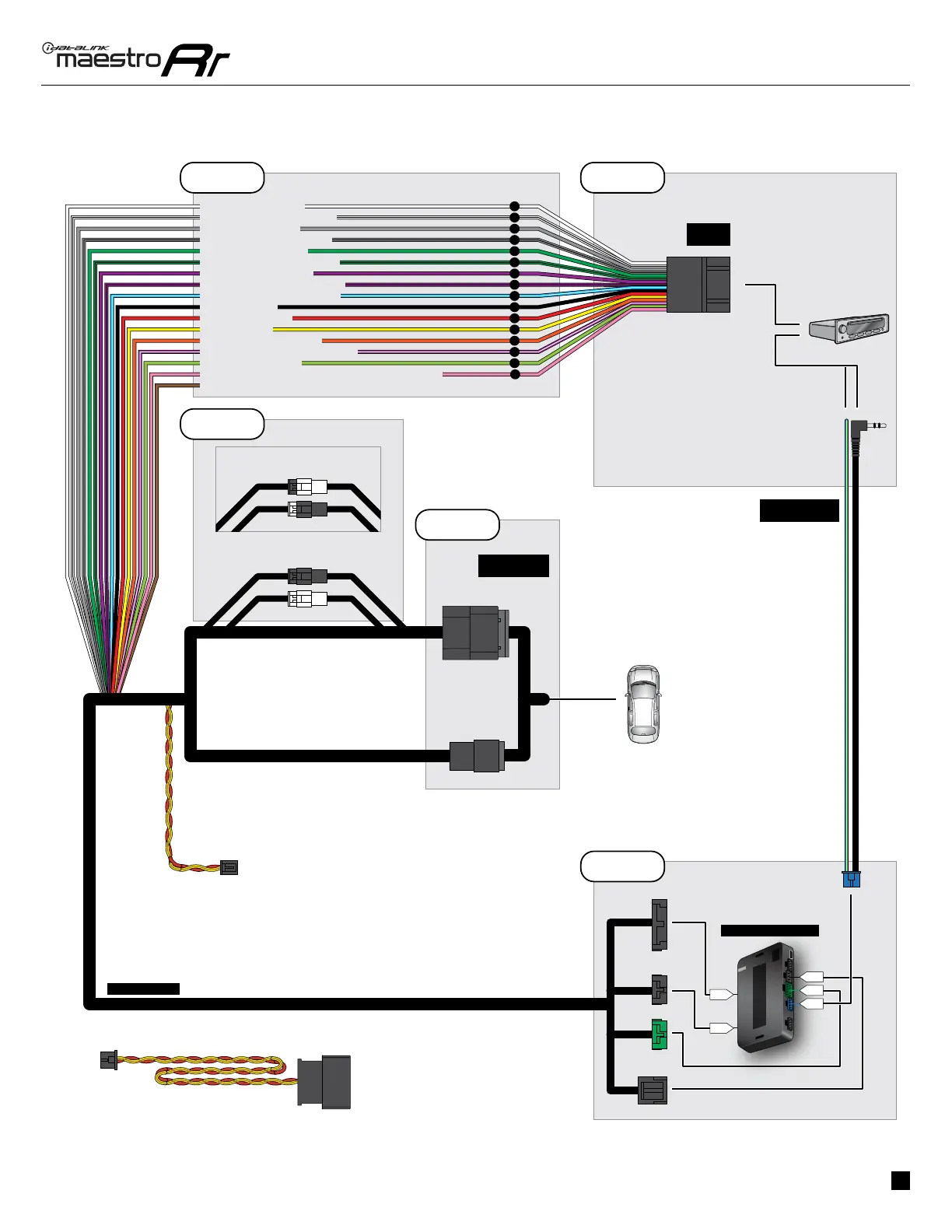

WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
MAESTRO RR MODULE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BROWN (NOT CONNECTED)
WHITE
WHITE
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
PURPLE - RR SPEAKER (+)
CH2 T-HARNESS
FACTORY RADIO
HARNESS
WIRES FROM
VEHICLE
PINK - VEHICLE SPEED (CONNECT IF THERE IS A MATCH)
WHITEWHITE
BLACKBLACK
BLACK
BLACK
CONNECT TO
AFTERMARKET RADIO
STEERING WHEEL
CONTROL CABLE
CONNECTION NOT REQUIRED
N.C.
CONNECTIONS WITH AMP
CONNECTIONS WITHOUT AMP
