ADS-RR(SR)-CHR01-AS
Jeep wrangler Jk mt 2007-2018
Automotive Data Solutions Inc. © 2018
4
C
A
F
G
C
A
G
F
3
E
E

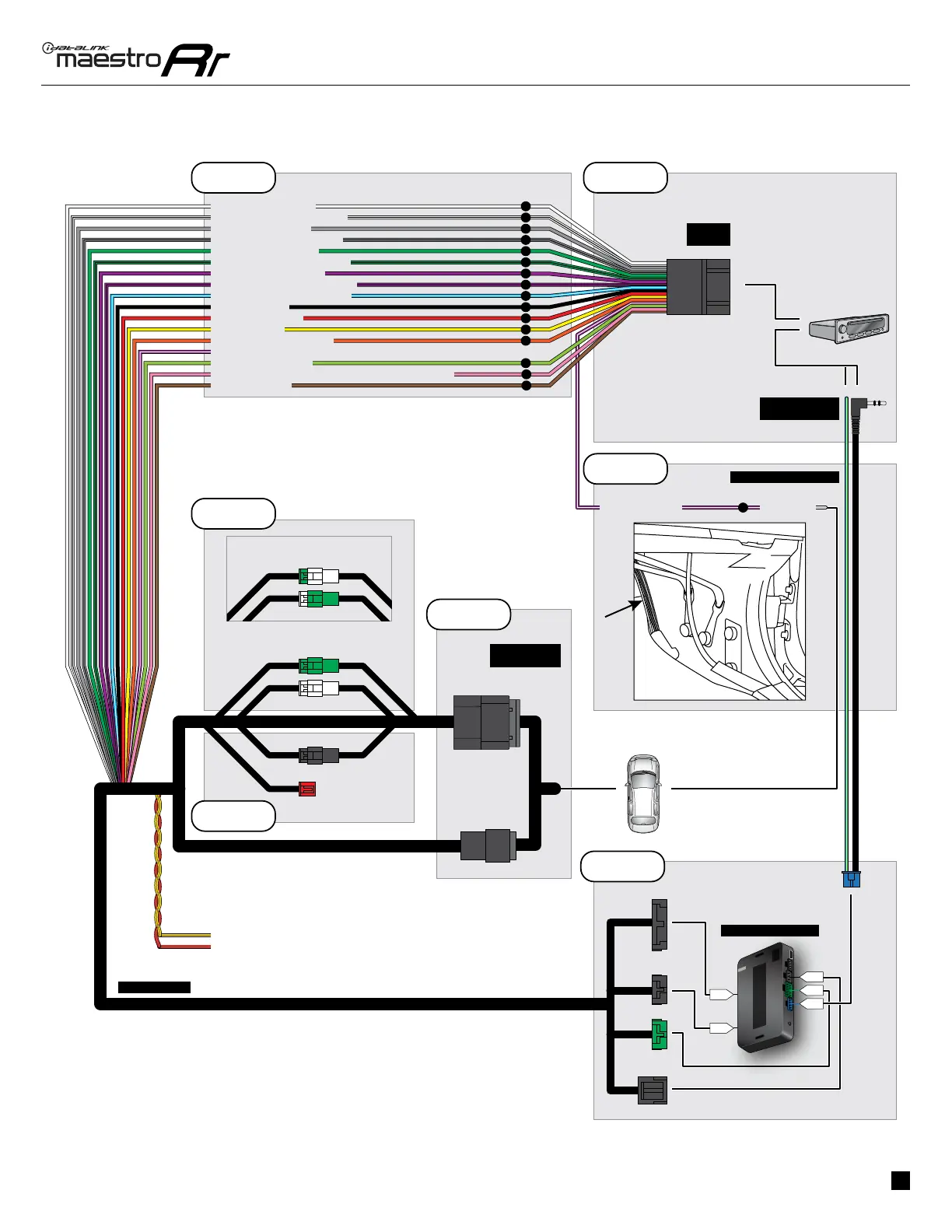

WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6
STEP 7
MAESTRO RR MODULE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
GREEN WHITE
WHITE GREEN
CONNECTIONS WITHOUT AMP
CONNECTIONS WITH AMP
ORANGE - ILLUMINATION (+)
PURPLE/WHITE (NC)
PURPLE/WHITE
REVERSE LIGHT (+) WHITE/GRAY
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
CH1 T-HARNESS
FACTORY RADIO
HARNESS
RED/BROWN (NC)
YELLOW/BROWN (NC)
WIRES FROM
VEHICLE
PINK - VEHICLE SPEED (CONNECT IF THERE IS A MATCH)
GREEN GREEN
WHITEWHITE
BLACKBLACK
STEERING WHEEL
CONTROL CABLE
PASSENGER KICK PANEL
RED (NC)
BROWN - MUTE (-)
