iDataLink maestro Rr Install Guide

ADS-RR(SR)-FOC1-AS
FoRd Focus with 4.3" myFoRd scReen 2012-2014
Automotive Data Solutions Inc. © 2018
6
1
BACKUP CAMBACKUP CAM
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
PURPLE - RR SPEAKER (+)
CUT AND REMOVE
THE RCA CONNECTORS
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
PINK - VEHICLE SPEED
YELLOW/BLACK - FOOT BRAKE
BROWN (NOT CONNECTED)
WIRES FROM
VEHICLE
MAIN
HARNESS
HARNESS BEHIND RADIO
RCA CABLE
FACTORY RADIO HARNESS
RR-FOC1 T-HARNESS

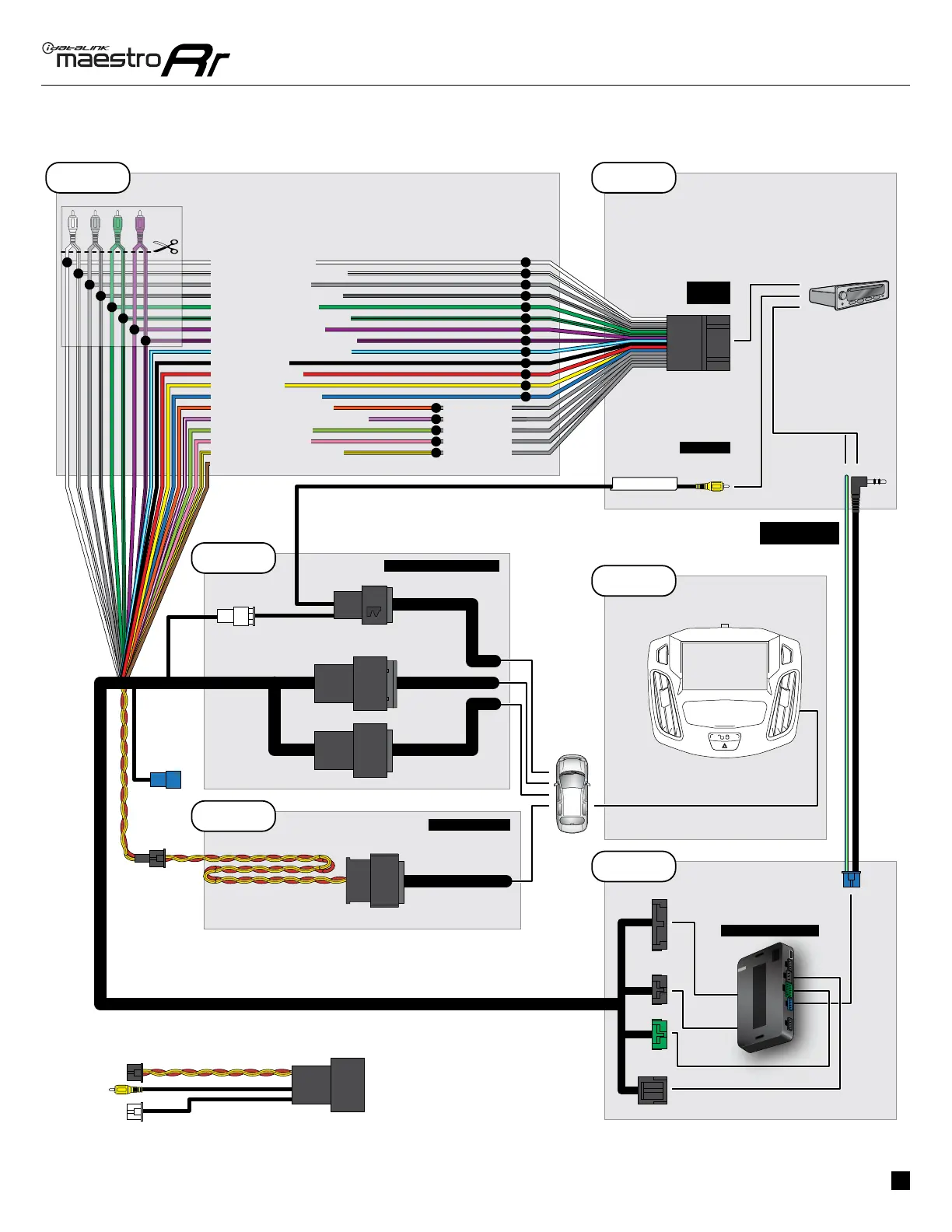

WIRING DIAGRAM
STEP 2
STEP 5
STEP 4
STEP 7
STEP 1
MAESTRO RR MODULE
STEP 3
OBDII CONNECTOR
BLUE - POWER ANTENNA
BLUE - POWER ANTENNA
BLUE
N.C.
WHITE
CONNECTION NOT REQUIRED
CONNECT TO
AFTERMARKET RADIO
STEERING WHEEL
CONTROL CABLE
SEE
AFTERMARKET
RADIO GUIDE
FOR WIRE
COLORS
