ADS-RR(SR)-FOC1-AS
FoRd Focus with 4.3" myFoRd scReen 2012-2014
Automotive Data Solutions Inc. © 2018
4

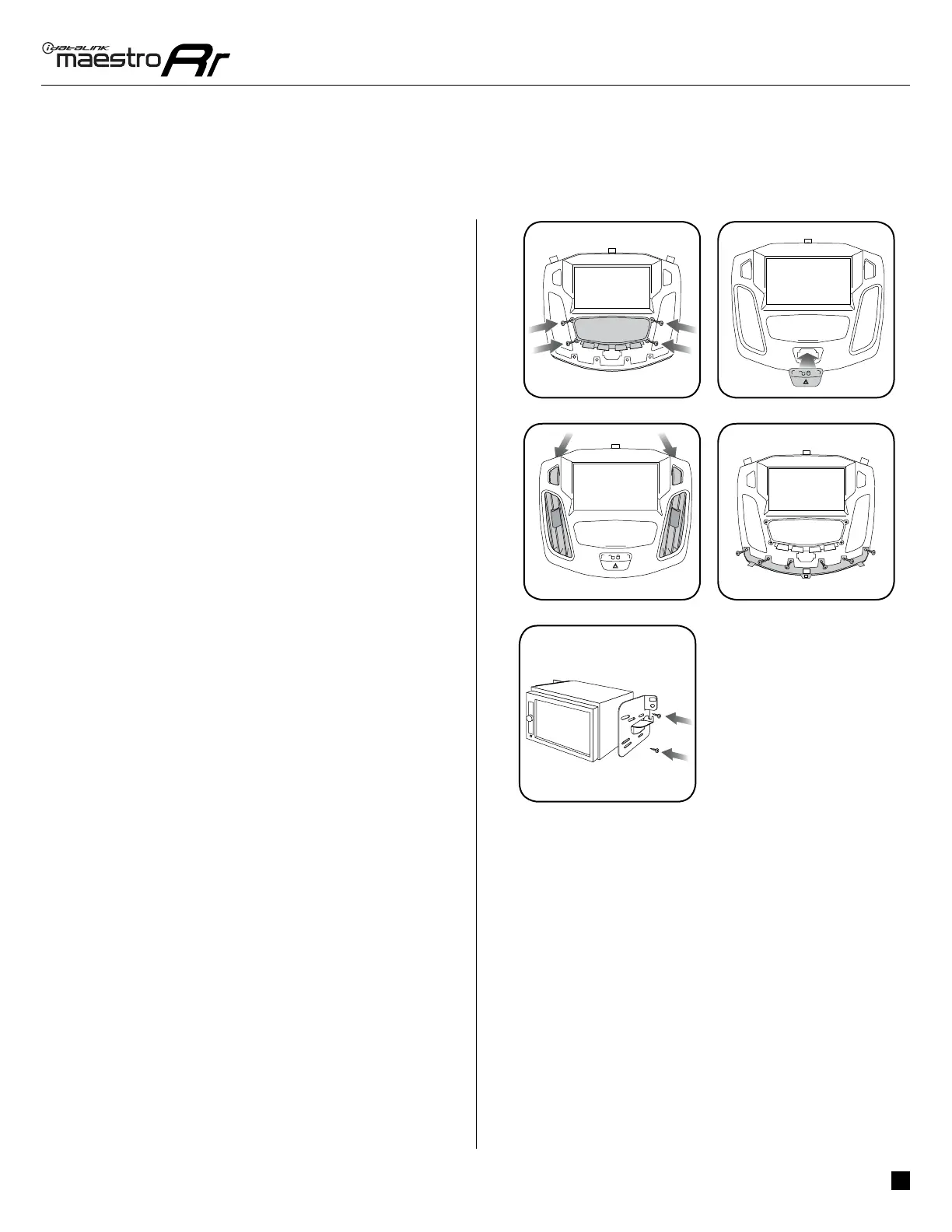

Fig. 2.2
Fig. 2.4Fig. 2.3
Fig. 2.1
Fig. 3.2Fig. 3.1
Fig. 2.5
INSTALLATION INSTRUCTIONS
1
DASh KIT ASSEMBLy
1. Attach the pocket of the FOC1 to the bezel using the four (4)
provided screws. (Fig. 2.1)
NOTE: If the pocket sticks when opening or closing, you
can adjust the fi t by loosening the screws that secure the
pocket by 1/4 turn until the pocket no longer sticks.
2. Install the combination hazard/lock switch into the FOC1
bezel (the other hazard switch is not used). (Fig. 2.2)
NOTE: If the hazard button squeaks when you press it, pop
the hazard switch out of the kit and then re-install it. This
should eliminate the noise.
3. Install the factory vents on the FOC1 kit. (Fig. 2.3)
4. Using the screws provided, attach to the FO1C, the bottom
bezel trim that matches the factory bezel. (There are two
trim pieces that come with the kit, make sure to attach the
style that matches the shape of the underside of the OEM
bezel.) (Fig. 2.4)
5. Install the metal brackets on to the aftermarket radio. (Fig.
2.5)
