Page 21 of 116
©HALE PRODUCTS, INC. Our policy is one of continuous development. We therefore
reserve the right to amend specifications without notice or obligation.
FOAM UNIT 3.3, 5.0, 6.5 SYSTEM – REMOTE MOUNTED

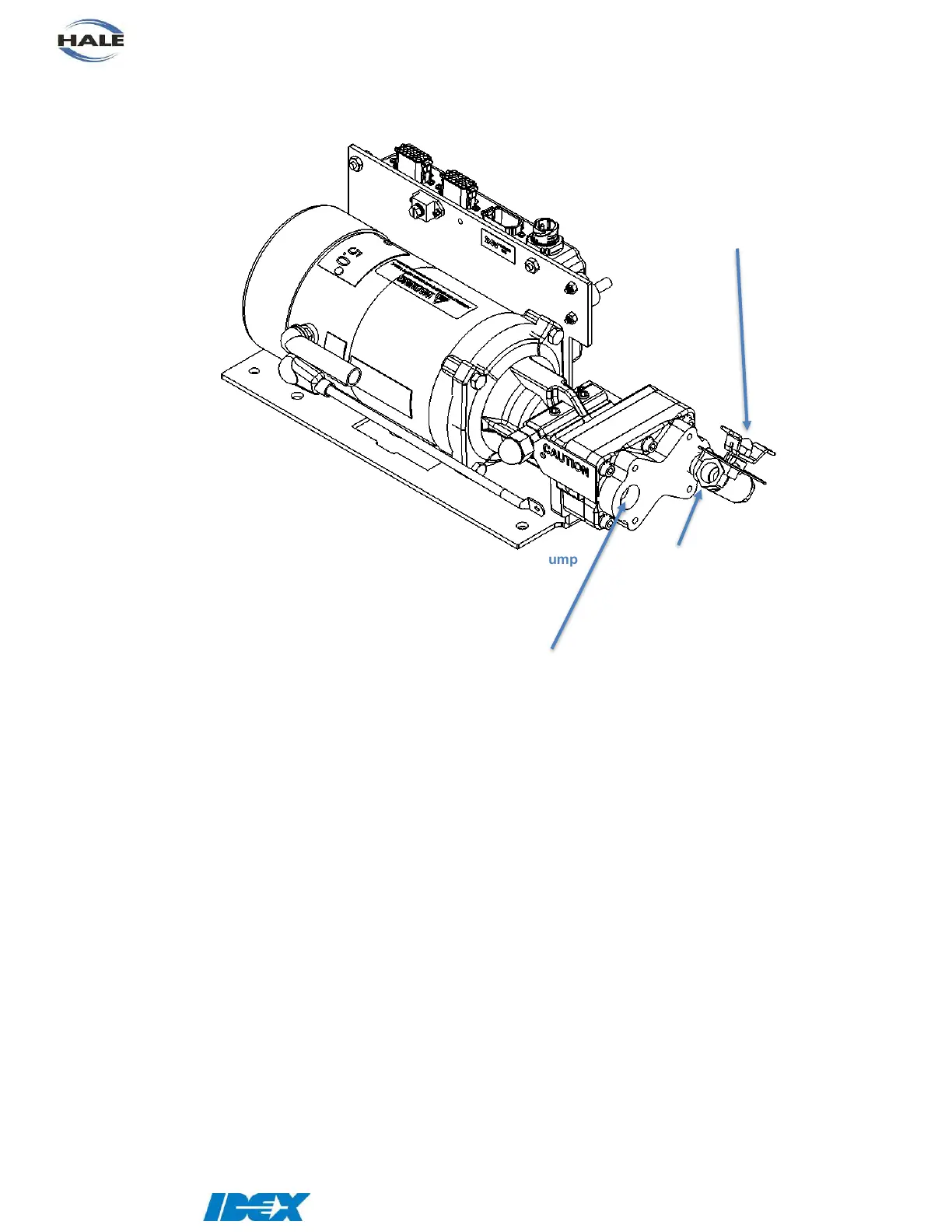

Figure 18: Foam unit 5.0 Pump
Inlet from foam strainer,
Models 3.3, 5.0 – 19mm (3/4inch) NPT
Model 6.5 – 25.4mm (1inch) NPT
Note: Foam tank must be located above
SmartFOAM unit.
Also refer to installation notes in
SmartFOAM manual (FSG-MNL-00158).
To foam injection point on
manifold. 13mm (1/2inch)
NPT Tubing suitable for
300PSI [22.5 bar] pressure
By-pass valve and
connection point
(on reverse of valve)
To Next Page
