INSTALLATION AND INITIAL SET-UP
The following connection points should be considered when installing the DSD SmartCAFS assembly
into a vehicles frame.
LIFTING POINTS
Secure handling of the unit for installation and maintenance is vital. Use only the lifting points noted
below.
• Primary lift point is the main Gearbox mount bracket.
• Front to rear “balance” lift point is the suction manifold.
• Do NOT use the discharge manifold as a lift point.

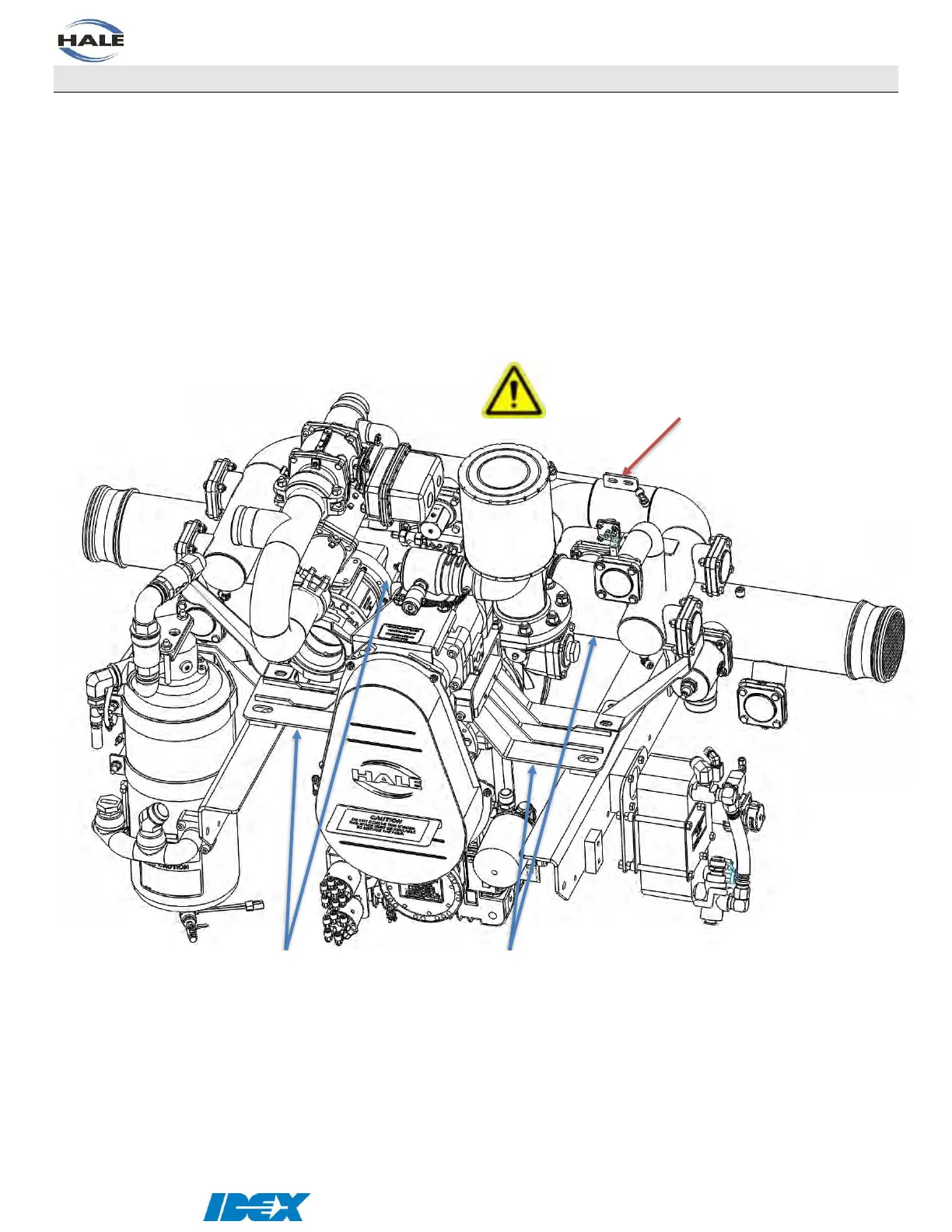

STRAP LIFT POINTS
Main Support Bracket & Suction
Manifold, Inboard of Frame
Mounting Rails.
Discharge Manifold Is NOT To Be
Used To Lift The Pump.
