(i) Foam percentage indicator
The foam percentage indicator shows the foam proportioning rate for the currently selected
tank.
(j) Foam power button

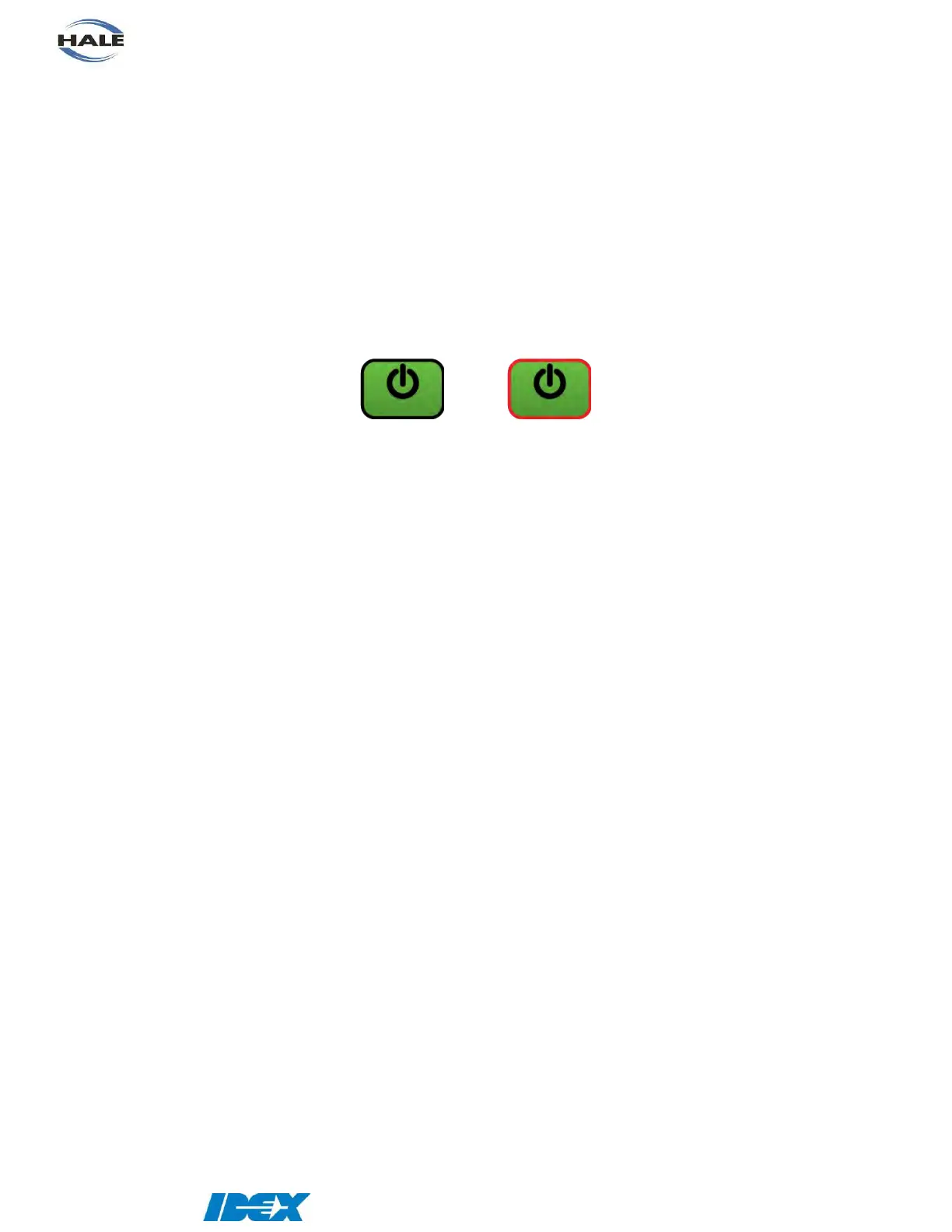

The foam power button turns the foam system OFF or ON. The foam power button’s color
indicates the currently selected foam tank (A green, B red, FLUSH orange). The border of the
power button is black when OFF and red when ON.
(k) Foam increase and decrease buttons
The increase and decrease foam buttons change the foam percentage for the currently
selected foam tank. The color of these buttons indicates the tank selected and foam system
power state:
green = foam system ON, tank A selected
red = foam system ON, tank B selected
gray = foam system OFF
These buttons will modify the foam percentage value even when the foam power button is
OFF.
(l) Air/water pressure duplex gauge
The duplex gauge shows the air and water pressures. The background shows the proper
CAFS operating range in green (75 PSI to 150 PSI). This gauge is only shown when the
additional information is being shown (see section (x)).
(m) Home button
Return to the preset screen.
(n) Current preset
This display shows the currently selected preset name and icon (or “manual” if manual was
selected).
