configuration screen allows the user to select the operating foam tank (A/B), foam percentage,
CAFS mode, and ARC valve position.
The operating screen is entered when a preset button is pressed and held for 0.5 seconds.
The operating mode of the foam and CAFS will be set to the configured preset settings.
(d) Water flow display
The water flow display is always visible and shows the current water flow rate through the
Foam/CAFS discharge manifold.
(e) Home button
This button toggles the display between the Preset Screen and the Operating Screen.
(f) Menu button
This button shows/hides the additional information displays. When this button is pressed and
held for 3 seconds the menu will be displayed.

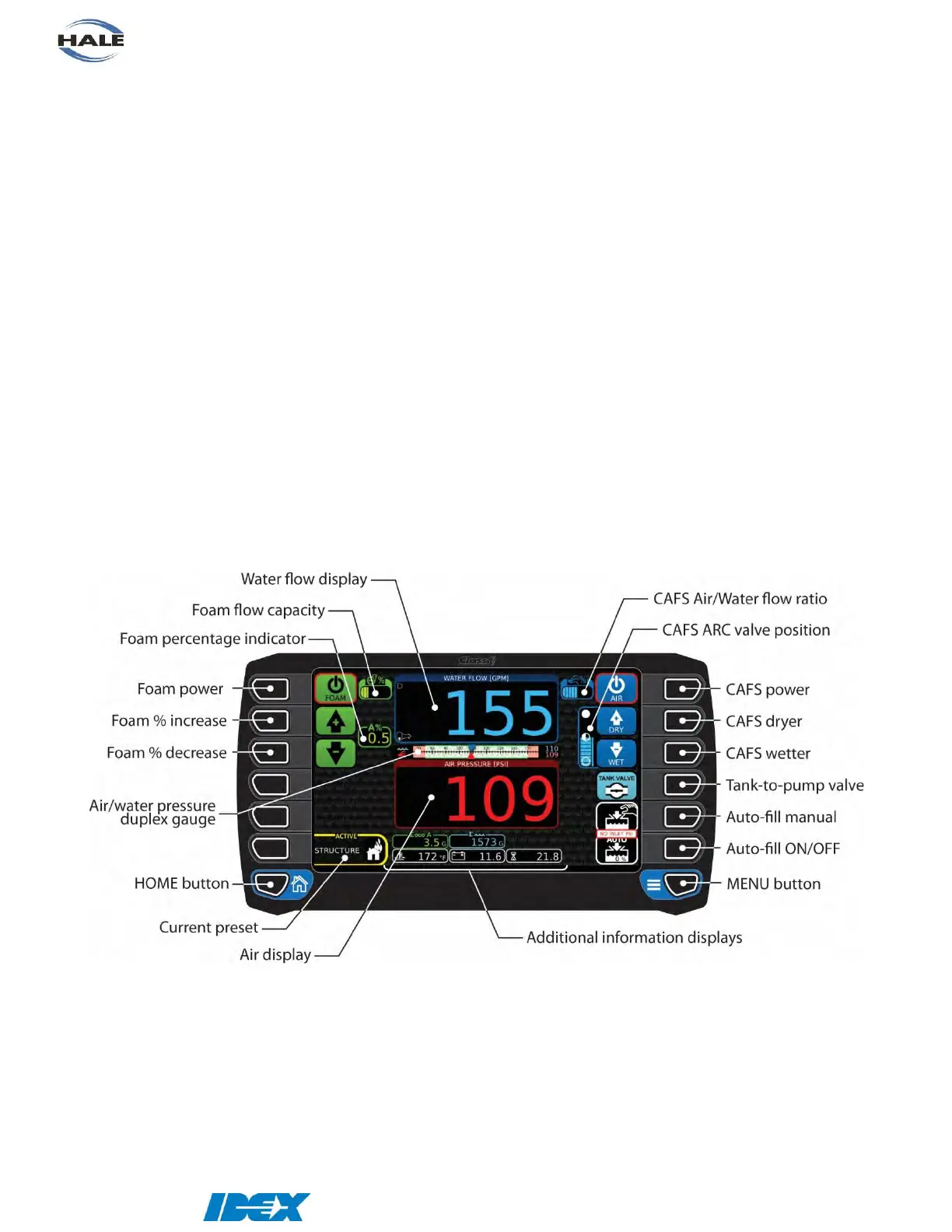

OPERATING SCREEN
The operating screen allows control over the foam, CAFS, and tank valve. The water flow
display is always active, but the air flow display is only shown when the CAFS power is ON.
(g) Water flow display
The water flow display is always visible and shows the current water flow rate through the
Foam/CAFS discharge manifold.
(h) Foam flow capacity
The foam flow capacity is a bar graph that shows how hard the foam pump is working (0% to
100%).
