Chapter 2 Hardware
SMIB Module Connectors

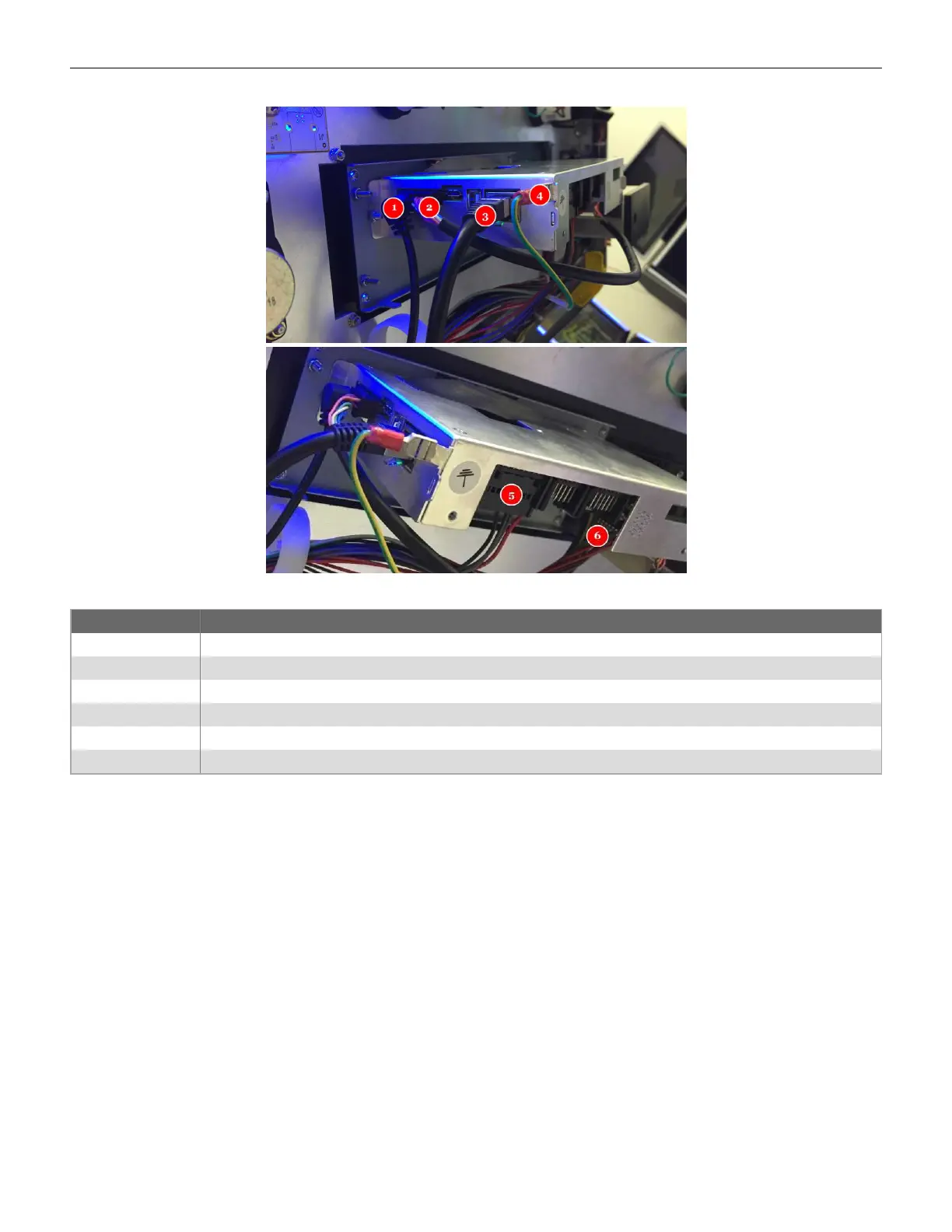

Figure 2-44 SMIB Module Connectors
Label Description
1 Power (to power brick)
2 Connection to Card Reader
3 Ethernet connection to i-LINK Ultra Site Controller network
4 Ground cable
5 Harness to C-Lite Interconnect Board (J1)
6 Harness to C-Lite Interconnect Board (J5)
Cobalt™ 27 59
