Chapter 2 Hardware
SMIB Module Removal
The SMIB Module is secured to the four standoffs on the player tracking plate with four M3 nuts
(two on each side).
1. Disconnect the harnesses connected to the SMIB Module.
2. Remove the mounting hardware to release the SMIB Module from the player tracking plate.

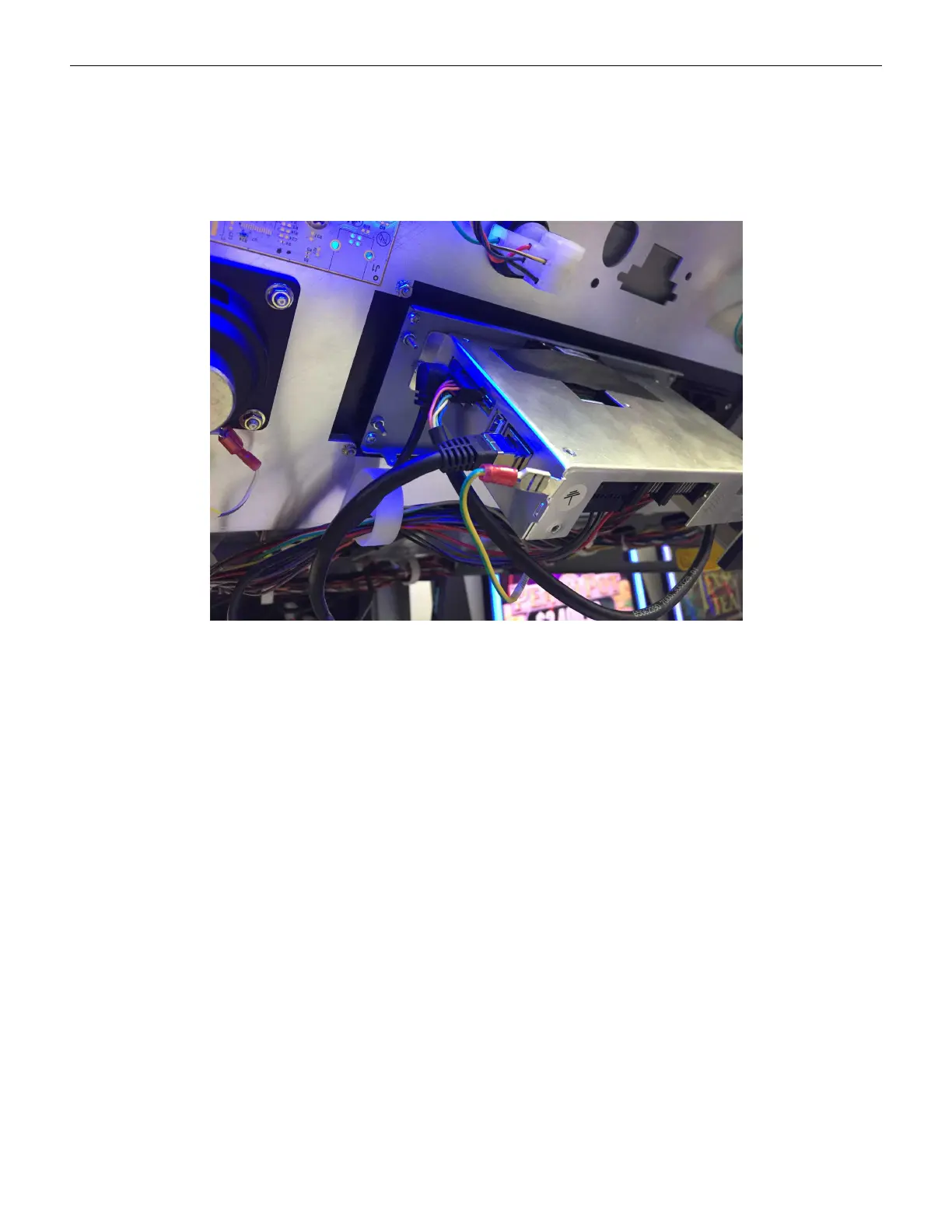

Figure 2-45 SMIB Module Removal
