illumina MiniSeq User Manual

Load the Flow Cell
1 Open the flow cell compartment door.
2 Press the release button to the right of the flow cell latch.

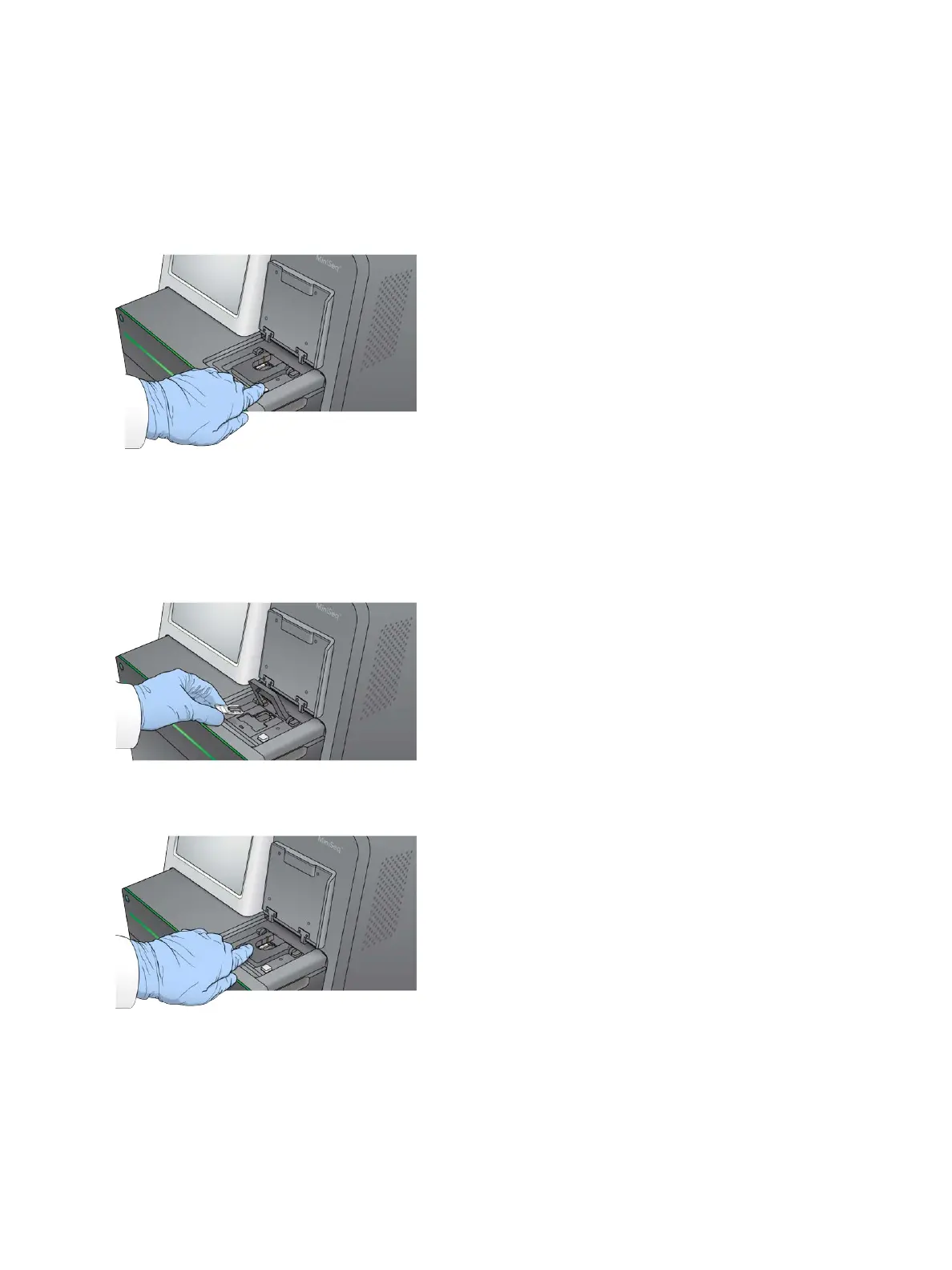

Figure 11 Open Flow Cell Latch
3 If present, remove the used flow cell from a previous run.
4 Make sure that the flow cell stage is clean. If debris is present, clean the flow cell stage with an alcohol
wipe.
5 Place the flow cell on the flow cell stage over the alignment pins.
Figure 12 Place Flow Cell on Stage
6 Close the flow cell latch to secure the flow cell.
Figure 13 Close Flow Cell Latch
7 Close the flow cell compartment door.
Load the Reagent Cartridge
1 Open the reagent compartment door.
Document # 1000000002695 v02 Material # 20014309
For Research Use Only. Not for use in diagnostic procedures.
21
MiniSeq System Guide

illumina MiniSeq Specifications

General

Instrument Type	Benchtop Sequencer
Sequencing Technology	Sequencing by Synthesis (SBS)
Read Length	Up to 2 x 150 bp
Output	Up to 7.5 Gb
Run Time	4 - 24 hours
Data Quality	≥ 80% bases ≥ Q30
Maximum Reads	25 million
Sample Capacity	1
Applications	Targeted Gene Sequencing, Small Genome Sequencing, Amplicon Sequencing, Gene Expression Profiling
Power Requirements	100-240 V, 50-60 Hz
Operating Temperature	19°C to 25°C
Operating Humidity	Non-condensing, 20% to 80% RH
