illumina MiniSeq User Manual

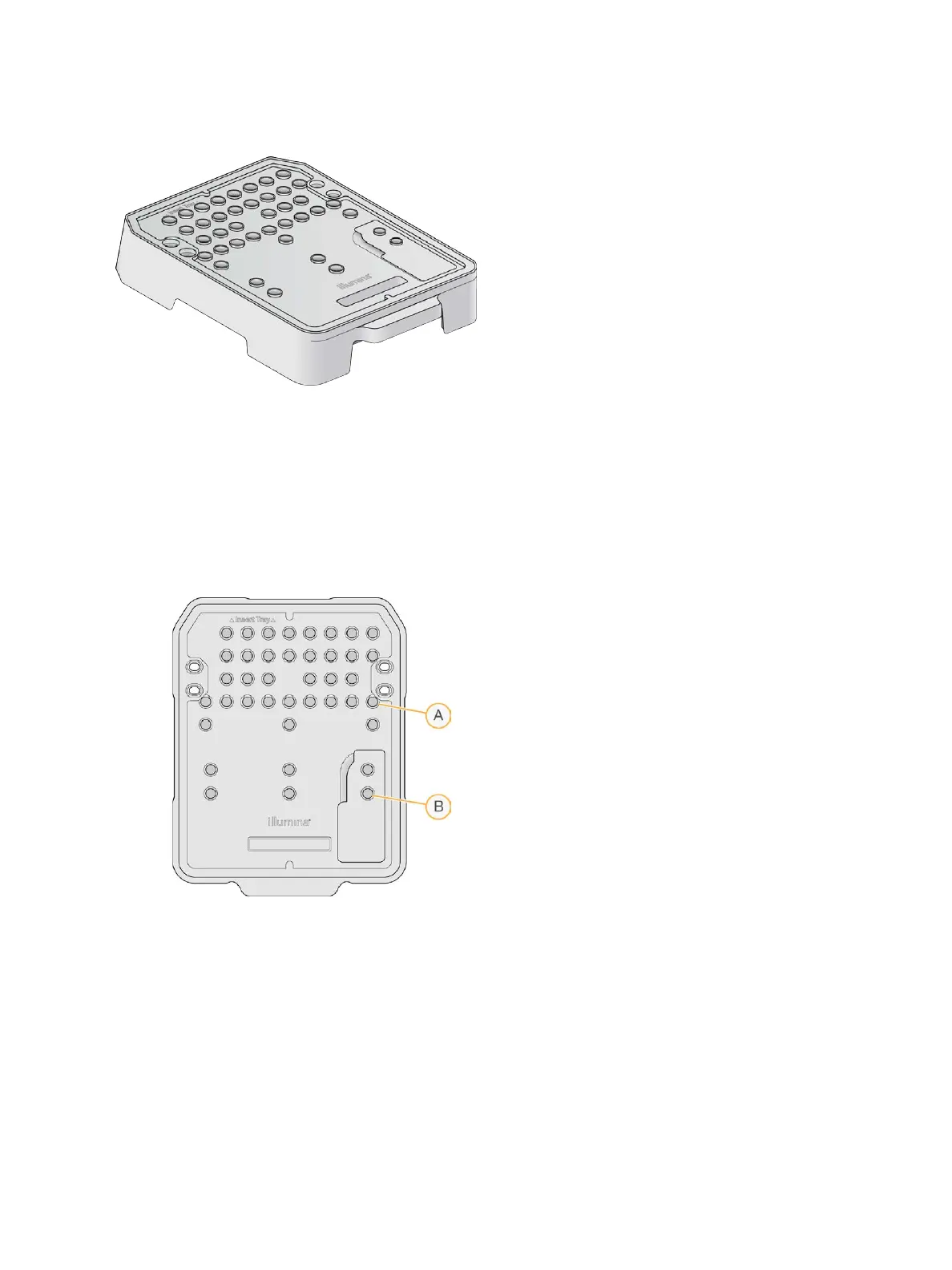

Figure 26 Wash Cartridge
Prepare for a Manual Post-Run Wash
1 Combine the following volumes to result in 0.12% NaOCl.
u 5% NaOCl (31µl)
u Laboratory-grade water (1269 µl)
2 Add 1.3 ml of 0.12% NaOCl to the wash cartridge.
The correct reservoir is equivalent to position #31 on the prefilled reagent cartridge.
Figure 27 Positions for NaOCl and Wash Solution
A 0.12% NaOCl
B Wash solution
3 Combine the following volumes to result in a 0.05% Tween 20 wash solution.
u 100% Tween 20 (40 µl)
u Laboratory-grade water (80 ml)
4 Add 80 ml wash solution to the wash cartridge.
The correct reservoir is equivalent to position #40 on the prefilled reagent cartridge.
5 From the Home screen, select Perform Wash, and then select Manual post-run wash.
Document # 1000000002695 v02 Material # 20014309
For Research Use Only. Not for use in diagnostic procedures.
33
MiniSeq System Guide

illumina MiniSeq Specifications

General

Instrument Type	Benchtop Sequencer
Sequencing Technology	Sequencing by Synthesis (SBS)
Read Length	Up to 2 x 150 bp
Output	Up to 7.5 Gb
Run Time	4 - 24 hours
Data Quality	≥ 80% bases ≥ Q30
Maximum Reads	25 million
Sample Capacity	1
Applications	Targeted Gene Sequencing, Small Genome Sequencing, Amplicon Sequencing, Gene Expression Profiling
Power Requirements	100-240 V, 50-60 Hz
Operating Temperature	19°C to 25°C
Operating Humidity	Non-condensing, 20% to 80% RH
