Cameras are numbered 1–6. Cameras 1–3 image lane 1. Cameras 4–6 image lane 3. After lanes 1 and 3
are imaged, the imaging module moves on the X-axis to image lanes 2 and 4.

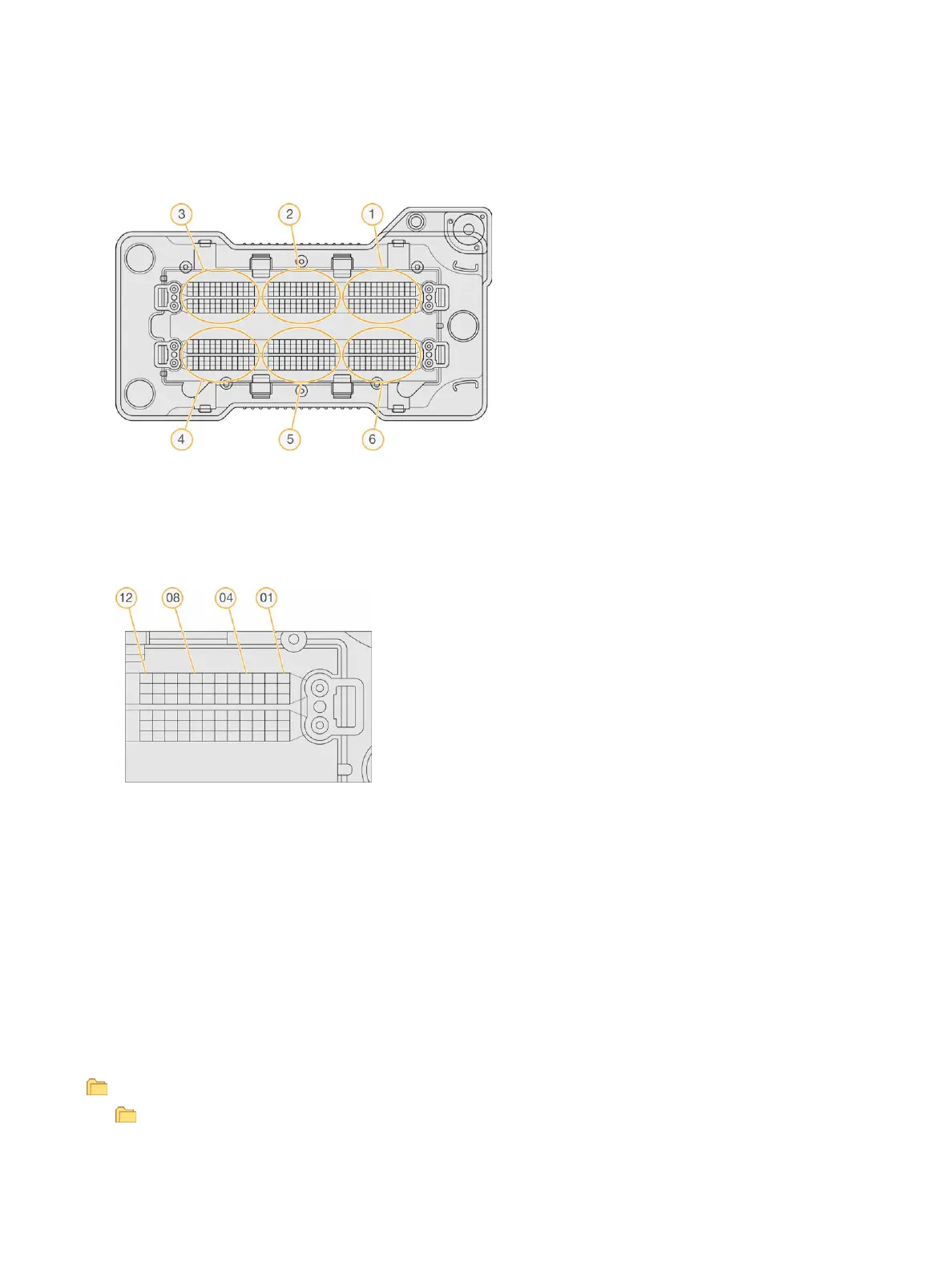

Figure 33 Camera and Segment Numbering (High output flow cell shown)
Tile Numbering
There are 12 tiles in each swath of each camera segment. Tiles are numbered 01–12, regardless of
swath number or camera segment, and represented in 2 digits.
Figure 34 Tile Numbering
The complete tile number includes 5 digits to represent the location, as follows:
u Surface—1 represents the top surface; 2 represents the bottom surface
u Swath—1, 2, or 3
u Camera—1, 2, 3, 4, 5, or 6
u Tile—01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, or 12
Example: Tile number 12508 indicates top surface, swath 2, camera 5, and tile 8.
The complete 5-digit tile number is used in the file name of thumbnail images and empirical phasing
files. For more information, see
Sequencing Output Files
on page 59.
Sequencing Output Folder Structure
The control software generates the output folder name automatically.
Data
Intensities
Document # 1000000041922 v01
For Research Use Only. Not for use in diagnostic procedures.
61
NextSeq 550Dx Research Mode Instrument Reference Guide
