6 Save the DMAP folder to the specified DMAP folder location.
Access DMAP Folder by BeadChip
1 Identify BeadChips using 2 of the following options:
u BeadChip barcode
u BeadChips box ID
u Purchase order number
u Sales order number
2 Locate the DMAP folder that you want to download.
3 Make sure that you have sufficient free space on the download destination.
4 Start the download. View the download status on the Download Status and Log tab.
5 Save the DMAP folder to the specified DMAP folder location.
Load the BeadChip Onto the Adapter
1 Press down on the adapter retention clip. The clip tilts back slightly to open.
2 Holding the BeadChip by the edges, position the BeadChip with the barcode near the retention clip
and place the BeadChip onto the recessed shelf of the adapter.

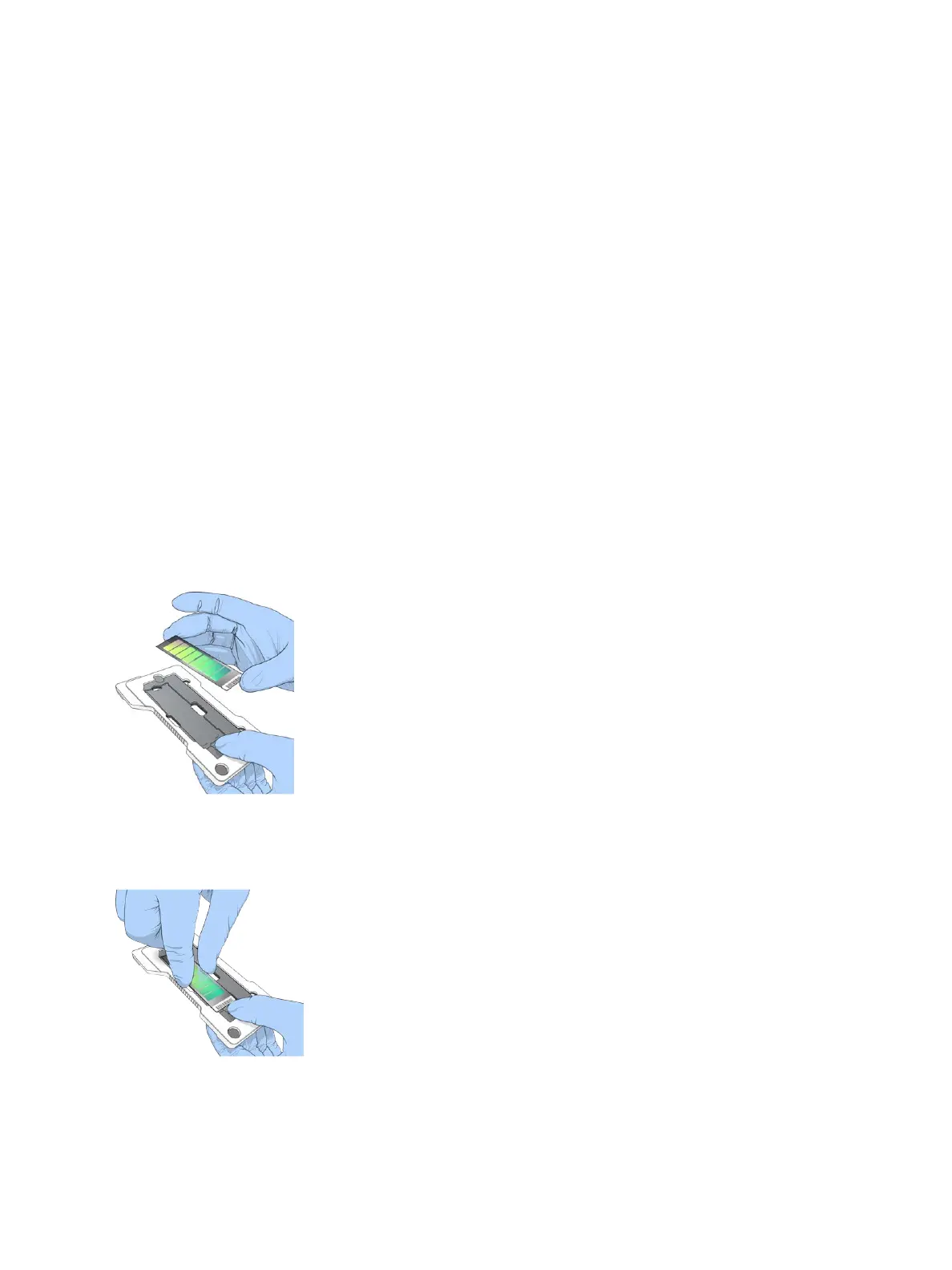

Figure 20 Load BeadChip Onto Adapter
3 Using the openings on either side of the BeadChip, make sure that the BeadChip is seated in the
recessed shelf of the adapter.
Figure 21 Seat and Secure BeadChip
4 Gently release the retention clip to secure the BeadChip.
5 Inspect the BeadChip from a side view to make sure that the BeadChip is sitting flat on the adapter.
Reposition the BeadChip, if necessary.
Document # 1000000041922 v01
For Research Use Only. Not for use in diagnostic procedures.
29
NextSeq 550Dx Research Mode Instrument Reference Guide
