Immergas MAGIS COMBO V2 - Audax Pro V2 Minimum Installation Distances (Several Appliances)

MAGIS COMBO V2
10
(Unit: mm)
N.B.: The spaces shown must be left free to allow air to
circulate and to ensure accessibility for repairs or maintenance
on every side of the units. In fact, it must be possible to
disassemble all the unit components under the utmost safety
conditions (both for objects and for people).
In addition:
- the unit must be installed in a position protected from snow
falling from above. If this is not possible, you must at least
prevent the snow from clogging the air/coolant exchanger
(even by constructing a small protective roof for the unit, if
necessary);
- the eects of the wind can be minimised by installing the unit
with the intake side facing a wall;
- the unit must not be installed with the intake side against the
wind;
- the eects of the wind can be further minimised by installed
a deector plate facing the unit air ow side (not supplied).

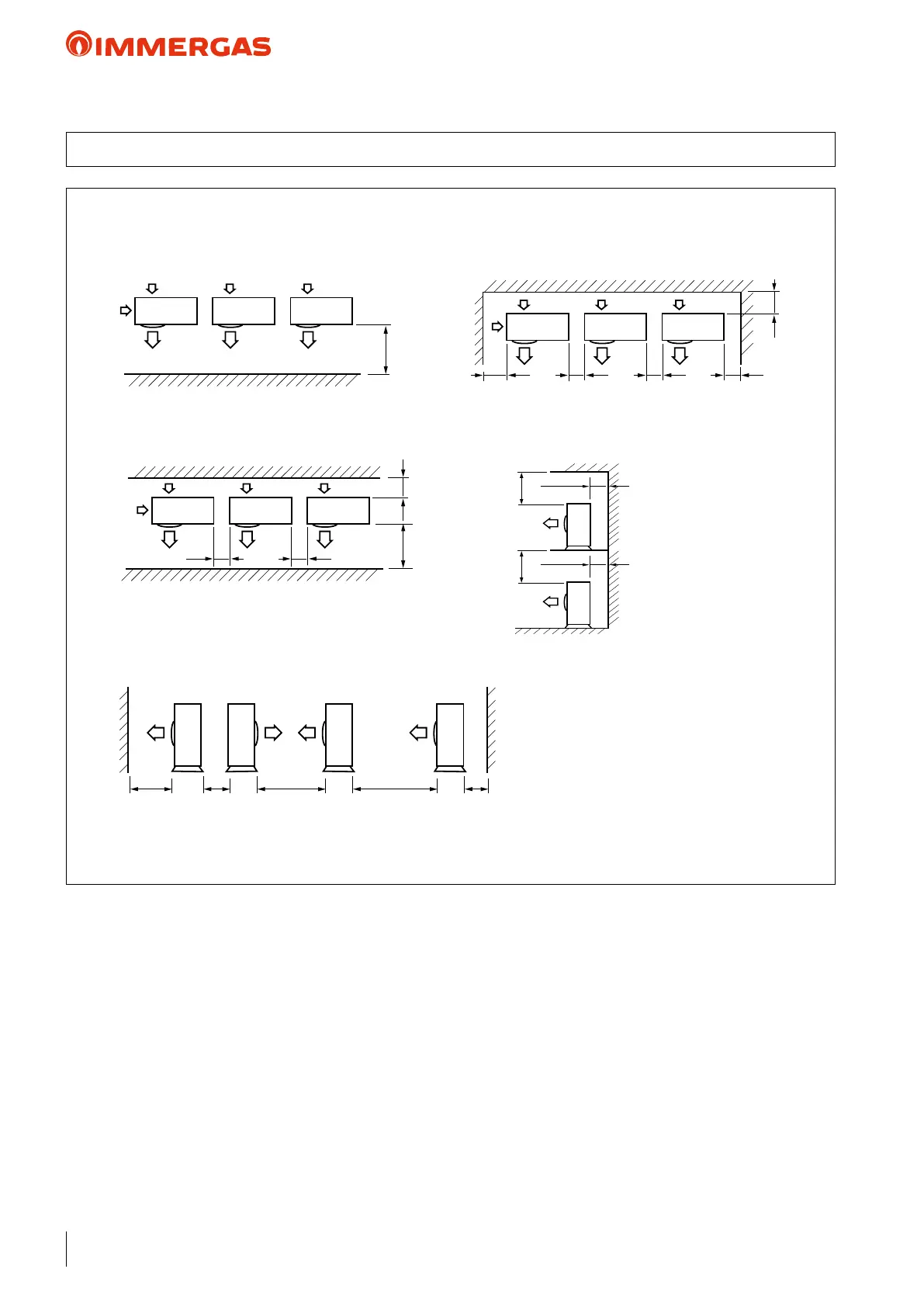

With the top and back sides
of the units facing a wall
With three sides of the units facing a wall
With the units facing each other and with the front and back
sides of the end units facing a wall
With the front and back sides of the units
facing a wall
e front side of the unit facing a wall
6 AUDAX PRO V2 MINIMUM INSTALLATION DISTANCES SEVERAL APPLIANCES
1500 min.
300 min.
300 min. 600 min. 600 min. 600 min.
300 min.1500 min.
600 min.
600 min.
500 min.
500 min.
300 min.
300 min.
1500 min. 600 min. 3000 min. 300 min.3000 min.
