Immergas MAGIS COMBO V2 - Magis Combo V2 Main Components (Indoor Unit)

MAGIS COMBO V2
13
37 - Burner
38 - System expansion vessel
39 - Heat generator return probe
40 - DHW probe
19 - One-way valve
20 - Air vent valve
21 - System pressure switch
22 - Heat generator circuit circulator
23 - Heat generator three-way valve
24 - 3 bar safety valve
25 - System shut-o cock
26 - System draining tting
27 - System shut-o cock with lter
28 - System lling cock
29 - DHW plate heat exchanger
30 - Domestic hot water inlet cock
31 - D.H.W. ow switch
32 - Air vent valve
33 - Condensate drain trap
34 - Gas interception cock
35 - Liquid phase detection probe
36 - Water - gas plate exchanger
KEY:
1 - Gas valve
2 - One-way valve
3 - Heat pump circuit circulator
4 - Heat pump ow probe
5 - Heat generator ow probe
6 - Safety thermostat
7 - Detection electrode
8 - System ow-meter
9 - Flange with sample points
10 - Flue gas thermofuse
11 - Heat exchanger safety thermofuse
12 - Condensation module
13 - Ignition electrode
14 - Venturi
15 - Gas nozzle
16 - Igniter
17 - Fan
18 - Air intake pipe

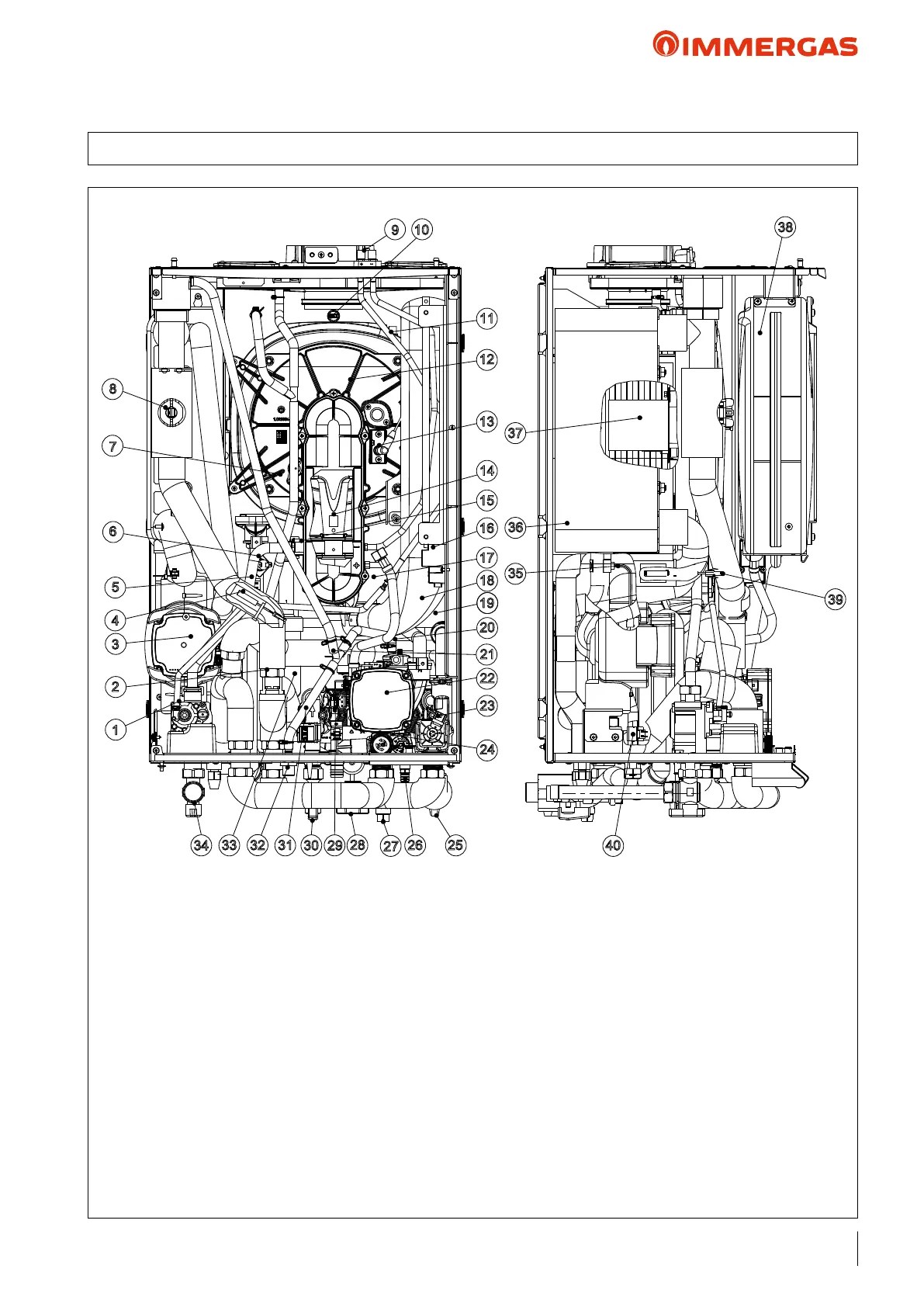

9 MAGIS COMBO V2 MAIN COMPONENTS INDOOR UNIT
