Immergas MAGIS COMBO V2 - Drain Holes and Condensate Drain

MAGIS COMBO V2
11
30 mm

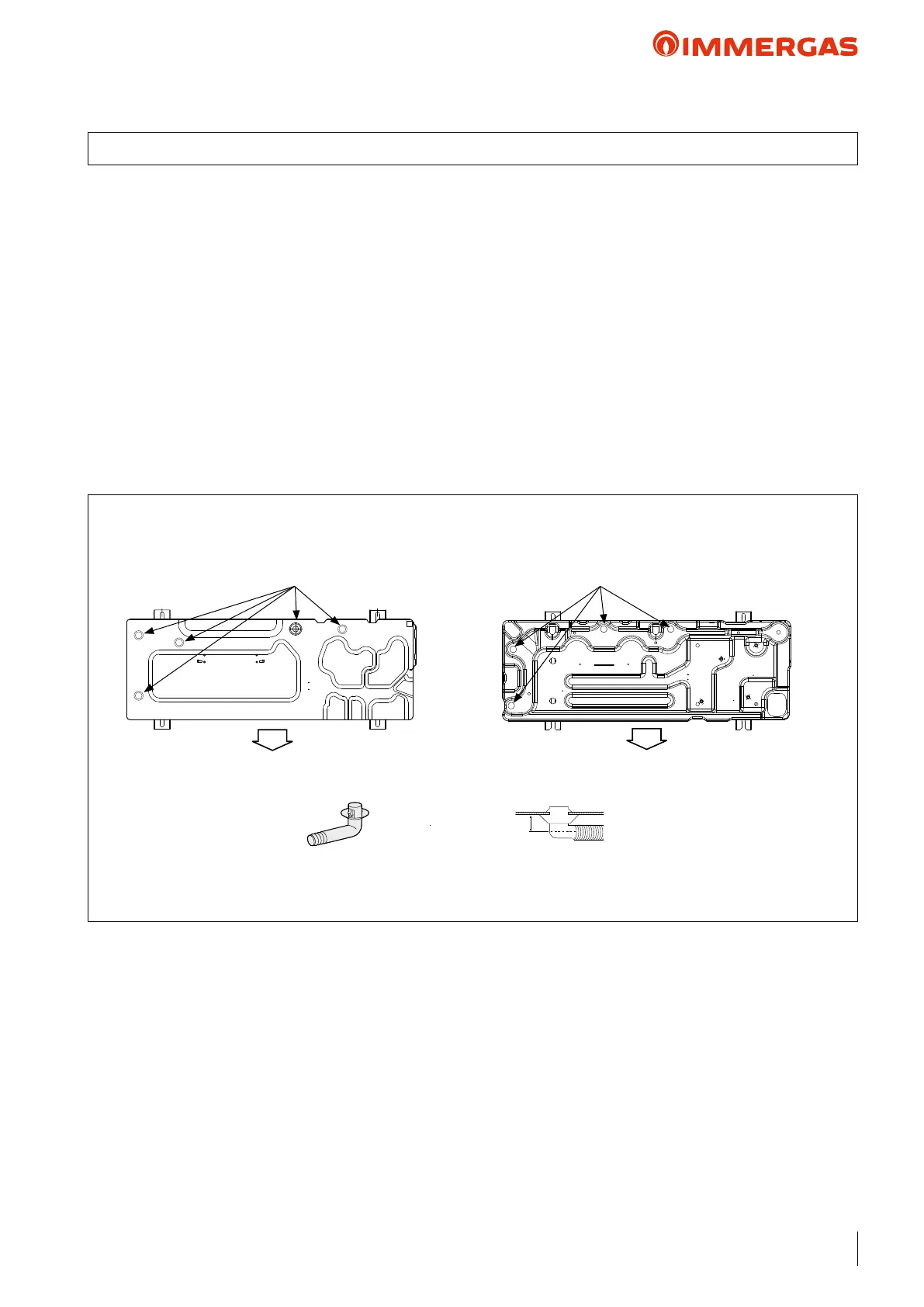

If the produced condensate is drained through the drain pipe,
connect the standard supplied drain tting (1) in one of the
drainage holes on the bottom of the appliance and close the
other holes with drain plugs (see drawings below) and use the
drain pipe (16 mm internal diameter) commercially available so
that it conveys the water to the desired location. In the event of
installation in very cold zones or zones subject to heavy snow
where the condensate drain pipe can freeze, take the necessary
precautions to keep the drainage holes or the condensate drain
pipe free.
N.B.: If the water produced by the unit is not properly drained,
the performance of the entire system will suer a negative impact
and the system itself could be damaged.
Air ow side
AUDAX PRO 9 V2AUDAX PRO 4 - 6 V2
Ø20 drainage hole (in 5 positions)
Ø20 drainage hole (in 4 positions)
Air ow side
Drainage tting (1)
7 DRAIN HOLES AND CONDENSATE DRAIN
