Immergas MAGIS COMBO V2 - Electric Connection Cables Features

MAGIS COMBO V2
23
*
1 phase
2 conductors
230 Vac
1 phase
2 conductors
230 Vac

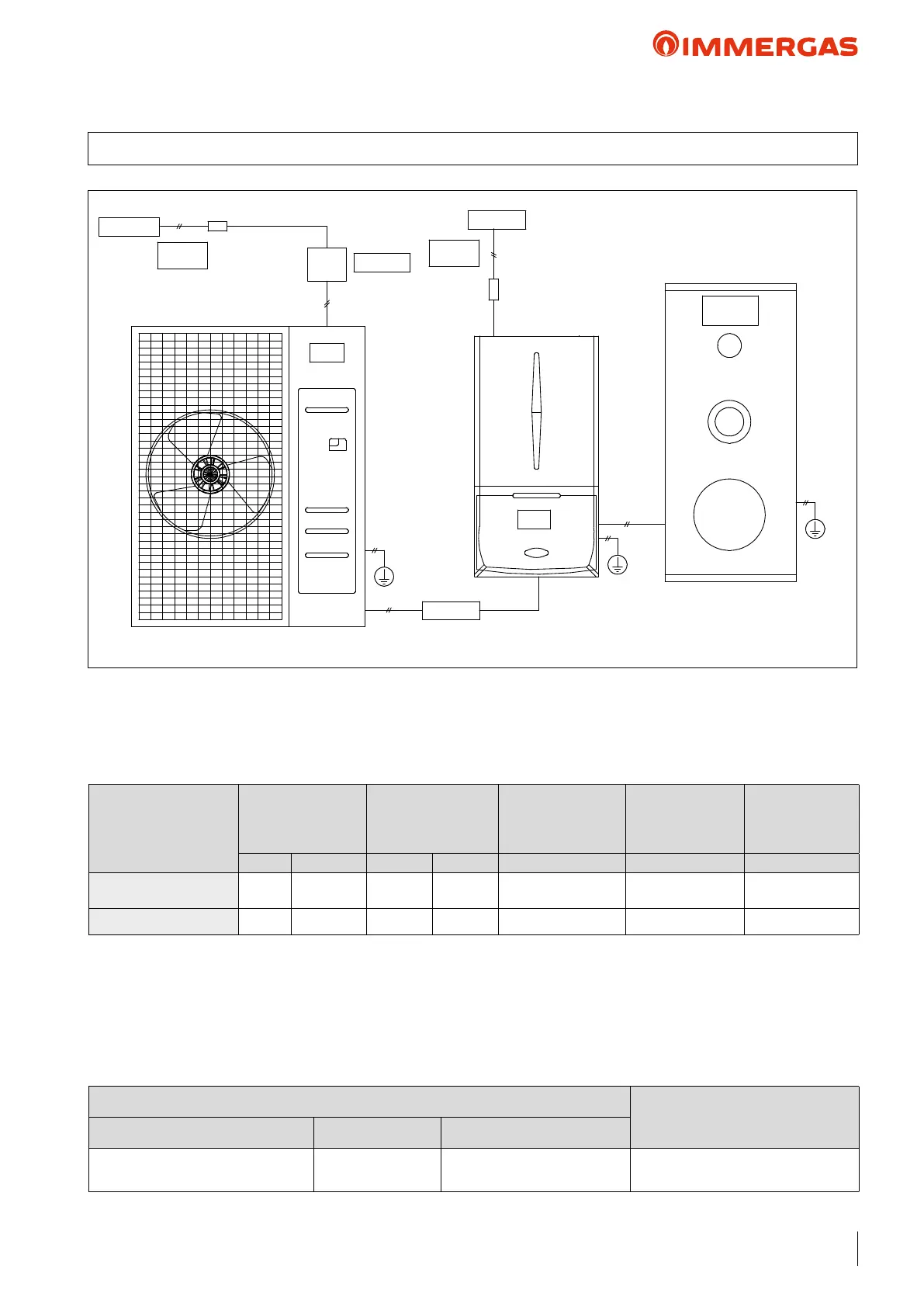

UNIT SUPPLY
VOLTAGE
DOMESTIC HOT
WATER TANK
COMMUNICATION
CABLE
INDOOR
UNIT
OUTDOOR
UNIT
PROTECTION UNIT
OUTDOOR UNIT
SUPPLY VOLTAGE
Outdoor Unit
Nominal Values
Field of Tolerable
Voltage
Maximum absorbed
current (MAC) in
normal operation
MAC✴1.25 +
Additional Load
Flow rate of the
protective device
required for the
device
Hz V V V A A A
AUDAX PRO 4 and
6 V2
50 220 - 240 198 264 16 20.0 20
AUDAX PRO 9 V2 50 220 - 240 198 264 22 27.5 32
Features of the connection between outdoor and indoor units.
Use H07RN-F or H05RN-F class cables to power the indoor
unit.
If the indoor unit is installed in a room with a computer or in-
ternet server, you must use a double shielded FROHH2R class
cable (Aluminium tape/Polyester + Copper braid).
MAGIS COMBO V2 (Indoor unit) supply voltage
BUS Communication cable
between outdoor unit and indoor unit
Power supply Max./Min.(V) Connection cable
Mono-phase,
220-240V, 50Hz
±10% 0,75 ~ 1.5 mm², 3 wires 0,75 ~ 1.5 mm², 2 wires
or FG 16). Indicatively, the appropriate cable section can be
2.5 ~ 4 mm
2
for AUDAX PROX 4 and 6 V2 and of 4 ~ 6 mm
2
for AUDAX PRO 9 V2 to be checked depending on the specic
installation conditions.
Features of the indoor unit connection. e outdoor unit
power cable (not standard supplied) must be suitable for outdoor
installation and must have at least a exible polychloroprene
sheath (code IEC:60245 IEC 57 / CENELEC:H05RN-F
17 ELECTRIC CONNECTION CABLES FEATURES
* Example PLUS model
