Immergas MAGIS COMBO V2 - Magis Combo Plus V2 Main Components (Indoor Unit)

MAGIS COMBO V2
14
37 - Burner
38 - System expansion vessel
39 - Heat generator return probe
19 - Air intake pipe
20 - One-way valve
21 - Air vent valve
22 - System pressure switch
23 - Heat generator circuit circulator
24 - Heat generator three-way valve
25 - System shut-o cock
26 - System draining tting
27 - System shut-o cock with lter
28 - 3 bar safety valve
29 - System lling cock
30 - Domestic hot water inlet cock
31 - Air vent valve
32 - By-pass pipe
33 - Gas interception cock
34 - Heat pump ow probe
35 - Liquid phase detection probe
36 - Water-gas plate exchanger
KEY:
1 - Gas valve
2 - Heat pump circuit circulator
3 - Condensate drain trap
4 - ree-way valve
5 - 3-way valve motor
6 - DHW probe
7 - Safety thermostat
8 - Gas nozzle
9 - Detection electrode
10 - System ow-meter
11 - Flue gas thermofuse
12 - Flange with sample points
13 - Heat exchanger safety thermofuse
14 - Condensation module
15 - Ignition electrode
16 - Venturi
17 - Fan
18 - Igniter

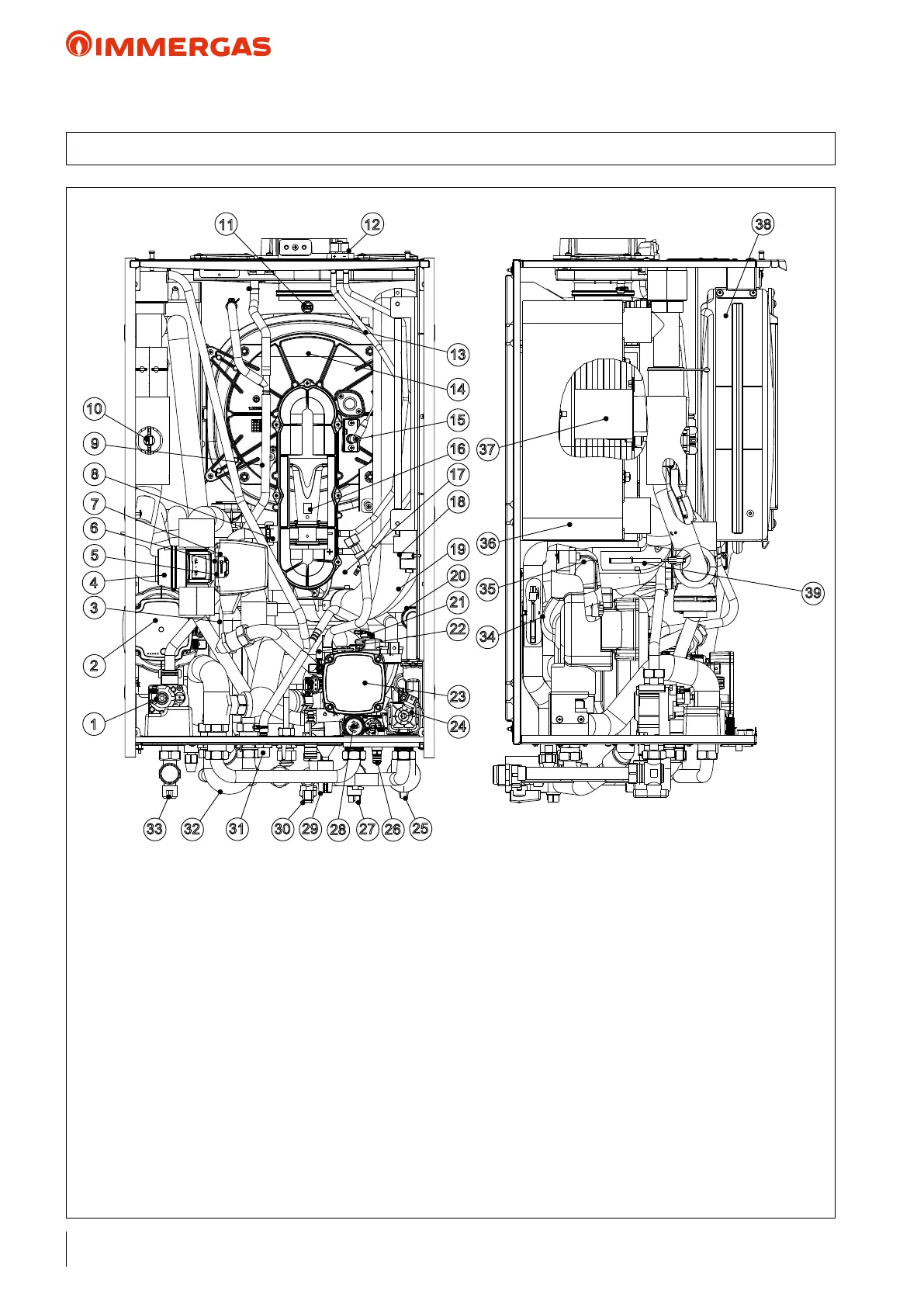

10 MAGIS COMBO PLUS V2 MAIN COMPONENTS INDOOR UNIT
1
2
3
4
6
5
7
8
9
10
12
11
14
13
15
16
17
18
19
20
21
22
23
24
25
26
27 30
31 29
28
33
37
36
35
34
38
39
32
