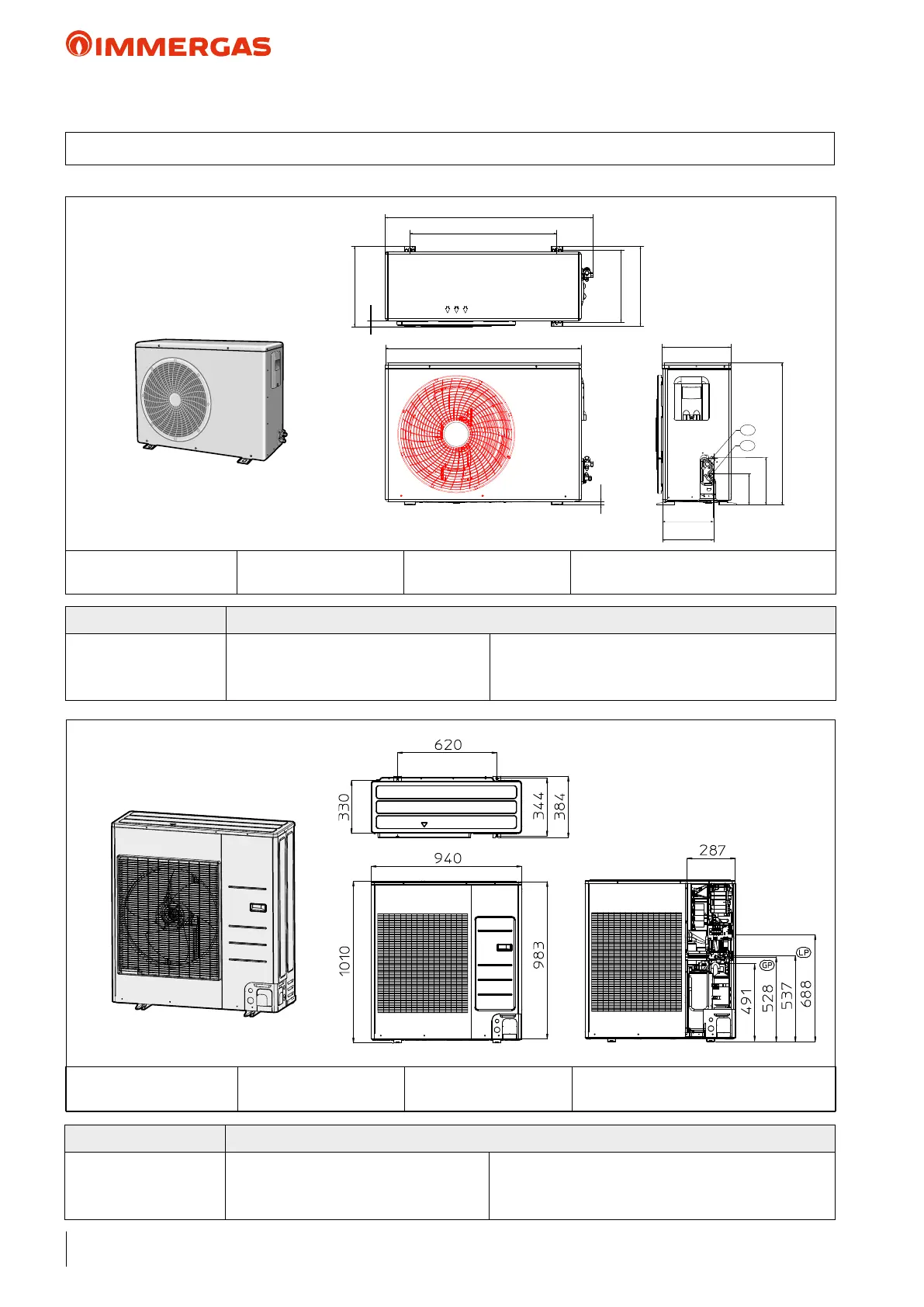

Immergas MAGIS COMBO V2 - Audax Pro V2 Dimensions and Connections (Condensing Unit)

MAGIS COMBO V2
6
AUDAX PRO 9 V2
Height = 1010 mm Width = 940 mm Depth = 384 mm Condensate drain = Ø 20 mm
Height = 638 mm Width = 880 mm Depth = 361 mm Condensate drain = Ø 20 mm
R32
Model
AUDAX PRO 4/6 V2
LP (Cooling liquid)
1/4" (6.35 mm)
GP (Gaseous liquid)
5/8" (15.88 mm)
R32
Model
AUDAX PRO 9 V2
LP (Cooling liquid)
1/4" (6.35 mm)
GP (Gaseous liquid)
5/8" (15.88 mm)
AUDAX PRO 4 / 6 V2
2 AUDAX PRO V2 DIMENSIONS AND CONNECTIONS (CONDENSING UNIT)
26
15
139
211
638
358
361
880
310
229
934
231
LP
GP
660
340
