Immergas VICTRIX OMNIA - Main Dimensions

12
INSTALLERUSERMAINTENANCE TECHNICIANTECHNICAL DATA

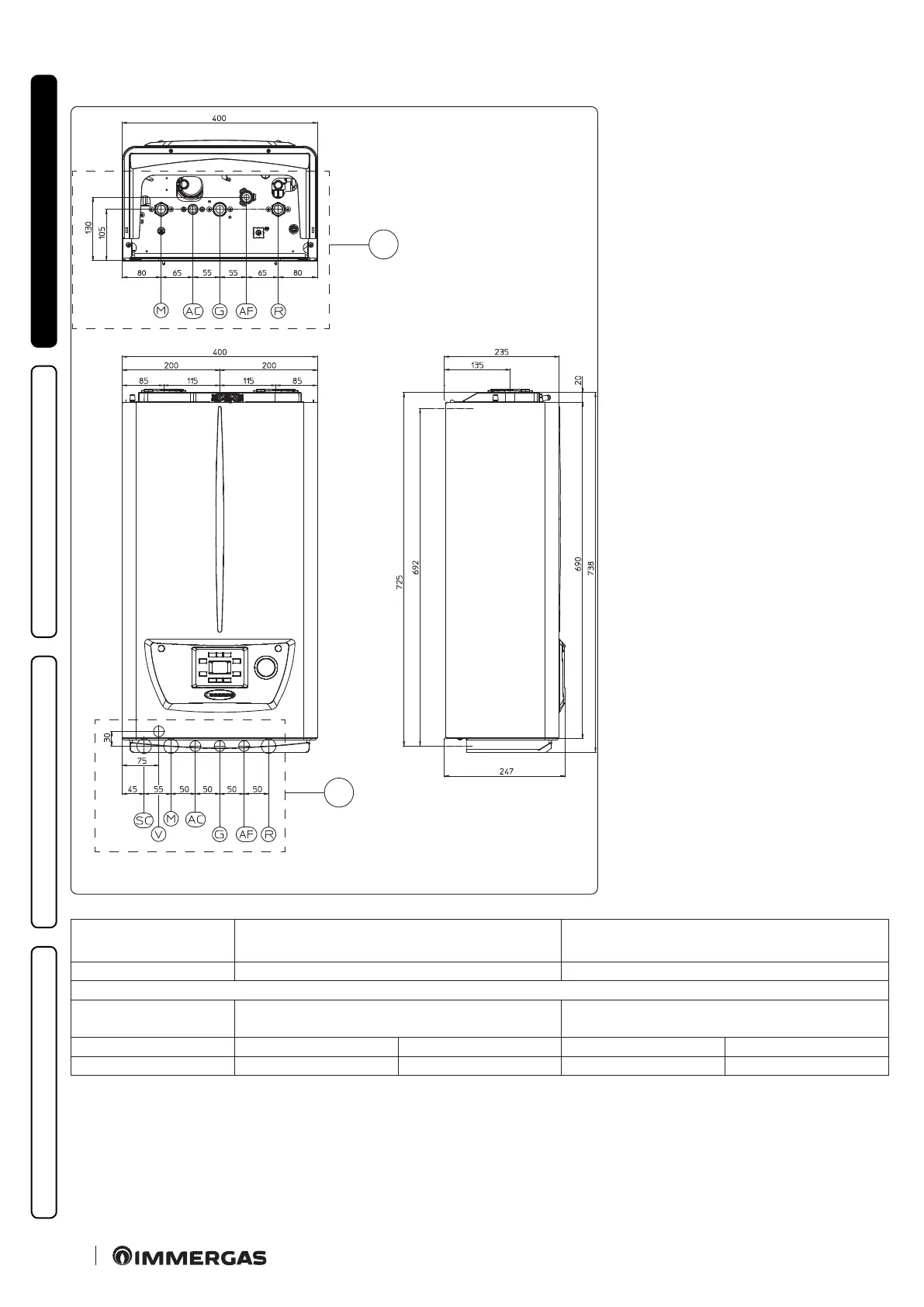

1.2 MAIN DIMENSIONS
1
2
2
Key (Fig. 2):
V - Electric connection
M - System ow
SC - Condensate drain (minimum inter-
nal diameter Ø 13 mm)
AC - Domestic hot water outlet
G - Gas supply
AF - Domestic hot water inlet
R - System return
1 - Boiler direct hydraulic connection
2 - Wall-mounted hydraulic connec-
tion with Immergas DIN template
Height
(mm)
Width
(mm)
Depth
(mm)
738 400 247
CONNECTIONS
GAS
DOMESTIC HOT
WATE R
SYSTEM
G AC AF R M
3/4" 1/2" 1/2" 3/4" 3/4"
