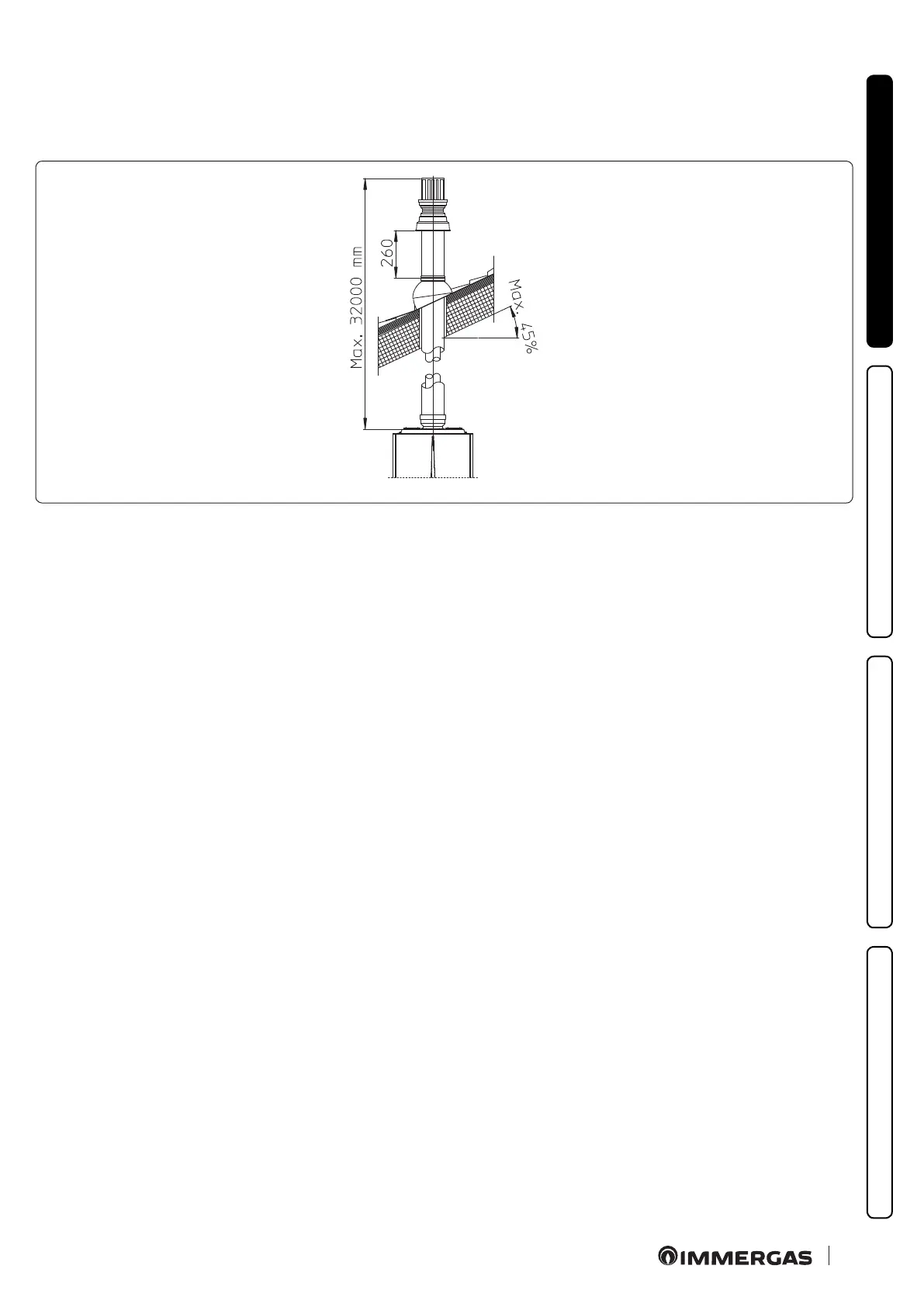

Extensions for Ø 80/125 vertical kit (Fig. 25)
e kit with this conguration can be extended to a max. straight vertical length of 32 m, including the terminal. If additional compo-
nents are assembled, the length equivalent to the maximum allowed must be subtracted. In this case the special extensions must be re-
quested.
C
33
25
1.18 SEPARATOR KIT INSTALLATION
Type C conguration, sealed chamber and fan assisted, separator kit Ø 80/80
is kit allows air to come in from outside the building and the exhaust to exit from the chimney, ue or intubated duct through divided
ue exhaust and air intake pipes.
Combustion products are expelled from pipe (S) (in plastic, so as to resist acid condensate).
Air is taken in through duct (A) for combustion (this is also in plastic).
e intake pipe (A) can be installed either on the right or le hand side of the central exhaust pipe (S).
Both ducts can be routed in any direction.
