34
INSTALLERUSERMAINTENANCE TECHNICIANTECHNICAL DATA

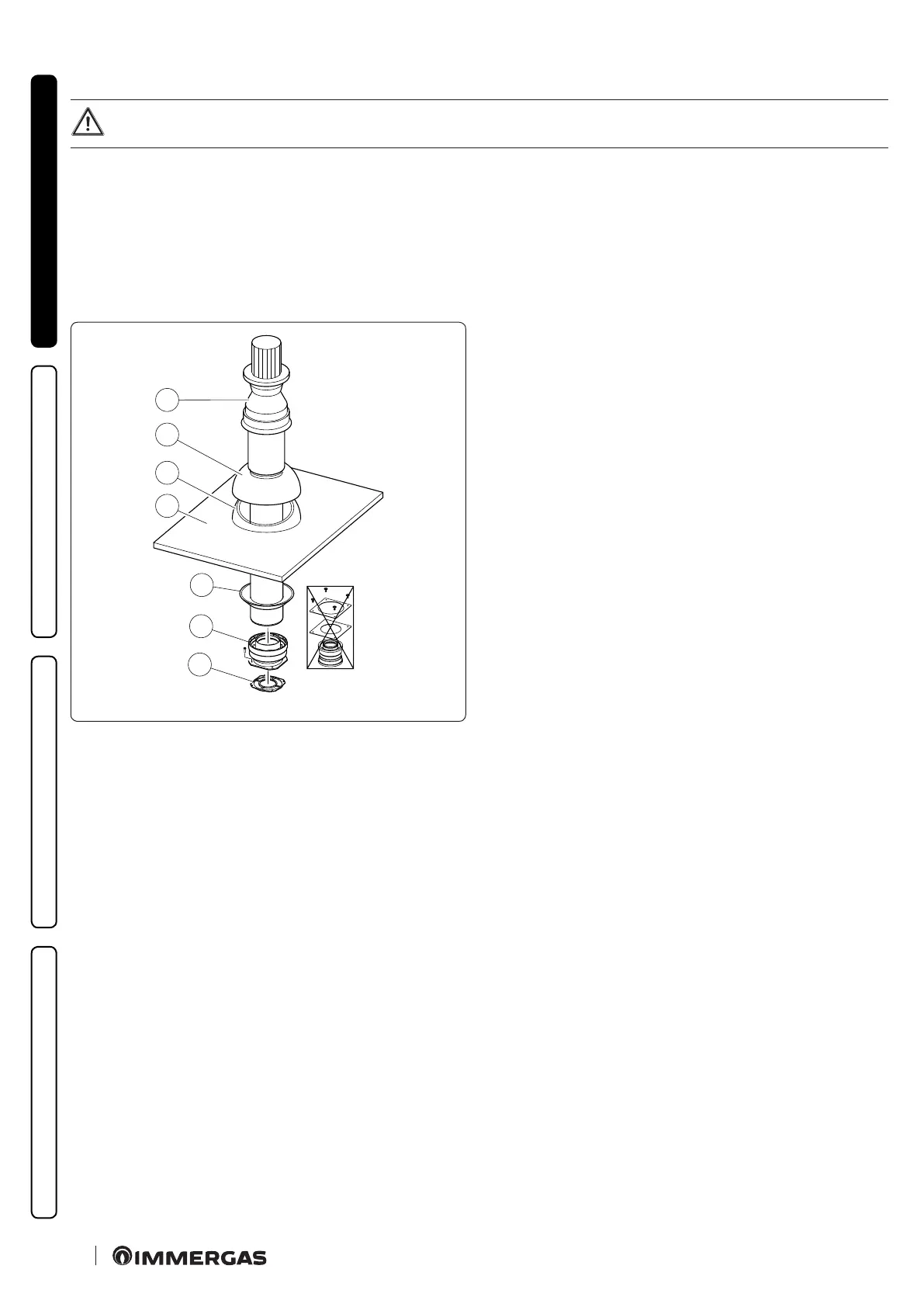

Mounting the vertical kit with aluminium tile Ø 80/125 (Fig. 24)
To install the kit Ø 80/125 one must use the anged adapter kit in order to install the ue system Ø 80/125.
1. Install the concentric ange (2) on the central hole of the appliance, positioning gasket (1) with the circular projections downwards in
contact with the appliance ange.
2. Tighten the concentric ange with the screws in the kit.
3. Replace the tiles with the aluminium sheet (4), shaping it to ensure that rainwater runs o.
4. Position the xed half-shell (5) on the aluminium tile;
5. Insert the intake-exhaust terminal (7);
6. Fit the Ø 80/125 concentric terminal pipe with the male side (smooth) to the female side of the adapter (1) (with lip seals) up to the end
stop, making sure that the wall sealing plate (3) has been tted; this will ensure sealing and joining of the elements making up the kit.
C
33
1
2
3
4
5
6
7
24
e adapter kit includes (Fig. 24):
N°1 Ga ske t (1)
N°1 Adapter Ø 80/125 (2)
e Kit Ø 80/125 includes (Fig. 24):
N°1 Wall sealing plate (3)
N°1 Aluminium tile (4)
N°1 Fixed half-shell (5)
N°1 Mobile half-shell (6)
N°1 Concentric intake/exhaust pipe Ø 80/125 (7)
e remaining kit components must not be used
