1.5 INSTALLATION INSIDE THE RECESSED FRAME OPTIONAL
e boiler is designed for installation inside the Immergas recessed frame (supplied as optional).
e necessary parts for this type of installation (bracket) must also be purchased separately as optional kit.
To install proceed as follows:

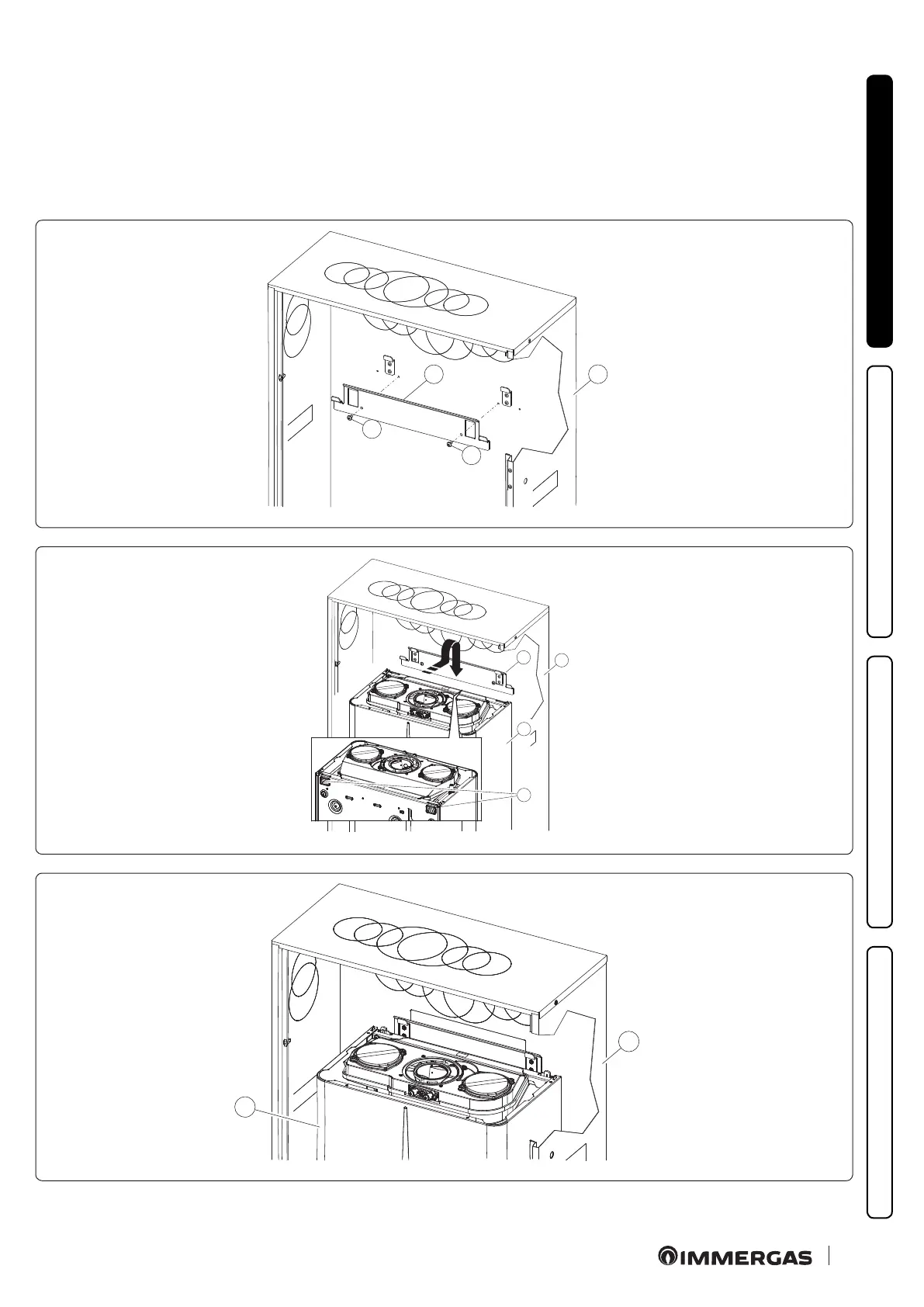

- Install the bracket (2) inside the recessed frame xing it with the screws (3) in the pre-drilled holes (Fig. 4).
- Wall-mount the boiler (4) by inserting the hooks of the bracket (2) in the relative seats (Fig. 5).
- e boiler (4) is now mounted inside the recessed frame (1) (Fig. 6).
