29
INSTALLER
USERMAINTENANCE TECHNICIAN
TECHNICAL DATA
14
15

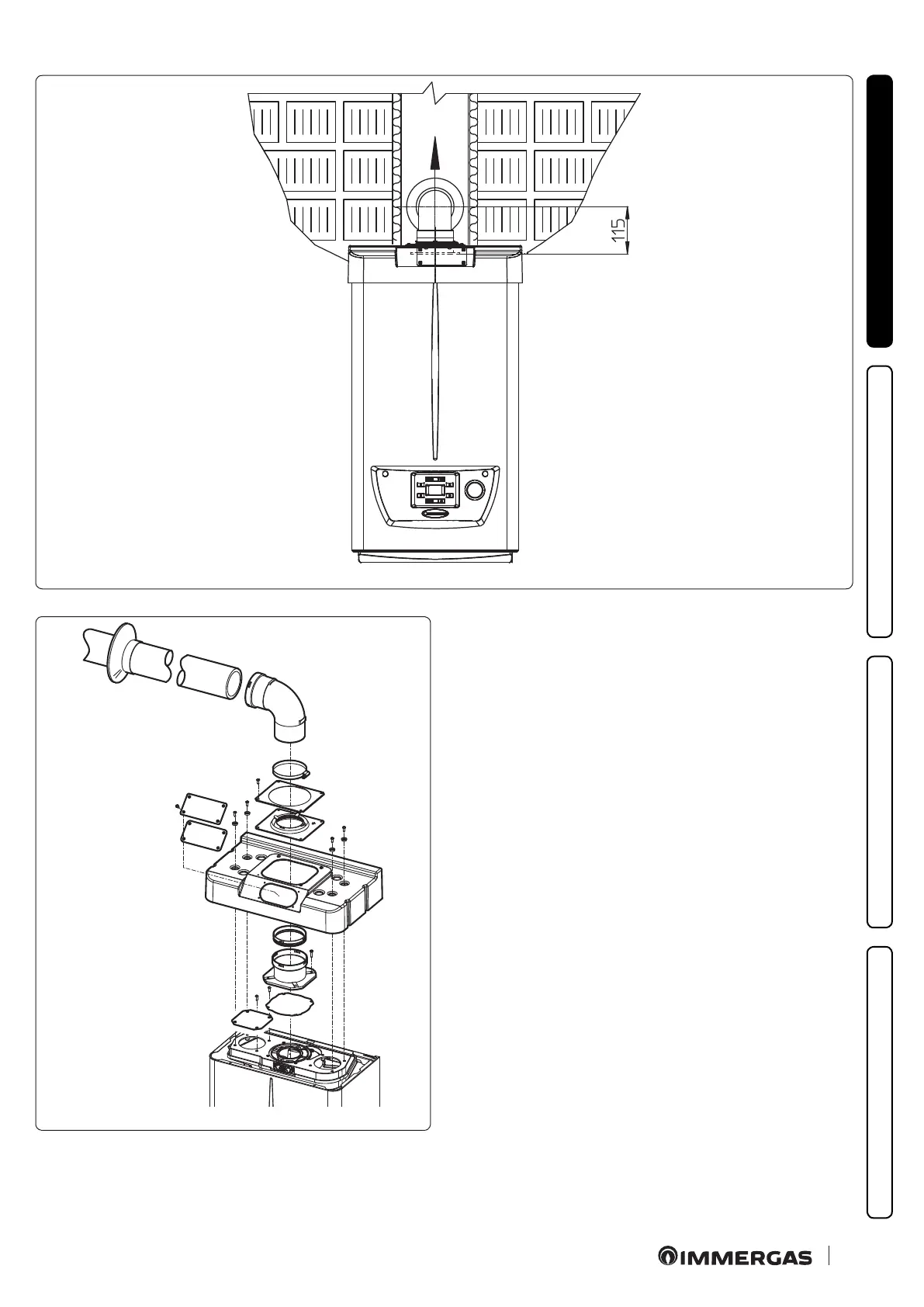

e cover kit includes (Fig. 15):
No.1 ermoformed cover
No.1 Gasket clamping plate
No.1 Gasket
No.1 Gasket tightening clip
No.1 Intake hole covering plate
e terminal kit includes (Fig. 15):
No.1 Gasket
No.1 Exhaust ange Ø 80
No.1 90° bend Ø 80
No.1 Exhaust pipe Ø 80
No.1 Wall sealing plate
