IMT 1015 User Manual

99903514:TELESCOPIC CRANE:
2-19 SECTION 2: MAINTENANCE
2. Procedure 2 (Large valve block only – port tubes removable)
a. Remove bolts that attach the valve block to the cylinder
b. BE AWARE OF TRAPPED PRESSURE BEHIND THE PLUG IN THIS STEP!!
PRESSURIZED OIL MAY CAUSE SERIOUS INJURY!! Turn off fitting connecting port tube to
base end of cylinder (end closest to crane base).
c. Turn off fitting connecting port tube to valve block.
d. Carefully remove port tube that runs from the valve block on the lower boom cylinder to the
base end of the lower boom cylinder, being sure not to damage fittings.
e. Remove fitting from valve block.
f. Install 16” hose assembly with T-fitting (refer below) between block on lower boom cylinder
and base end of lower boom cylinder.
g. Attach pressure gage assembly to T-fitting using 4” hose assembly (refer to figure below).
h. Be sure to tighten all fittings securely.

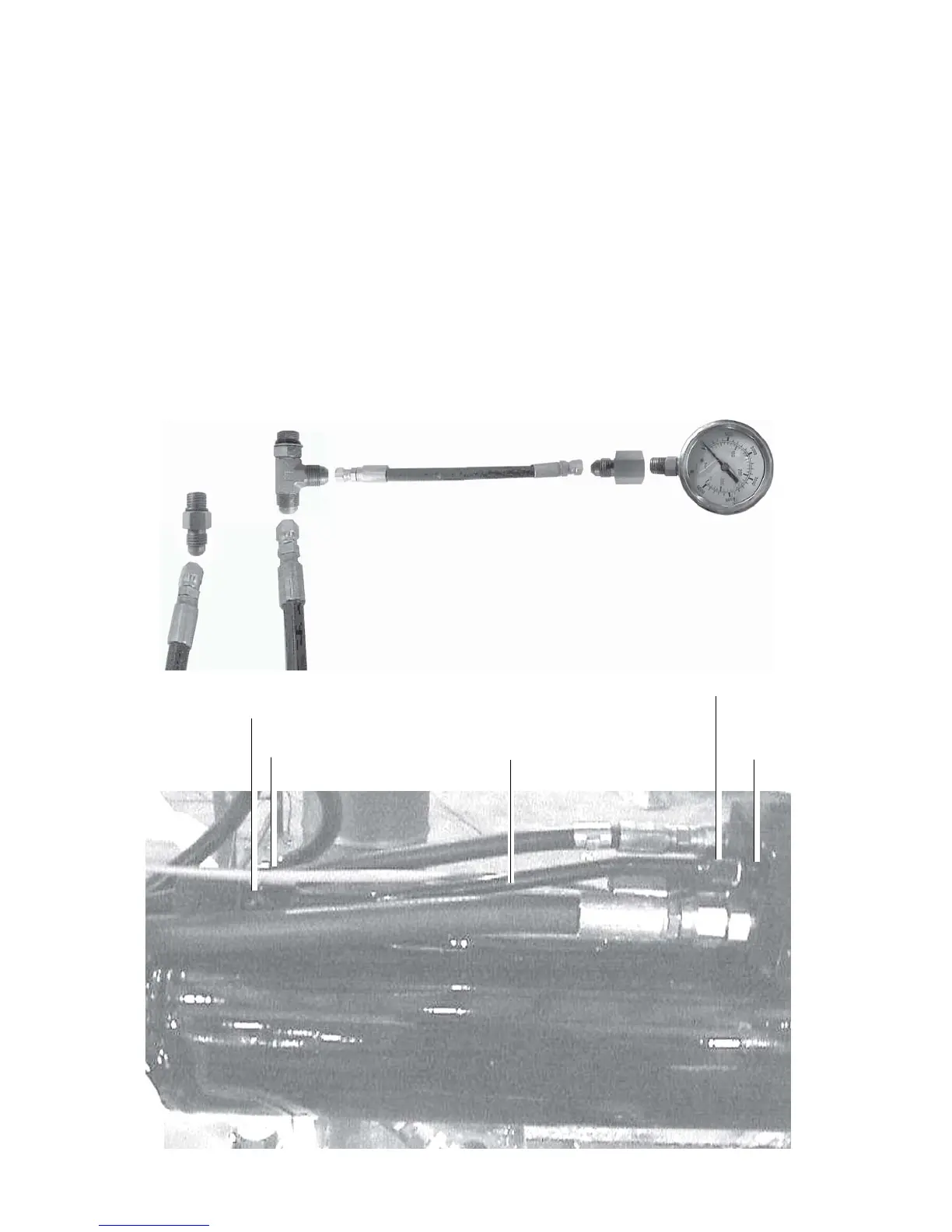

16” HOSE ASSEMBLY WITH T-FITTING & 4” HOSE ASSEMBLY
To
Valve
Block
To
Base
End of
Main
Cylinder
Fitting connecting Port Tube to
Base End of Cylinder
Remove
Port Tube
Fitting connecting Port Tube to Valve
Block
Remove
Fitting on
Valve Block
Remove
Fitting
20030115
